IE-SW-ELB-05-5TX

IE-SW-ELB-05-5TX

Add to wishlistAdded to wishlistRemoved from wishlist 0
  • IE-SW-ELB-05-5TX Covers the most common port combinations with RJ45 and SFP ports for flexible usage. Network availability is strongly increased thanks to Broadcast Storm Protection
  • Support real time communication e.g. in PROFINET networks due to the “Quality of Service” functionality – “PROFINET Conformance Class A”. Very small design for installation in places where space is critical
  • A rotatable DIN-rail-clip allows use at locations offering very limited vertical space such as installation cabinets
IE-SW-ELB-05-5TX
SKU: IE-SW-ELB-05-5TX Category:


Zalo: - Kinh Doanh Online
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978

×



    Gửi Báo Giá Hotline: 0933 719 613

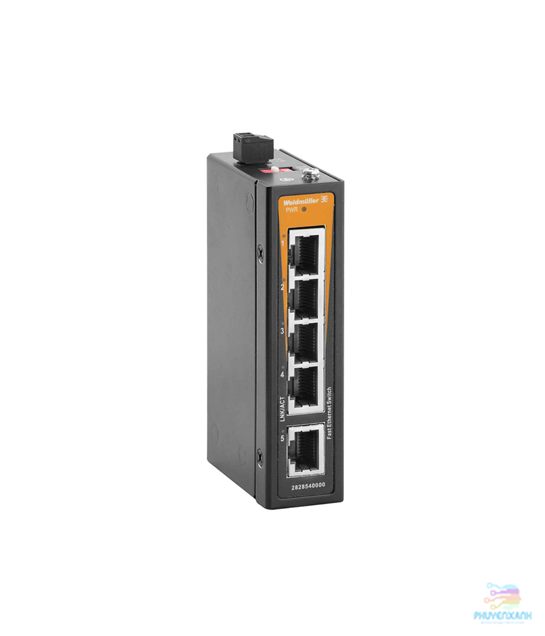

    Weidmuller IE-SW-ELB-05-5TX EcoLine Series B unmanaged switches

    • Covers the most common port combinations with RJ45 and SFP ports for flexible usage
    • Network availability is strongly increased thanks to Broadcast Storm Protection
    • Support real time communication e.g. in PROFINET networks due to the “Quality of Service” functionality – “PROFINET Conformance Class A”
    • Very small design for installation in places where space is critical
    • A rotatable DIN-rail-clip allows use at locations offering very limited vertical space such as installation cabinets
    • The AC voltage input enables use without a switching power supply to save cost in e.g. building automation
    • Plastic-free, handling optimized packaging for fast processing and environmental friendliness

    IE-SW-ELB-05-5TX Datasheet

    VersionNetwork switch, unmanaged, Fast Ethernet, Number of ports: 5x RJ45, IP40, -10 °C…60 °C
    Order No.2828540000
    TypeIE-SW-ELB-05-5TX
    GTIN (EAN)4064675369851
    Qty.1 pc(s).
    Depth64 mm
    Depth (inches)2.52 inch
    Height103 mm
    Height (inches)4.055 inch
    Width26 mm
    Width (inches)1.024 inch
    Net weight135 g
    Storage temperature-40 °C…85 °C
    Operating temperature-10 °C…60 °C
    Humidity5 to 95 % (non-condensing)
    REACH SVHCLead 7439-92-1
    SCIP95f06c58-199a-4ab7-817c-c2503ba62133
    EMC standardsEN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 Vrms
    Free fallAccording to IEC 60068-2-31
    Safety standardUL 61010-1, UL 61010-2-201
    Shockaccording to IEC 60068-2-27
    Vibrationaccording to IEC 60068-2-6
    Humidity5 to 95 % (non-condensing)
    Operating altitude
    Altitude, max.2,000 m
    Notein acc. with UL
    Operating temperature, max.60 °C
    Operating temperature, min.-10 °C
    Storage temperature, max.85 °C
    Storage temperature, min.-40 °C
    Function DIP switch1x for enabling QoS (according to IEEE 802.1p), 1x for enabling/disabling the broadcast storm protection
    LED indicatorPower LED: PWR, Port LED: LNK/ACT, 10/100M (RJ45 port)
    Number of ports5x RJ45
    RJ45 ports10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
    MTBF
    According to StandardTelcordia SR-332
    Operating time (hours), min.488,236 h
    Network traffic filterQuality of Service (QoS)
    Industrial protocol supportPROFINET device acc. to conformance class A
    Current consumption
    Voltage24 V DC
    Current0.12 A
    Overload current protectionYes
    Reverse polarity protectionYes
    Voltage supply12/24/48 V DC, 24 V AC, 1 single input
    Voltage supply range
    Voltage typeDC
    Voltage, min.9.6 V
    Voltage, max.60 V
    Voltage typeAC
    Voltage, min.18 V
    Voltage, max.36 V
    Bandwidth backplane1 Gbit/s
    MAC table size1 K
    Packet buffer size448 kBit
    Housing main materialMetal
    Protection degreeIP40
    SpeedFast Ethernet
    Switchunmanaged
    Type of mountingDIN rail
    Data switchingStore and Forward
    Flow controlIEEE 802.3x flow control
    StandardIEEE 802.3 for 10BASE-T, IEEE 802.3u for 100BASE-TX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS)
    ETIM 6.0EC000734
    ETIM 7.0EC000734
    ETIM 8.0EC000734
    ETIM 9.0EC000734
    ECLASS 9.019-17-01-06
    ECLASS 9.119-17-01-06
    ECLASS 10.019-17-04-02
    ECLASS 11.019-17-04-02
    ECLASS 12.019-17-04-02
    ECLASS 13.019-17-04-02
