UniFi Bridge XG
UniFi Bridge XG wiith 60 GHz wireless bridge with a 10 Gbps SFP+ interface.
- 5 GHz backup radio
- Operational range of up to 500 meters
- 6 Gbps throughput rate
- Additional GbE RJ45 port with PoE++
- Integrated outer diameter alignment LED for easy setup
Managed with the UniFi Network application: Version 6.3 and later.
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×

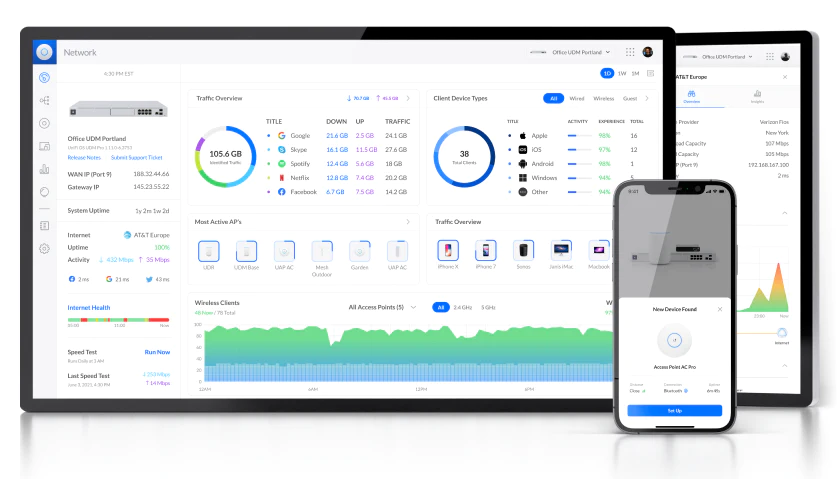

Adopt the UBB-XG in Minutes with Your UniFi Network Application and
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Building-to-Building Bridge XG
| Mechanical | |
|---|---|
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3″) |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Mounting | 60G precision alignment pole mount (Included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5″) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 or 2-pairs (4, 5+; 7, 8-)] |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Throughput rate 5 GHz 60 GHz | 866.6 Mbps 6 Gbps |
| Maximum range | 500+ m (1,640+ ft) |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ad/ay 802.11ac (WiFi 5) |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CA Worldwide | U-NII-1: 5,150 – 5,250 MHz U-NII-2A: 5,250 – 5,350 MHz U-NII-2C: 5,470 – 5,725 MHz U-NII-3: 5,725 – 5,850 MHz 5,150 – 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
