RG-AP820-L (V3)
- RG-AP820-L(V3) Wi-Fi 6 AX3000 Indoor AP
- Indoor scenarios for higher education, government, general education, finance, and business sectors.
- 2.5 Gbps SFP Port, Multi-Gigabit Mesh Networking
- Next-generation AX3000 chip, supporting 160 MHz 2975 Mbps
- Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
- Unified cloud management, intelligent tuning, easy O&M

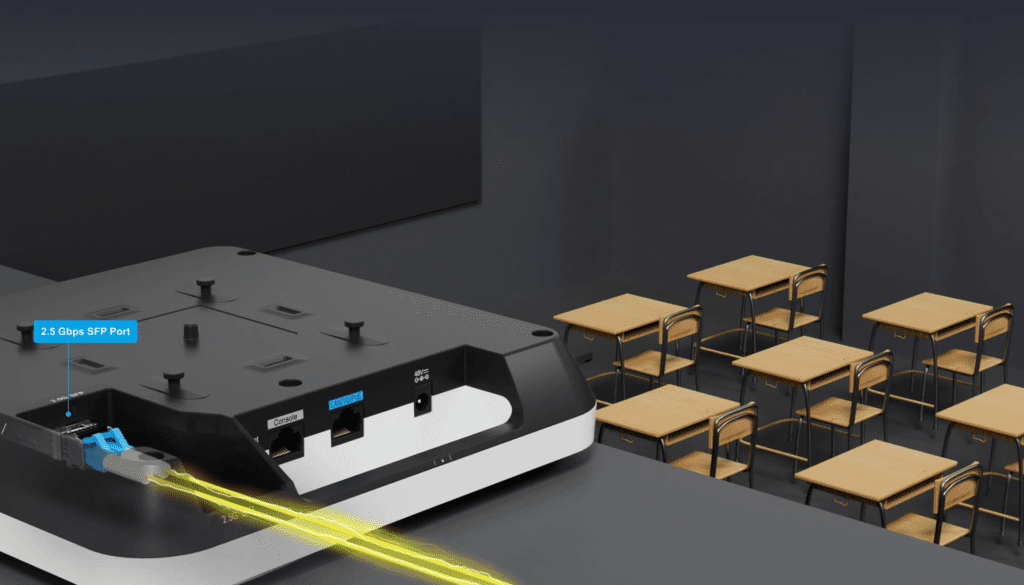

- 2.5 Gbps SFP Port, Multi-Gigabit Connectivity with The 2.5 Gbps SFP port unleashes the performance of bandwidth for multi-gigabit connectivity.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978
Dimensions and Weight | RG-AP820-L(V3) |
Unit dimensions (W x D x H) | 220 mm x 220 mm x 49 mm (8.66 in x 8.66 in x 1.93 in) |
Shipping dimensions (W x D x H) | 507 mm x 319 mm x 278 mm (19.96 in x 12.56 in x 10.94 in) |
Unit weight | Main unit: 0.6 kg (1.33 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
Shipping weight | 1.04 kg (2.29 lbs) |
Mounting | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
Lock option | Kensington lock and securing latch |
Wi-Fi Radio | RG-AP820-L(V3) |
Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
Operating frequencies | Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Country-specific restrictions apply. |
Data rates | Combined peak data rate: 2.975 Gbps 2.4 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160) ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in omnidirectional antenna (two 2.4 GHz antennas and two 5 GHz antennas) |
Max. antenna gain | 2.8 dBi in 2.4 GHz and 3.6 dBi in 5 GHz The downtilt angle for the maximum gain is roughly 30 degrees. With reference to the pattern of each antenna of the MIMO radios, the maximum gain of the effective per-antenna pattern is 2.3 dBi in the 2.4 GHz radio and 2.7 dBi in the 5 GHz radio. |
Max. transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. |
Power increment | Configurable in increments of 1 dBm |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-AP820-L(V3) | ||
Frequency Band and Protocol | Data Rate | Max. Transmit Power per Transmit Chain | Max. Receive Sensitivity per Receive Chain |
2.4 GHz 802.11b | 1 Mbps | 23 dBm | -91 dBm |
2 Mbps | 23 dBm | -91 dBm | |
5.5 Mbps | 23 dBm | -90 dBm | |
11 Mbps | 23 dBm | -87 dBm | |
2.4 GHz 802.11g | 6 Mbps | 23 dBm | -89 dBm |
24 Mbps | 22 dBm | -82 dBm | |
36 Mbps | 22 dBm | -78 dBm | |
54 Mbps | 20 dBm | -72 dBm | |
2.4 GHz 802.11n (HT20) | MCS0 | 23 dBm | -85dBm |
MCS7 | 19 dBm | -67 dBm | |
2.4 GHz 802.11n (HT40) | MCS0 | 23 dBm | -82 dBm |
MCS7 | 19 dBm | -64 dBm | |
2.4 GHz 802.11ax (HE20) | MCS0 | 23 dBm | -85 dBm |
MCS11 | 15 dBm | -58 dBm | |
2.4 GHz 802.11ax (HE40) | MCS0 | 23 dBm | -82 dBm |
MCS11 | 15 dBm | -54 dBm | |
5 GHz 802.11a | 6 Mbps | 23 dBm | -89 dBm |
24 Mbps | 22 dBm | -82 dBm | |
36 Mbps | 22 dBm | -78 dBm | |
54 Mbps | 20 dBm | -72 dBm | |
5 GHz 802.11n (HT20) | MCS0 | 23 dBm | -85 dBm |
MCS7 | 19 dBm | -67 dBm | |
5 GHz 802.11n (HT40) | MCS0 | 23 dBm | -82 dBm |
MCS7 | 19 dBm | -64 dBm | |
5 GHz 802.11ac (VHT20) | MCS0 | 23 dBm | -85 dBm |
MCS9 | 18 dBm | -60 dBm | |
5 GHz 802.11ac (VHT40) | MCS0 | 23 dBm | -82 dBm |
MCS9 | 18 dBm | -57 dBm | |
5 GHz 802.11ac (VHT80) | MCS0 | 23 dBm | -79 dBm |
MCS9 | 18 dBm | -53 dBm | |
5 GHz 802.11ax (HE20) | MCS0 | 23 dBm | -85 dBm |
MCS11 | 16 dBm | -58 dBm | |
5 GHz 802.11ax (HE40) | MCS0 | 23 dBm | -82 dBm |
MCS11 | 16 dBm | -54 dBm | |
5 GHz 802.11ax (HE80) | MCS0 | 23 dBm | -79 dBm |
MCS11 | 16 dBm | -52 dBm | |
5 GHz 802.11ax (HE160) | MCS0 | 23 dBm | -77 dBm |
MCS11 | 16 dBm | -50 dBm | |
Bluetooth Radio | RG-AP820-L(V3) |
Bluetooth | Bluetooth 5.1 |
Antenna type | Onboard omnidirectional antenna |
Max. antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees |
Max. transmit power | 17 dBm (GFSK) 14 dBm (π/4-DQPSK, 8-DPSK) |
Receive sensitivity | –95.5 dBm (DH5) –95 dBm (π/4-DQPSK) –87.5 dBm (8-DPSK) |
Ports | RG-AP820-L(V3) |
Fixed service port | 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation ● Compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE 1 x 2.5GE SFP combo port compatible with 1GE |
Fixed management port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Power Supply and Consumption | RG-AP820-L(V3) |
Input power supply | The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE). Note: ● If both DC power and PoE are available, DC power is preferred. |
Power consumption | Max power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W |
Environment and Reliability | RG-AP820-L(V3) |
Temperature | Operating temperature: –10°C to +50°C (14°F to +122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
Humidity | Operating humidity: 0% to 95% RH (non-condensing) Storage humidity: 0% to 95% RH (non-condensing) |
Environment standard | Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Security regulations | GB 4943.1, IEC 62368-1 |
EMC regulations | EN 300386, GB/T 19286, GB/T 17618 FCC Part 15 |
Radio frequency regulations | FCC Part 15E: 15.407 |
Certifications and Regulatory Compliance | RG-AP820-L(V3) |
Regulatory compliance | FCC Part15 Subpart E (Section 15.407) GB 4943.1 CE Marked, EN 300 328, EN 300 440, EN 301 489, EN301 893, EN 50121, EN 50155, EN 55032, EN55035, IEC/EN 62311, IEC/EN 62368-1 (replacing IEC/EN 60950-1), RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU |
Certifications | Wi-Fi Alliance: ● 2.4 GHz and 5 GHz Spectrum Capabilities ● Wi-Fi CERTIFIED a, b, g, n, ac, ax (6) ● WPA2™-Enterprise 2018-04 ● WPA2™-Personal 2018-04 ● WPA3™-Personal 2019-08 ● WPA™-Enterprise ● WPA™-Personal ● WMM®, Wi-Fi Agile Multiband™ |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Applicable Software Version | RG-AP820-L(V3) |
Applicable software version | RGOS11.9(6)W1B4 or higher |
WLAN | RG-AP820-L(V3) |
Max. number of associated STAs | 256 (up to 128 STAs per radio) |
Max. number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming |
Security | RG-AP820-L(V3) |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK and web authentication QR code-based guest authentication, SMS authentication, MAB authentication (used with the RG-WS series wireless access controller) Data encryption: WPA-TKIP, WPA-PSK, WPA2-AES, WEP (64/128-bit) |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | User isolation Rogue AP detection and containment |
ACL | Dynamic ACL assignment |
CPP | Supported |
NFPP | Supported |
Routing and Switching | RG-AP820-L(V3) |
IP service | Static IPv4 address IPv4 DHCP Client FTP ALG and DNS ALG |
Multicast | Multicast-to-unicast conversion |
IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping IPv6 DHCP Client |
IP routing | IPv4/IPv6 static routing |
VPN | PPPoE Client IPsec VPN |
Management | RG-AP820-L(V3) |
Network management | SNMPv1/v2c/v3 Fault inspection and alarm Information statistics and logging |
Network management platform | Ruijie Cloud Web-based management (Eweb) |
User access management | Telnet, SSH, and TFTP-based management |
Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
Cloud, Making Your Business Easy
| Model | Description |
| RG-AP820-L(V3) | Wi-Fi 6 dual-radio indoor wireless access point Up to four spatial streams Data rate of up to 2.975 Gbps Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards Fat/Fit/Cloud mode switchover IEEE 802.3af-compliant (PoE) power supply and DC power supply |
| RG-E-120(GE) | PSE with 1 x GE port compliant with IEEE 802.3af standard (PoE) |
