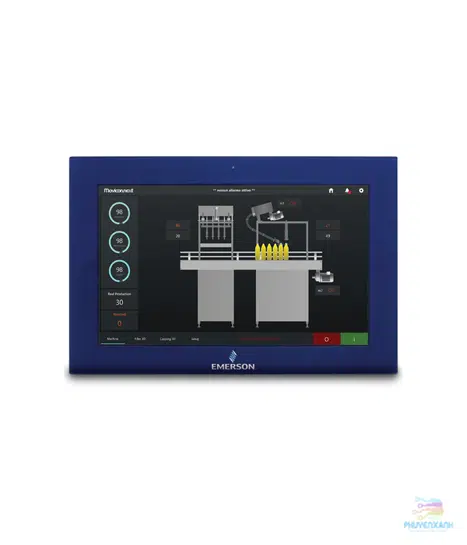

PACSystems™ RXi HMI with 12″ Widescreen
- PACSystems™ RXi HMI with 12″ Widescreen next generation visualization with Movicon WebHMI at the core of the RXi HMI, ready to operate out of the box
- IIOT Ready with OPC UA and MQTT protocols, robust toolsets and graphic packages, and tools for analysis
- Easily swap between screen size options of 12″ to 24″ in a widescreen format (12″ and 15″ models also offer outdoor Sunlight Readable (SLR) screens)
- Effectively operate in temperatures as high as 65 degrees C and as low as -20 degrees C with the capability to operate indoors or outdoors
- IP66 rated screens that protect against dust, moisture,and even direct water jets
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Next Generation Visualization
PACSystems™ RXi HMI is the perfect machine visualization solution to help your customers drive improvement in operational performance and fully leverage the skill set of today’s industrial workforce. With vivid, realistic graphics and smartphone-like usability the PACSystems RXi HMI makes your machine easy to operate from day one. Collaboration and decision making will be faster for your customer because their entire team can see the same machine visualization as the machine operator, from anywhere, on any device. Plus analyzing the past and troubleshooting current issues are simplified with pre-loaded user-friendly data analytics software. The PACSystems RXi HMI is IIOT ready with extensive protocol support, OPC-UA for better data contextualization, and MQTT for easy cloud connectivity. It is also constructed to shield your customers from future risks, both digital and physical, in the harsh reality of industrial environments.
Operate with Ease
Customers will find your machine easier to operate thanks to the realistic and vivid graphics you can easily generate on the PACSystems RXi HMI. They also will find the multi-touch screen operation works just like a smartphone, making it a snap to learn for new operators. Unlike some alternatives, the PACSystems RXi HMI is constructed using Projected Capacitive Touch (PCT/PCAP) screen technology so you can deliver higher brightness and clarity as well as ten-point touch sensitivity. Plus, on our outdoor options, glare is significantly reduced, thanks to the optically bonded and UV protected glass screens, so your machine’s display is always easy to read regardless of the lighting environment.
Collaborate from Anywhere
When it comes to the day-to-day operation of your machine, faster collaboration and decision making can really help drive your customers performance. With the PACSystems RXi HMI you can easily provide your customer’s entire management and maintenance teams the ability to interact with the same intuitive display the operator has at the machine – securely,
Shield from Harsh Environments
The PACSystems RXi HMI also shields your machine interface against both digital and physical risks across a very wide range of customer environments. The RXi HMI is designed in accordance with the IEC 62443 Global Automation Cybersecurity Standards to support your customers overall digital security strategy. The PACSystems RXi HMI offers premium protection in wet applications with certifications

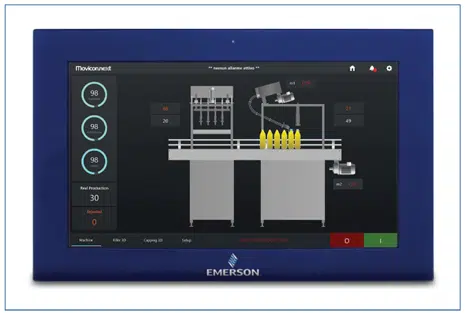

PACSystems™ RXi HMI
Instantly, and remotely from anywhere. So, the team can collaborate and problem solve even if they are not together. PACSystems RXi HMI deploys HTML5 pages representing the display screens as created. Clients are based on web browsers and can be local to the device such as the HMI control panel, or remote such as a PC or mobile device. All the graphics are automatically converted to scalable vector graphics to dynamically display, as predefined in the project, in local client instances using the HTML5 browser. With PACSystems RXi HMI, a virtually unlimited number of people can visualize the machine from anywhere with the same interface and same features.
IIOT Ready: Analyze, Troubleshoot and Diagnose Effectively
Your customer will also value the faster access to data based operational insights to maximize their OEE. PACSystems RXi HMI comes with a robust, preloaded robust tool sets and graphics package placing the operational insights your customers need at their fingertips. A Data Trending Tool provides them a clear snapshot of productivity and quality. The SQLite Database tool and PAC Analyzer help your customer troubleshoot problems and minimize downtime. Plus, through the support of protocols such as OPC-UA and MQTT the PACSystems RXi HMI enables easy communication for cloud-based services and better data contextualization.
for both high pressure water jets and Marine applications. It also is approved for use in hazardous material applications as well as across a very wide range of temperatures – -20°C to +65°C. Additional protection throughout the lifetime of the device is provided by chemical, impact, scratch, and dust resistance. The PACSystems RXi HMI is rugged, reliable, and secure in the harshest industrial environments.
PACSystems™ RXi HMI with 12" Widescreen (4GB RAM, 128GB SSD)
Part Number: IC760CSW12CDA
Touch Screen: Projected Capacitive Touch (PCT/PCAP), Multi-touch (10-point)
Status Indicator: Tri-color LED
Operating System: Windows 10 IOT Enterprise LTSC
Certifications: UL, CE, FCC, RoHS, ATEX, IECEx
Marine: ABS, BV, DNV GL, LR
UL Listed US/CAN HazLoc: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1
RAM: 4GB
SSD: 128GB
