IAP-109

The RAP-100 series also offers a wide range of enterpriseclass features, including role-based network access, policybased forwarding, and Adaptive Radio Management (ARM),
which optimizes Wi-Fi client performance and ensures that Aruba APs stay clear of interference. At locations that require greater coverage, the RAP-100 can join an Aruba Instant WLAN cluster. Simply install additional RAP-100s or any Aruba Instant AP and the entire cluster is managed as one. If one Aruba Instant AP fails, another AP automatically takes over with no disruption. With a wireless data rate up to 300 Mbps in the 2.4-GHz and 5-GHz radio bands, the RAP-100 series has one 10/100/1000BASE-T Ethernet uplink, one 10/100BASE-T local Ethernet port and one USB port to connect to 3G and 4G networks.
– VPN configuration functionality enables the Instant
AP to create a single VPN tunnel to an Aruba Mobility
Controller in the data center. The Mobility Controller
acts solely as a VPN end-point and does not supply the
Instant AP with any configuration.
WIRELESS RADIO SPECIFICATIONS
• AP type: Dual-radio, dual-band 802.11n indoor
• Software-configurable dual radio supports 2.4 GHz and
5 GHz
• 2×2 MIMO with two spatial streams and up to 300 Mbps
wireless data rate per radio
• Supported frequency band (country-specific
restrictions apply):
– 2.4000 GHz to 2.4835 GHz
– 5.150 to 5.250 GHz
– 5.250 to 5.350 GHz
– 5.470 to 5.725 GHz
– 5.725 to 5.875 GHz
• Available channels: Managed by Aruba Instant or
Mobility Controller, depending upon the configured
regulatory domain
• Supported radio technologies:
– 802.11b: Direct-sequence spread-spectrum (DSSS)
– 802.11a/g/n: Orthogonal frequency-division
multiplexing (OFDM)
– 802.11n: 2×2 MIMO with two spatial streams
• Supported modulation types:
– 802.11b: BPSK, QPSK, CCK
– 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

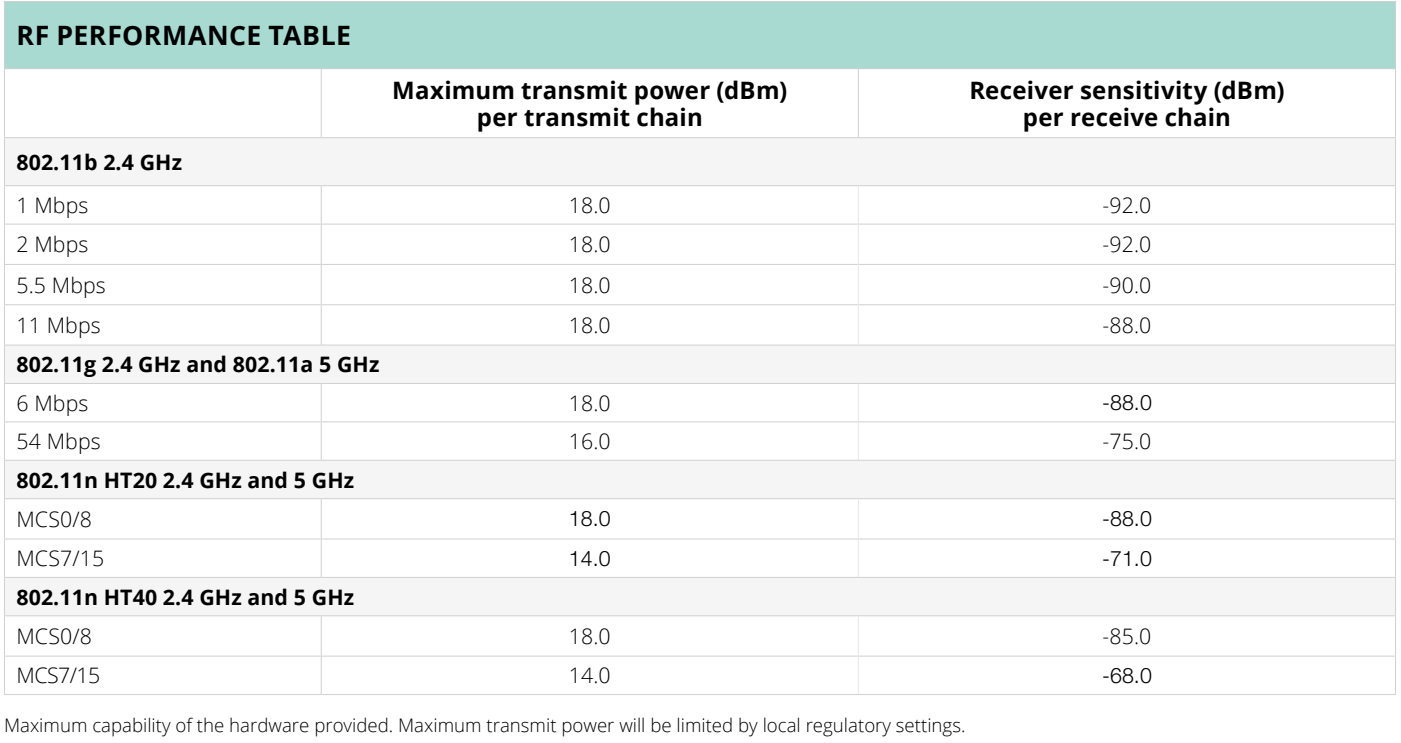

• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate) transmit power (limited by local
regulatory requirements):
– 2.4-GHz band: +21 dBm
– 5-GHz bands: +21 dBm
• Advanced Cellular Coexistence (ACC) feature to effectively
deal with interference from cellular systems
• Maximum ratio combining (MRC) for improved
receiver performance
• Cyclic delay diversity (CDD) for improved downlink
RF performance
• Short guard interval for 20-MHz and 40-MHz channels
• Space-Time Block Coding (STBC) for increased range and
improved reception

MOUNTING
• Desktop (vertical): Using stand supplied with product
• Wall (vertical): Using optional wall mount accessory
• Ceiling (horizontal, not recommended for RAP-109): Using
optional ceiling mount accessories

MECHANICAL
• Dimensions (unit):
– Excluding desk mount:
> 160 mm (W) x 43 mm (D) x 160 mm (H)
> 6.30” (W) x 1.69” (D) x 6.30” (H)
– With desk mount:
> 181 mm (W) x 72 mm (D) x 160 mm (H)
> 7.13” (W) x 2.83” (D) x 6.30” (H)
• Weight (unit):
– Excluding desk mount: 385 g (13.6 oz)
– With desk mount: 460 g (16.2 oz)
• Dimensions (shipping)
– 230 mm (W) x 220 mm (D) x 90 mm (H)
– 9.06” (W) x 8.66” (D) x 3.5” (H)
• Weight (shipping): 750 g (1.65 lbs)

ENVIRONMENTAL
• Operating:
– Temperature: 0° C to +40° C (+32° F to +104° F)
– Humidity: 5% to 93% non-condensing
• Storage and transportation:
– Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY
• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2
For more country-specific regulatory information and
approvals, please see your Aruba representative.
