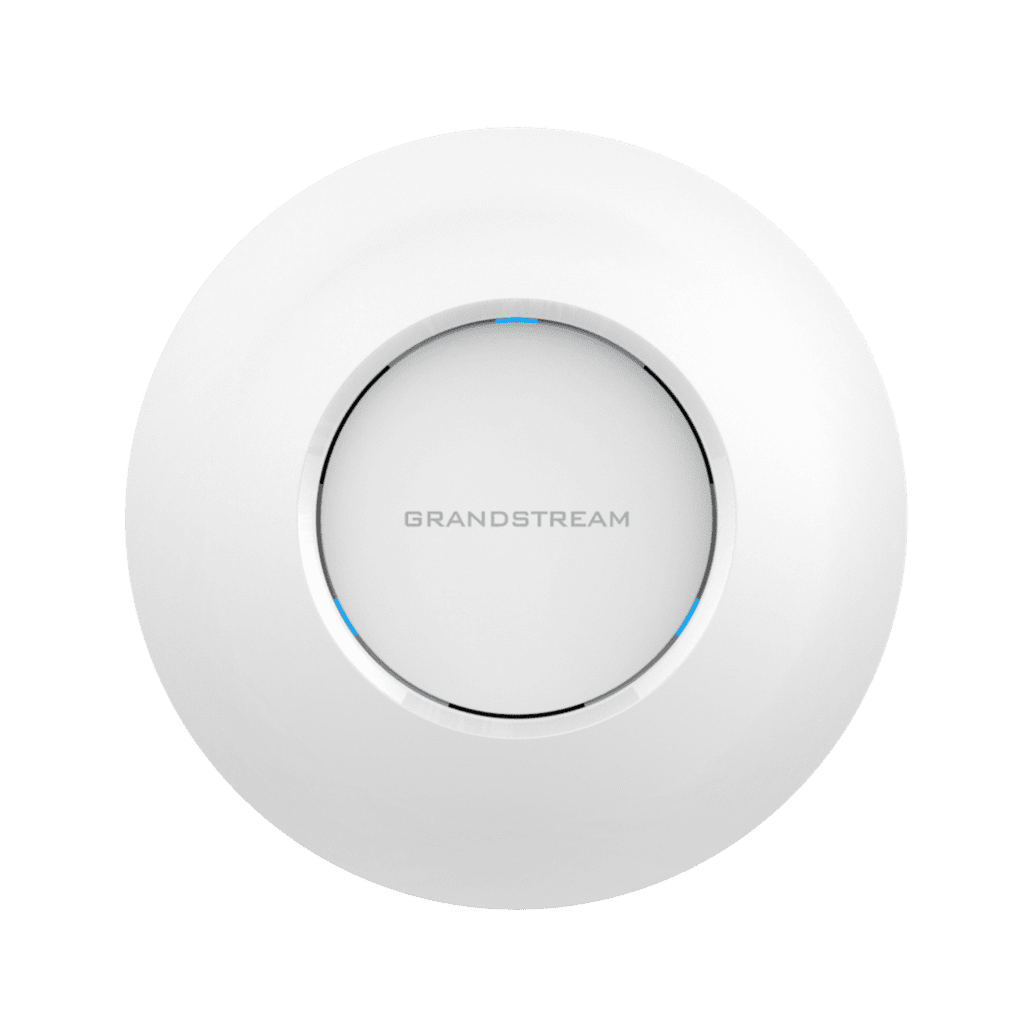

GWN7600
Designed for small to medium sized businesses, multiple floor offices, commercial locations and branch offices, the GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point. It supports up to 1.27GBps, over 450 concurrent WiFi clients and up to a 165 meter coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2×2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium wireless network deployments with medium-to-high user density.
Mid-Tier 802.11ac Wave-2 Wi-Fi Access Point
- 1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 2×2:2 MU-MIMO with beam-forming technology
- Support 802.3af Power-over-Ethernet (PoE)
- Support 450+ concurrent WiFi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Up to 165-meter coverage range
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network
GWN7600 Datasheet
WI-FI STANDARDS | IEEE 802.11 A/B/G/N/AC (WAVE-2) |
|---|---|
ANTENNAS | 2x 2.4 GHz, gain 3 dBi, internal antenna |
WI-FI DATA RATES | IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
FREQUENCY BANDS | 2.4GHz radio : 2.400 – 2.4835 GHz 5GHz radio: 5.150 – 5.250 GHz, 5.725 – 5.850 GHz (FCC, IC, RCM) |
CHANNEL BANDWIDTH | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
WI-FI AND SYSTEM SECURITY | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and criticaldata/control lockdown via digital signatures, unique security certificate and random default password per device |
MU-MIMO | 2×2:2 2.4GHz (MIMO) |
COVERAGE RANGE | Up to 541 ft. (165 meters)*coverage range can vary based on environment |
MAXIMUM TX POWER | 5G: 22dBm (FCC) / 20dBm (CE) 2.4G: 22dBm (FCC) / 17dBm (CE)*Maximum power varies by country, frequency band and MCS rate |
RECEIVER SENSITIVITY | 2.4G 5G |
SSIDS | 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) |
CONCURRENT CLIENTS | 450+ |
NETWORK INTERFACES | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
AUXILIARY PORTS | 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock |
MOUNTING | Indoor wall mount or ceiling mount, kits included |
LEDS | 3 tri-color LEDs for device tracking and status indication |
NETWORK PROTOCOLS | IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QOS | 802.11e/WMM, VLAN, TOS |
NETWORK MANAGEMENT | Embedded controller can manage up to 30 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
POWER AND GREEN ENERGY EFFICIENCY | DC Input: 24VDC/1A Power over Ethernet (802.3af) compliant Maximum Power Consumption:13.8W |
ENVIRONMENTA | Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
PHYSICAL | Unit Dimension: 180.4mm x 180.4mm x 40.8mm Unit+Mounting Kits Dimension: 180.4mm x 180.4mm x 48.8mm Entire Package Dimension: 228.5 x 220 x 79mm; Entire Package Weight: 854g |
PACKAGE CONTENT | GWN7600 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide |
COMPLIANCE | FCC, CE, RCM, IC |
