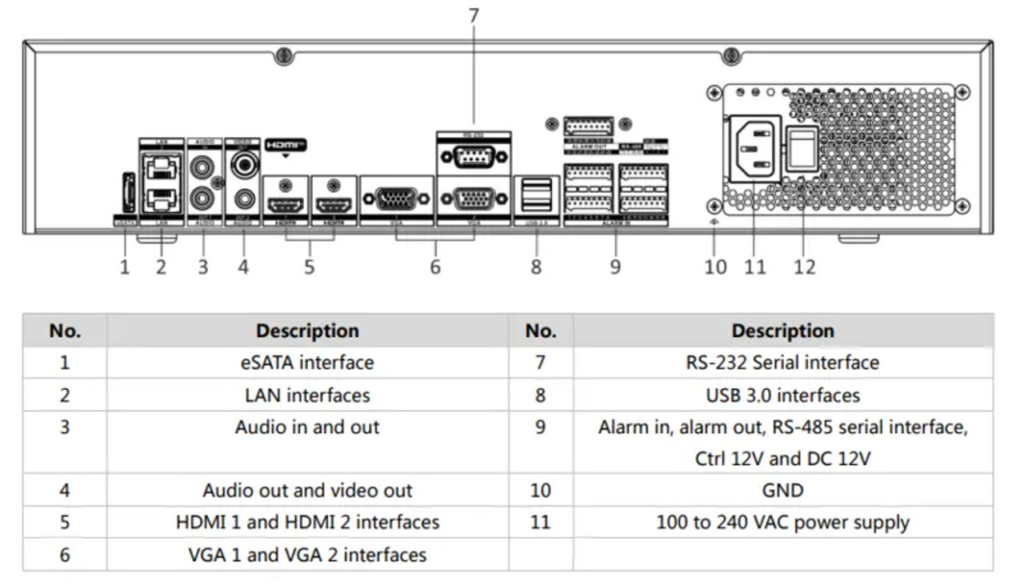

Hikvision DS-9616NI-M8 with 16-ch 2U 4K NVR
DS-9616NI-M8 Datasheet
Video And Audio
- IP Video Input: 16-ch
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- HDMI 1 Output: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
- HDMI 2 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. - VGA 1 Output: 1920 × 1080/60 Hz
- VGA 2 Output: 1920 × 1080/60 Hz
- Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
- Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
- SATA: 8 SATA interfaces supporting hot-plug
- ESATA: 1 eSATA interface
- Capacity: Up to 16 TB capacity for each disk
- Alarm In/Out16/9
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9. - DC 12V12 VDC, 1 A power output
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 50 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Chassis: 2U chassis
- Dimension (W × D × H): 445 × 465 × 93 mm ( 17.5″× 18.3″ × 3.7″)
- Weight: ≤ 10 kg (without HDD, 22 lb.)
Certification
- Obtained Certification: CE, FCC
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
