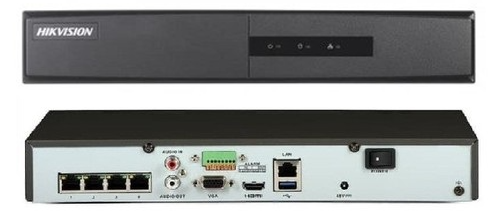

DS-7104NI-Q1/4P/M

Video And Audio

• IP Video Input: 4-ch
  Up to 6 MP resolution
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA simultaneous output

Decoding

• Decoding Format: H.265+/H.265/ H.264+/H.264
• Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback: 4-ch
• Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type: Video, Video & Audio

Network

• Remote Connection: 16
• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 36 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 6TB capacity for each disk
• Alarm In/Out: N/A
• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 48 VDC, 1 A
• Consumption: ≤ 10 W
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight: ≤ 1 kg (2.2 lb)

Certification

• CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
