cnWave V5000
- cnWave V5000 support 60GHz
- Frequency Range : 57 to 66 GHz in a single SKU
- Channel Width : 2.16 GHz, 4.32 GHz
- Carrier Bonding : Up to 2 adjacent channels
- Mode of Operation : PMP or Mesh, PTP
- Channel Access : TDMA/TDD
- Ethernet Interface : 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:

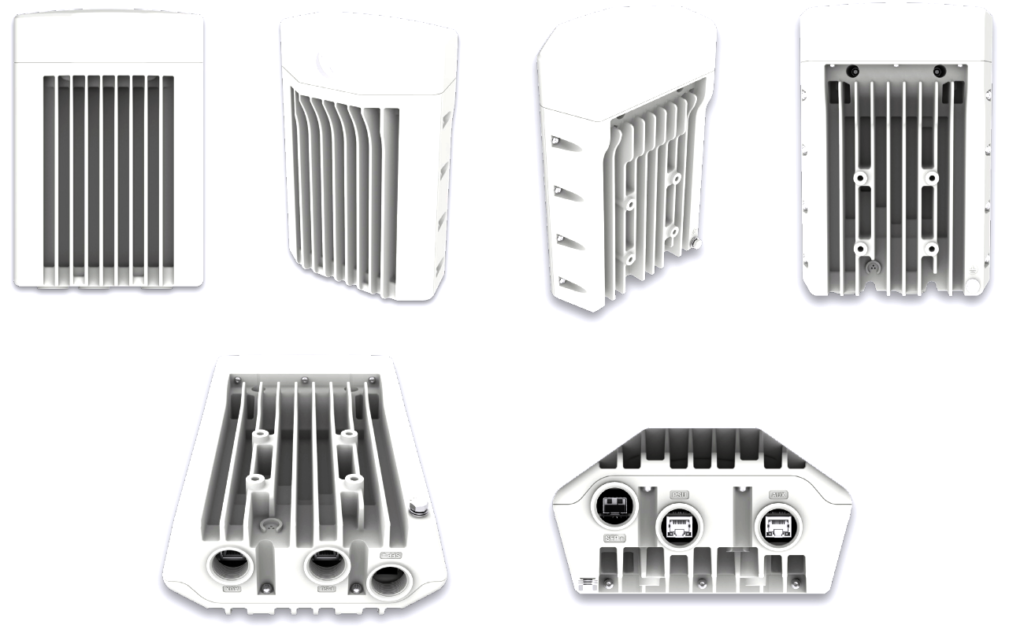

- 0989 544 978Cambium cnWave 60 GHz V5000 Distribution Node
V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to 30 devices, which includes up to four distribution nodes. V5000 can be used for PTP, PMP and mesh configurations.
Designed for high-speed and high-density deployments
Cambium Networks’ cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/ or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas. V5000 is featured with two sectors covering up to 280º with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP and PMP configurations.

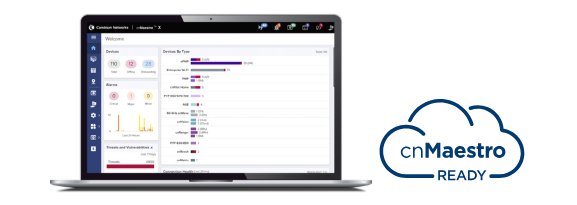

Cloud and on-premises management
cnWave 60 GHz operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.
C600500A004B Datasheet
| Spectrum | |
| Frequency Range | 57 to 66 GHz in a single SKU |
| Channel Width | 2.16 GHz, 4.32 GHz* |
| Carrier Bonding* | Up to 2 adjacent channels |
| Mode of Operation | PMP or Mesh, PTP |
| Interface | |
| Channel Access | TDMA/TDD |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ |
| Ethernet | |
| Protocol Supported | IPv4, IPv6 |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
| MTU | 4,000 bytes |
| VLAN* | 802.1ad (QinQ), 802.1Q with 802.1p priority |
| QoS* | 4 Level QoS, DSCP and VLAN Tag |
| Security | |
| Encryption | 128-bit AES |
| Firmware Security | Signed Firmware Images |
| Performance | |
| Modulation & Coding Schemes | MCS-0 (BPSK) to MCS-12 (16-QAM) |
| Latency | < 1 ms |
| Maximum EIRP | 38 dBm |
| Antenna | |
| Gain | 22.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | +/- 140º azimuth, +/- 20º elevation |
| Beam Width | 12º |
| Powering | |
| Type | Passive PoE (42-57 V) |
| Power Consumption | 60 W with AUX PoE Out in use, 35 W without AUX PoE Out in use |
| Physical | |
| Environmental | IP66/67 |
| Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
| Mean Time Between Failure | > 40 years |
| Weight | < 4 kg (8.8 lbs) |
| Dimensions W x H x D | 280 mm x 185 mm x 102 mm (11.0 in x 7.3 in x 4.0 in) |
| Wind Survival | 200 km/h (124 mi/h) |
