BC-IE503DW-4M2
• BC-IE503DW-4M2 with Binocular stitching 4MP (3840*1080), super wide angle coverage, high-definition image effect
• Max. 3840*1080@20fps(50Hz/60Hz)
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 170.00°
• Support RTSP&Onvif(17.2 with profile S)
Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT,
D-WDR,Mirror, Image Flip etc. Functions
• WIFI 2.4G （Optianal）
• 4mm fixed Lens*2
• IR range: (IR: 20m) + (White Light :15m)
• Water-proof: IP66
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×

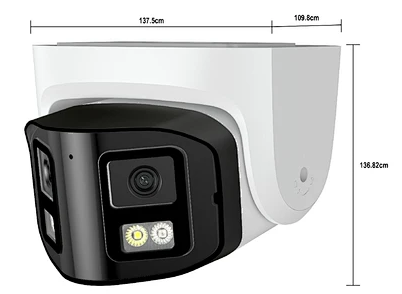

BesView IP Camera BC-IE503DW-4M2 4MP HD ColorHunter Wide Angle Fixed Turret
BC-IE503DW-4M2 Datasheet
| Image Sensor: | 1/2.9” Cmos Sensor |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/10,000 s |
| Lens: | 4mm fixed Lens*2 |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Human Body Detection | Support |
| Privacy Protection | Support(4 Self-customized Areas) |
| Wather-Proof: | IP66 |
| Illumination for Infrared Switching: | 1~5Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 4PCS LEDS//(IR: 20m) + (White Light :15m) |
| Compression Standard | |
| Video Compression: | H.265/H.264 |
| Video Bit Rate: | 512Kbps~12288Kbps(main stream H.265) 64kbps~1024Kbps(sub stream H.265) |
| Audio Compression: | G711U/G711A/AAC |
| Dual Streams: | Yes |
| Triple Streams: | No |
| Image | |
| Max. Image Resolution: | 3840*1080@20fps(4MP) |
| Frame Rate: | 4MP (3840*1080), Max 20fps.MAX main stream 1280*360, Max 20fps .MAX sub stream |
| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | EXT/Day/Night/Auto/Time |
| Audio | |
| Line IN/line OUT | Support（1ch） |
| Volnume adject | Yes |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS,IP Search(Support P2P, NVR, NVS etc.) |
| General Function: | Anti-Flicker, heartbeat, password protection, privacy mask, Watermark |
| System Compatibility: | ONVIF(17.2 with profile S) |
| On-line Viewing | Max. Support 2 Users Simultaneously |
| WIFI function | Built-in（optional） |
| Protocol standard | IEEE 802.11b/g/n |
| Frequency Range | 2.402GHz – 2.483Ghz |
| Channel bandwidth | 20/40MHZ |
| Safety | WPA/WPA2，WPA-PSK/WPA2-PSK，WPS |
| Transmission distance | 100 meters (without obstacles) |
| Cloud storage | Yes |
| antenna | external 5dB antenna (SMA socket) |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| Alarm in/out interface： | Support（1ch） （Optional） |
| SD card interface | Support TF card（micro TF card，up to 256G） |
| DC Power Plug: | DC Power Femate Interface |
| General | |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 V DC ± 10%/PoE(Optional) |
| Power Consumption: | 12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on) |
