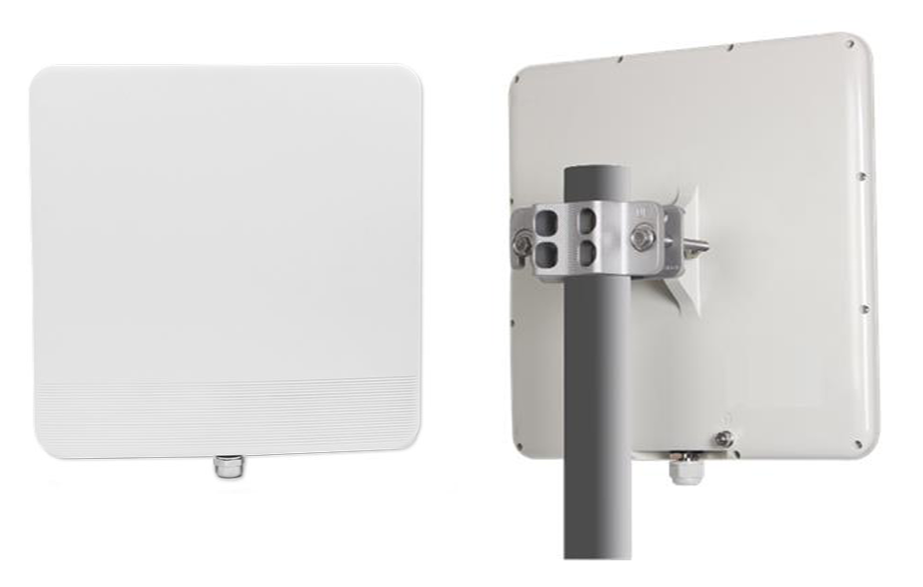

Altai BX500-N
• Up to 500 Mbps PtP radio unit
• 22 dBi integrated antenna
• 4.9 – 6.0 GHz
• Up to 40 km
• Built-in GPS
• Dying gasp
• Dynamic channel bandwidth
• 350K packets-per-second
• Supports Jumbo frames
• Operates also as PtMP SU
• Highly durable – IP67
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Altai BX500-N PtP Unit
Cost-Effective Outdoor PtP Radio Unit
Altai BX500-N is an attractively priced 500 Mbps Point-to-Point outdoor radio unit with an integrated antenna, that operates in the 5 GHz band.
The BX500-N includes a field proven air interface that ensures best-in-class link connectivity in harsh spectrum for backhaul and access as well as wireless CCTV and additional applications that require robust connectivity. For this purpose, Altai BX500-N was designed to deliver an impressive packet switching power as well as jumbo frame support to guarantee full capacity, regardless of traffic packet size.
Enabling minimum TCO, Altai BX500-N is extremely reliable and durable, complying with IP67 standard. The unit features a built-in GPS for TDD synchronization. The unit also can be used as a subscriber unit for the BX600 series, enabling an initial lowcost deployment using PtP while seamlessly migrating to PtMP with network growth.
» Up to 500 Mbps PtP radio unit
» 22 dBi integrated antenna
» 4.9 – 6.0 GHz
» Up to 40 km
» Built-in GPS
» Dying gasp
» Dynamic channel bandwidth
» 350K packets-per-second
» Supports Jumbo frames
» Operates also as PtMP SU
» Highly durable – IP67
Altai Bx500-n Datasheet
Architecture
• Outdoor unit with integrated antenna and built-in GPS
Network Interface
• Data Interface 1 x 1 GE RJ45 Port with PoE PD
• PoE and ODU Interfaces Outdoor CAT-5e; Maximum Cable Length: 75m for 1000Base-T
Radio
• Wireless Topology PtP Unit / PtMP Subscriber Unit
• Maximum Capacity 500 Mbps Net Aggregate Throughput (Up to 250 Mbps per Direction)
• Range Up to 40 km
• Frequency 4900 MHz – 6090 MHz *
• Channel Bandwidth Configurable: 10, 20, 40, 80 MHz *
• Dynamic Bandwidth Selection 20/40/80 MHz
• Modulation OFDM (BPSK/QPSK/16QAM/ 64QAM/256 QAM)
• Error Correction FEC k = 1/2, 2/3, 3/4, 5/6
• Adaptive Modulation/Coding Supported
• Duplex Technology TDD
• DFS Supported *
• Antenna Modes MIMO 2×2, Diversity, Adaptive MIMO/Diversity
• Dynamic Bandwidth Mgmt. Committed Information Rate (CIR) and Best Effort Service Level (in PtMP Mode)
• Nomadic Mode Supported (in PtMP Mode) • Maximum TX Power 26 dBm *
• Encryption AES128
• TDD Intra-Site Synchronization Supported via Ethernet, Built-in GPS Receiver **
• Uplink/Downlink Allocation Configurable: Symmetric or Asymmetric
Antenna
• Integrated Antenna
• Gain 22 dBi
• VSWR 2.0: 1
• 3 dB Azimuth Beamwidth 10° (Typical)
• 3 dB Elevation Beamwidth 10° (Typical)
• Polarization Dual Linear (Vertical and Horizontal)
• Sidelobes Level -12 dB (Typical)
• Cross Polarization -25 dB (Typical)
• F/B Ratio 25 dB
• Port-to-Port Isolation 30 dB (Typical)
• Lightning Protection DC Grounded
Networking
• QoS Packet Classification to 4 Priority Queues according to 802.1P or Diffserv
• VLAN Support 802.1Q, QinQ, 4094 VLANs
• MTU Size Up to 9216 bytes ***
• ODU Management IPv4/IPv6 Dual-Stack; SNMPv1, SNMPv3; HTTP/HTTPS using Web Browser
• Dying Gasp Notification Supported (for Remote PtP Unit)
• 802.1x Supported (for PtMP Mode) • Option 82 Supported (for PtMP Mode)
• DHCP Filtering Supported (for PtMP Mode)
• IGMP Snooping Supported (for PtMP Mode)
• PPPoE Filtering Supported (for PtMP Mode)
• RADIUS Authorization Supported (for PtMP Mode)
• RADIUS User Authentication Supported
• Syslog Supported
Physical Specification
• Dimension 325 (w) x 325 (h) x 64 (d) mm
• Weight 2 kg
Physical Specification
• Dimension 325 (w) x 325 (h) x 64 (d) mm
• Weight 2 kg
Environmental Specification
• Operating Temperature: -35 °C to 60 °C • Humidity 100% Condensing
• Enclosure Protection: IP67 per EN/IEC 60529, NEMA Type 4 Enclosure
Regulatory Compliance Radio
• USA FCC 47CFR Part 15.407
• EU ETSI EN 301 893; ETSI 302 502
Safety
• USA UL/CSA-C22.2 62368-1, UL/CSA-C22.2 60950-22
• EU EN/IEC 62368-1, EN/IEC 60950-22
EMC
• USA FCC 47CFR Part 15 Subpart B, Class B
• EU ETSI EN 301 489-1, ETSI EN 301 489-4, ETSI 301 489-17
Product Ordering Information
BX500-N (Part No.: AT-2954-6HC5)
• BX500-N PtP Unit • Mounting Kit
• IP67 Cable Gland Optional Accessories
• PoE Injector with DC Input 24VDC – 57VDC
• PoE Injector with AC Input 100VAC – 240VAC
