XV3-8

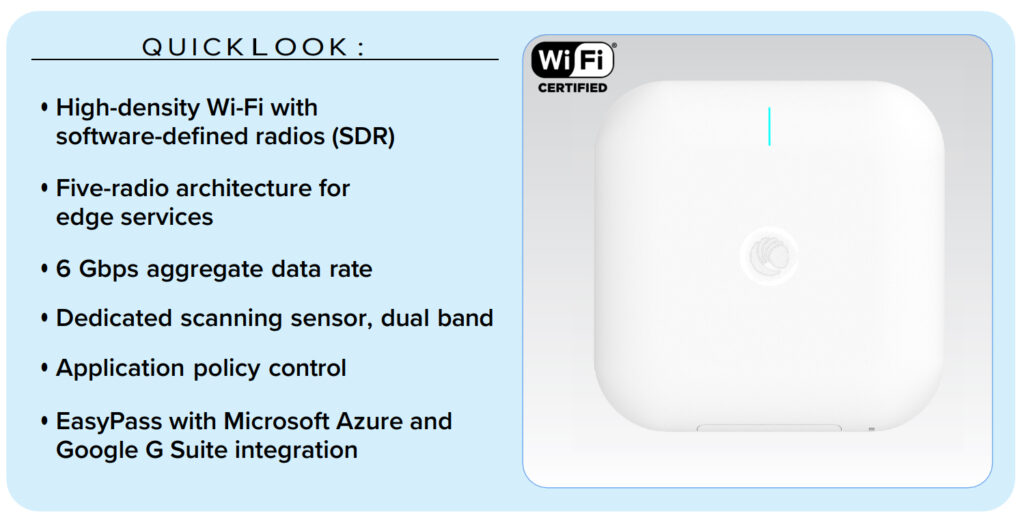

- XV3-8 Wi-Fi 6 Access Point
- XV3-8X00A00-RW 802.11ax Tri-Radio 8×8 Access Point with Software-Defined Radios
- High-density Wi-Fi with software-defined radios (SDR)
- Five-radio architecture for edge services
- 6 Gbps aggregate data rate
- Dedicated scanning sensor, dual band
- Application policy control
- EasyPass with Microsoft Azure and Google G Suite integration
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Cambium XV3-8 Wi-Fi 6 Access Point
Designed for High Density and Edge Services
The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4×4 plus one 2.4 GHz 4×4, or the two 5 GHz radios can be combined into a single 5 GHz 8×8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
Optimized Wi-Fi for All Client Devices
For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4×4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8×8 operating mode via a simple configuration change. No firmware change is required to support this mode.
Cloud and On-Premises Management
XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.
XV3-8X00A00-RW Datasheet
| Radios | • 2.4 GHz: 802.11 b/g/n/ax, 4×4 • 5 GHz: 802.11 a/n/ac Wave 2/ax, 8×8 (or configure as two 4×4) • 2.4/5 GHz scan, 1×1 • BLE 4.1 |
| Wi-Fi | • 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | • WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | • 2.4 GHz: 1,147 Mbps • 5 GHz: 4,804 Mbps |
| Ports | • 1 x IEEE 802.3 10/100/1000 Mbps • 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps • Auto sensing MDIX • 1 x USB 3.0 |
| Antenna | • 2.4 GHz: 5 dBi • 5 GHz: 6.7dBi • 2.4/5 GHz: sensor 5 dBi / 6.3 dBi • BLE 5 dBi |
| Max EIRP | • 2.4 GHz: 31 dBm • 5 GHz: 36 dBm |
| Power | • Max power with USB/BLE, 35 W (802.3bt) • 802.3at mode with USB/BT disabled • 12 VDC power, 2.1 mm (.083 in) barrel connector |
| Dimensions | • 235 mm x 235 mm x 42 mm |
| Weight | • 1,250 g |
| Security | • Kensington lock slot |
| LEDs | • Multi-color status LEDs |
| Ambient Operating Temperature | • 0ºC to 50ºC |
| Storage Temperature | • -20ºC to 70ºC |
| Humidity | • 95% RH non-condensing |
| MTBF | • 891k hours 50ºC and 2.379 million hours at 25ºC |
| Mount Options | • Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications (Compliance) | • Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
