XV2-2X

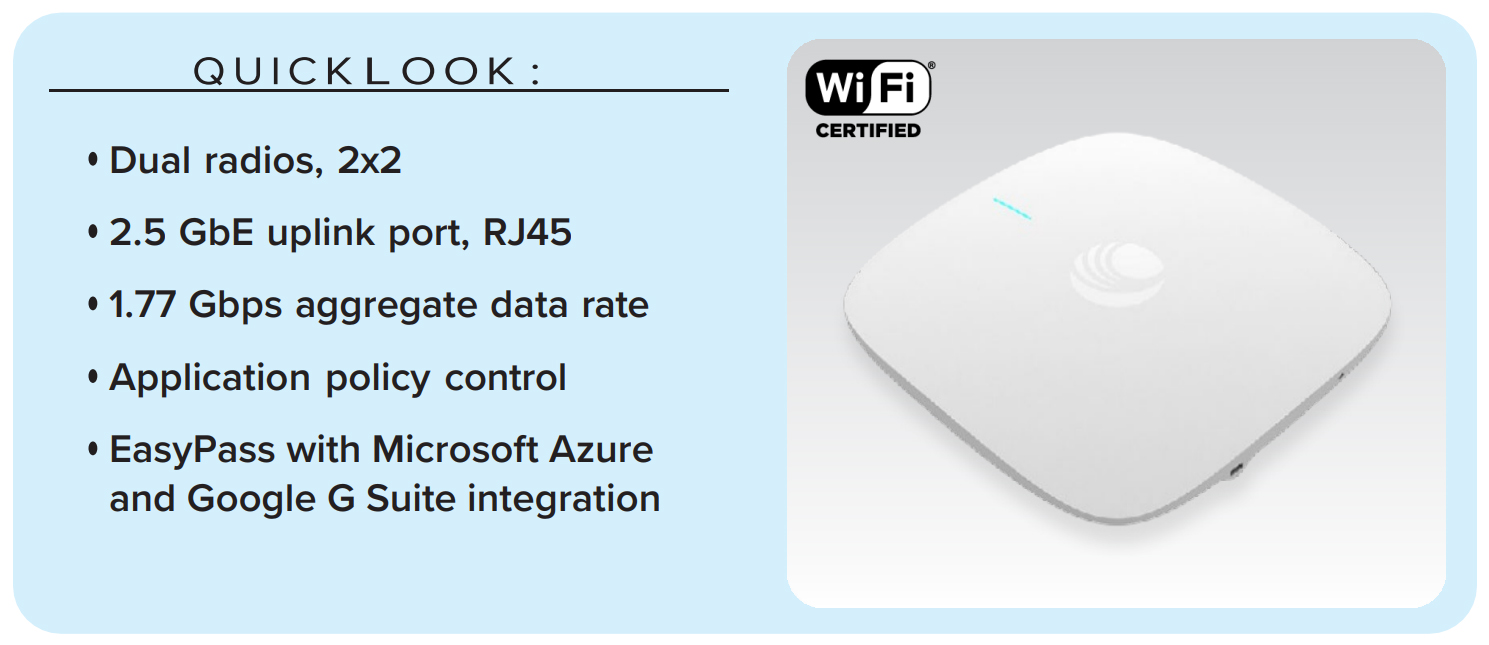

- XV2-2X Wi-Fi 6 Indoor Access Point
- XV2-2X00A00-RW 802.11ax Dual-Radio 2×2 Access Point
- Dual radios, 2×2
- 2.5 GbE uplink port, RJ45
- 1.77 Gbps aggregate data rate
- Application policy control
- EasyPass with Microsoft Azure and Google G Suite integration
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Cambium XV2-2X Wi-Fi 6 Access Point
WI-FI 6 DESIGNED FOR MOBILE DEVICES AND IoT
The XV2-2X is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a value-based price. Wi-Fi 6 technology delivers higher network speeds and enables more connected devices at higher packet quality. Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer where the AP controls the client connections, including when to sleep, when to wake and how to transmit and receive packets. The XV2 2X is fully backward compatible with existing Wi-Fi technology and enables a massive growth of low power, low-bitrate IoT devices to add infrastructure intelligence into any market. XV2-2X comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product
CLOUD AND ONPREMISES MANAGEMENT
XV2-2X is advancing enterprise network convergence by integrating edge-intelligent access points, all managed seamlessly through ther versatile cnMaestroTM management system, which is accessible both trough cloud-based and on-premises solutions. To cater to the increasing need for advanced management and service capabilities, cambium provides two distinct tiers of cnMaestro.
XV2-2X00A00-RW Datasheet
| Radios | • 5 GHz 802.11 a/n/ac Wave 2/ax, 2×2 • 2.4 GHz 802.11 b/g/n/ax, 2×2 |
| Wi-Fi | • 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | • WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | • 5 GHz radio 1,201 Mbps • 2.4 GHz radio 573.5Mbps |
| Ports | • 1 x IEEE 10/100/1000/2500 Mbps • Auto sensing MDIX • 1 x USB 2.0 |
| Antenna | • 5 GHz 6 dBi, Omni • 2.4 GHz 5 dBi, Omni |
| Max EIRP | • 5 GHz 31 dBm • 2.4 GHz 29 dBm |
| Power | • Max power 21W, 802.3at powered device 15.4W (802.3af) operation with reduced function settings • Typical 11W (USB disabled) |
| Dimensions | • 195 mm x 195 mm x 41.4 mm |
| Weight | • 800 g |
| Security | • Kensington lock slot |
| LEDs | • Multi-color status LEDs |
| Ambient Operation Temperature | • 0ºC to 50ºC |
| Storage Temperature | • -40ºC to 70ºC |
| Humidity | • 95% RH non-condensing |
| MTBF | • 4,514,013 hours at 25ºC ambient • 1,314,841 hours at 50ºC ambient |
| Mount Options | • Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications (Compliance) | • Wi-Fi Alliance 802.11 a/b/g/n/ac/ax,FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
