XV2-23T
- XV2-23T support 802.11 a/b/g/n/ac Wave 2/ax
- XV2-23T0A00-RW 802.11ax Dual-radio, 2×2
- 5 GHz (2×2), 2.4 GHz (2×2)
- 1 x 100/1000 Mbps Ethernet
- Outdoor rated IP67 enclosure
- Standalone, Cloud managed cnMaestro
- Value tier outdoor Wi-Fi 6 access point designed for cost effective upgrade to the latest 802.11ax standard in Wi-Fi technology.
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×

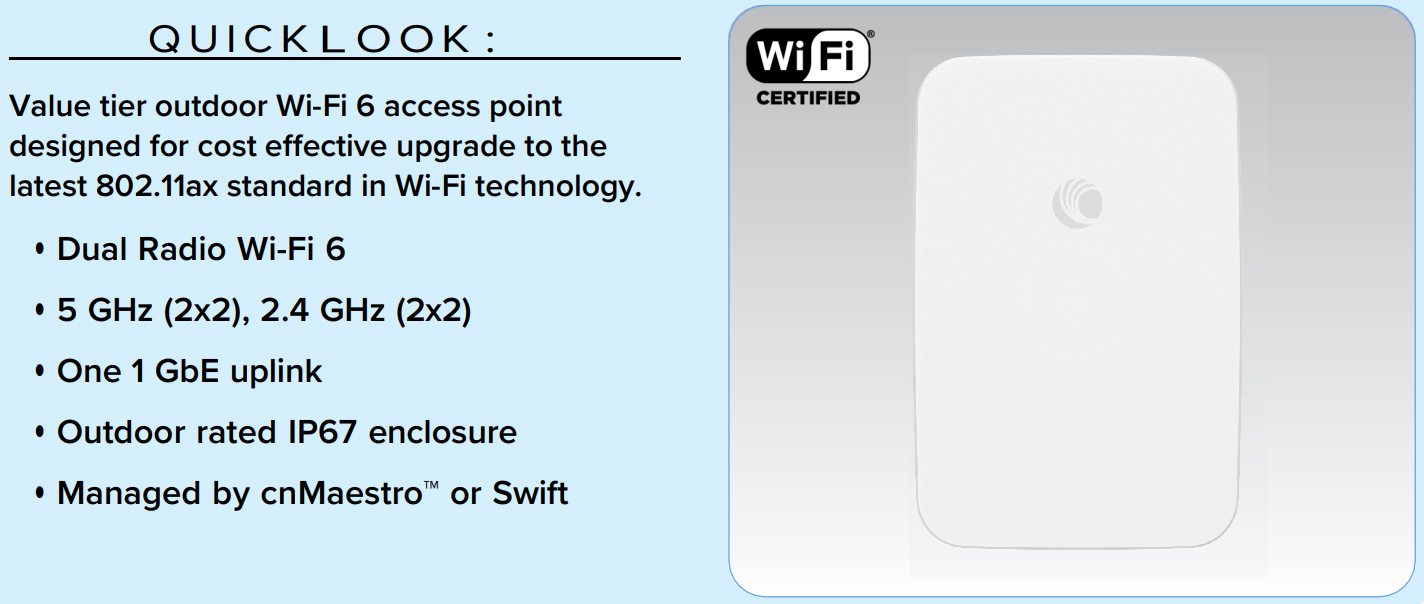

Cambium XV2-23T Wi-Fi 6 Outdoor Access Point
The XV2-23T outdoor 2×2 Wi-Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications.
802.11ax Dual Radio, 2×2 Wi-Fi 6 Access Point with long range internal antennas
Cambium Networks offers a value tier outdoor Wi-Fi 6 access point designed for cost effective upgrade to the latest 802.11ax standard in Wi-Fi technology.
XV2-23T0A00-RW Datasheet
| Radios | • 5 GHz 802.11a/n/ac/ax, 2×2 • 2.4 GHz 802.11 b/g/n/ax, 2×2 |
| Wi-Fi | • 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | • WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate | • 5 GHz radio 2,402 Mbps • 2.4 GHz radio 573.5 Mbps |
| Ports | • 1 x IEEE 100/1000 Mbps Ethernet |
| Antenna | • 5 GHz 10 dBi, Omni • 2.4 GHz 7 dBi, Omni |
| Max EIRP | • 5 GHz 36 dBm • 2.4 GHz 34 dBm • EIRP may be limited by country regulations |
| LTE Filter Band | • 38, 40 |
| Power | • Typical power: 11W max (802.3af) • Max Power: 12.95W (802.3af) |
| Dimensions | • 300 mm x 200 mm x 84 mm |
| Weight | • 1,600 g |
| Security | • Kensington lock slot |
| LEDs | • Multi-color status LEDs |
| Ambient Operation Temperature | • -40ºC to 65ºC |
| Storage Temperature | • -40ºC to 70ºC |
| Humidity | • 95% RH non-condensing |
| MTBF | • 5,077,102 hours @ 50ºC |
| Mount Options | • Pole or wall mounting. • Pole diameter: MIN 30 mm / MAX 75 mm |
| Certifications (Compliance) | • WiFi Alliance 80211a/b/g/n/ac, PP2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, EN50121 |
