XV2-21X

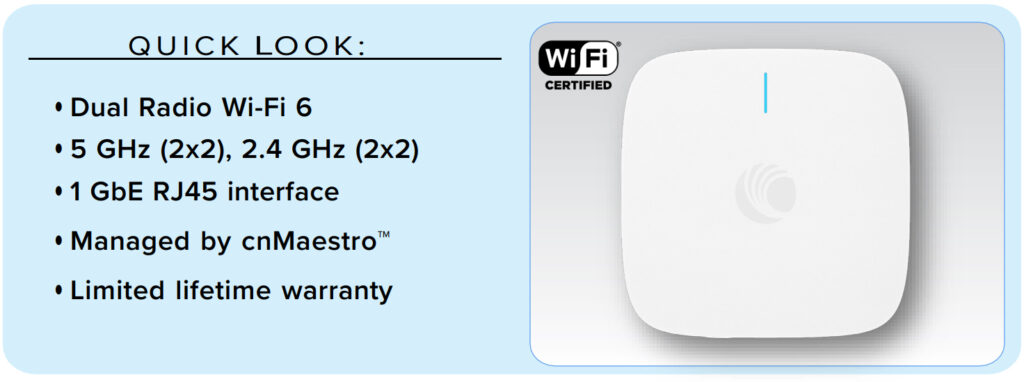

- XV2-21X Wi-Fi 6 Access Point
- Dual Radio Wi-Fi 6
- 5 GHz (2×2), 2.4 GHz (2×2)
- 1 GbE RJ45 interface
- Managed by cnMaestro™
- Limited lifetime warranty
- Standalone, Cloud managed cnMaestro
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Cambium XV2-21X Wi-Fi 6 Indoor Access Point
The XV2-21X indoor ceiling mount 2×2 Wi-Fi 6 AP offers 2.97 total Gbps of bandwidth. Ideal for hospitality, MDU and small and medium business applications. 802.11ax Dual-Radio Indoor Access PointCambium Networks’ XV2-21X Wi-Fi 6 indoor AP delivers a high-performance to price ratio that is attractive to any market.
Value-Tier Wi-Fi for Any Market
Cambium Networks XV2-21X Wi-Fi 6 Indoor Access
Point (AP) delivers a high performance-to-price ratio
attractive to any market.
The XV2-21X can be adopted and managed by any of
the Cambium management systems, including
cnMaestro Essentials and cnMaestro X, available in
cloud and on-premises versions. Choose the
management type you need and change it at any time.
Unlike other value-tier access points, the XV2-21X is
never locked into just one management selection.
Designed for Fast Installation
The XV2-21X offers multiple installation methods included
in the same shipping box. Mount the AP to a ceiling tile
using the included steel plate; mount to an existing junction
box with 83mm center-to-center holes; twist lock the AP
onto a 36mm, 24mm, and 14mm T-bar; or simply mount it to
any flat surface using the included wall anchors. No
accessory brackets are needed.
XV2-21X0A00-RW Datasheet
| Radios | • 5 GHz 802.11 a/n/ac Wave 2/ax, 2×2:2 • 2.4 GHz 802.11 b/g/n/ax, 2×2:2 |
| Wi-Fi | • 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | • WPA3-SAE, WPA3-Enterprise, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WEP, Open |
| Max PHY Rate | • 5 GHz radio 2402 Mbps • 2.4 GHz radio 573.5Mbps |
| Ports | • 1 x IEEE 10/100/1000 Mbps |
| Antenna | • 5 GHz 6 dBi • 2.4 GHz 5 dBi |
| Max EIRP | • 5 GHz 33 dBm • 2.4 GHz 32 dBm |
| Power | • Typical 11W, Maximum 12.95W • 802.3af powered device |
| Dimensions | • 155 mm x 155 mm x 37 mm • With Bracket: 155 x 155 x 46 mm |
| Weight | • 475g |
| LEDs | • Multi-color status LEDs, dimmable, on/off |
| Ambient Operation Temperature | • 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | • -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | • 95% RH non-condensing |
| MTBF | • 1,980,244 hours at 50ºC ambient (estimated) |
| Mount Options | • Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications (Compliance) | • Passpoint 3.0, 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, PP2.0 FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043, EN 61373 |
