UniFi Express
- UniFi Express is powerfully compact UniFi Cloud Gateway
- WiFi 6 access point that runs UniFi Network
- Powers an entire network
- Simply meshes as an access point
- Built-in WiF6 (2×2 MIMO)
- 140 m² (1,500 ft²) single-unit coverage
- 60+ connected WiFi devices
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port to extend network
- 0.96″ LCM status display
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978UniFi Cloud Gateways UniFi Express
Ubiquiti UniFi Express has introduced the UniFi Express router, a device that integrates a Wi-Fi 6 access point and a UniFi Network controller.
This router supports gigabit speeds and is designed to serve as a comprehensive UniFi cloud gateway. The UniFi Express router (UX) draws comparisons to Ubiquiti’s UXG Lite gateway but sets itself apart with its integrated functionality. It includes a Wi-Fi 6 access point with 2×2 MU-MIMO technology, capable of covering up to 140m²

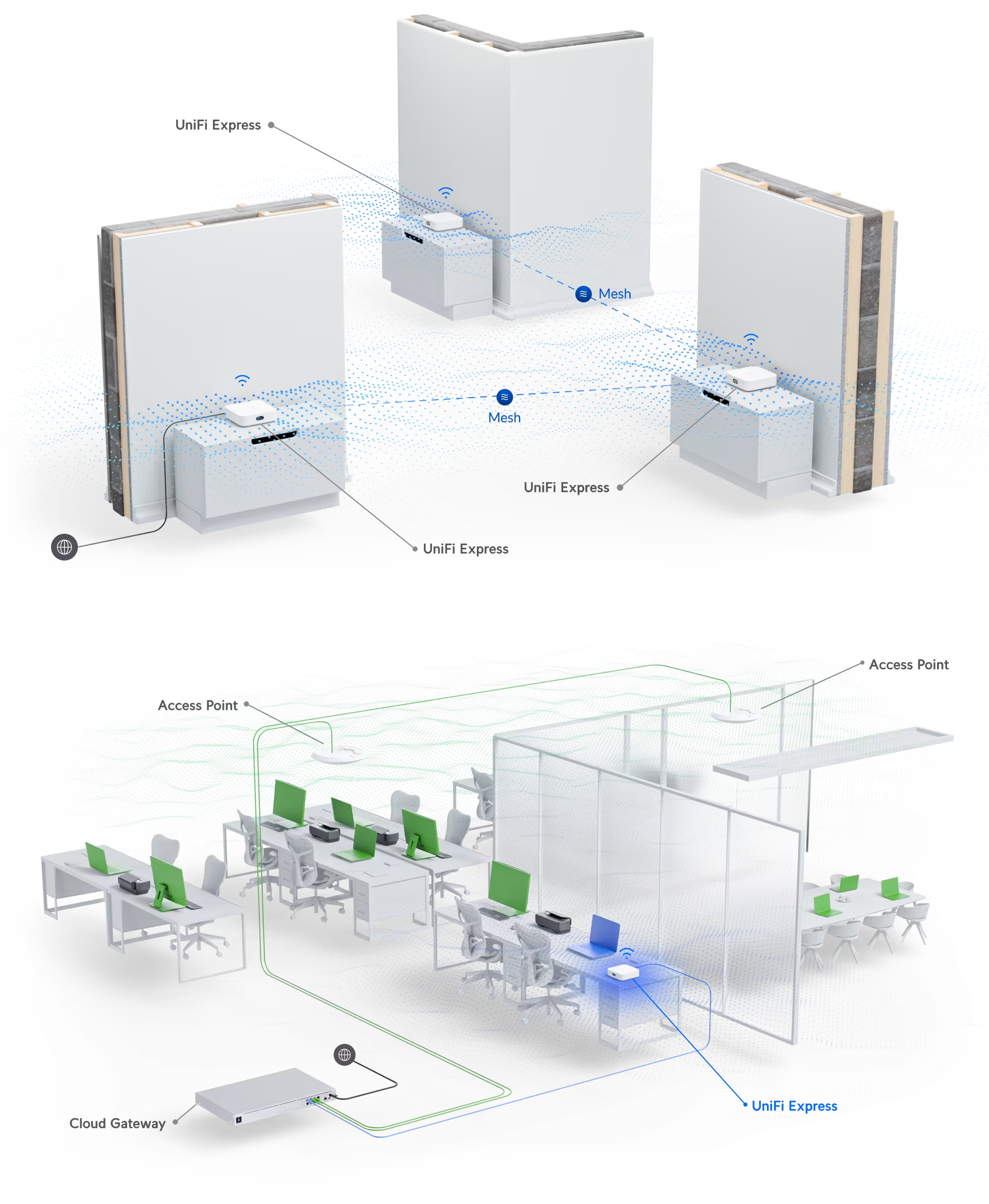

The router not only offers network-wide control but also functions independently as an access point. It supports the interconnection of multiple UniFi Express units for extended Wi-Fi coverage, facilitating both wired and wireless uplinks.
Ubiquiti has designed the router to maintain 1Gbit/s routing performance, even when activating features like Traffic and Device Identification.
This integration eliminates the need for a separate UniFi Cloud Key or hosting the UniFi Network application for network management, a requirement for the UXG Lite. Featuring an in-built UniFi Network controller, the UniFi Express can manage up to five additional UniFi devices, such as switches and access points. For users looking to expand their UniFi network or incorporate Ubiquiti security cameras via UniFi Protect, a separate Cloud Key is still necessary.

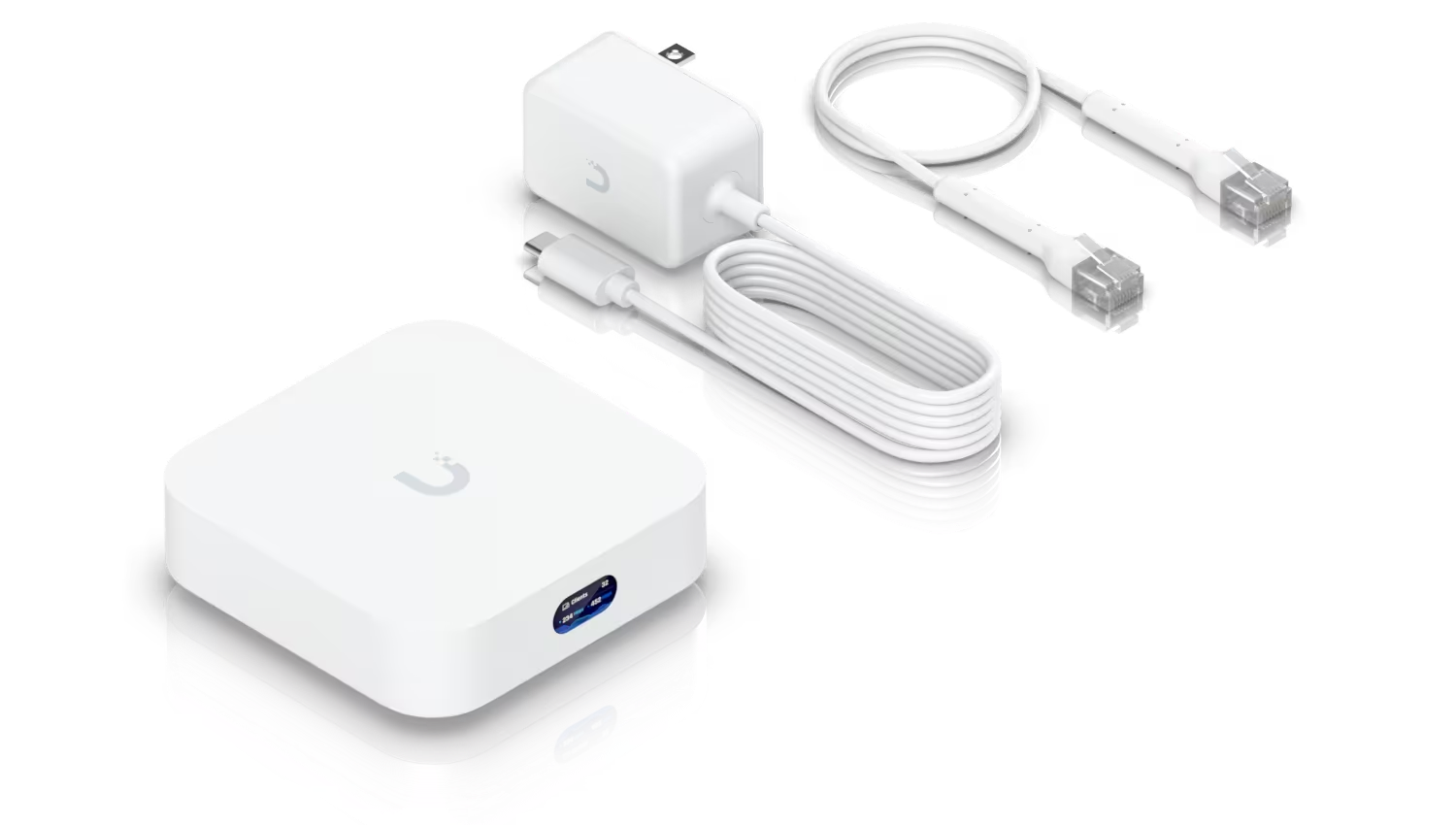

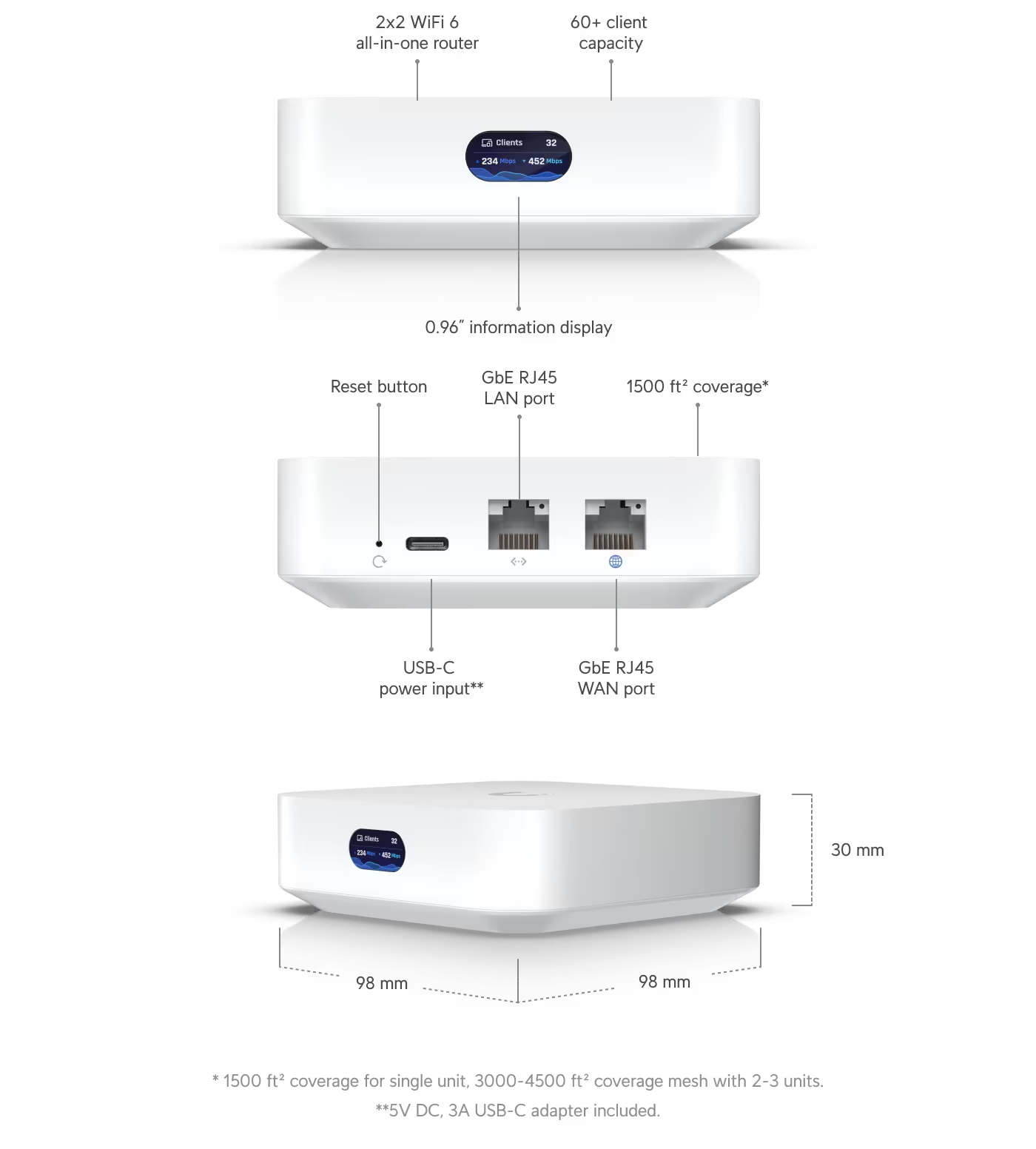

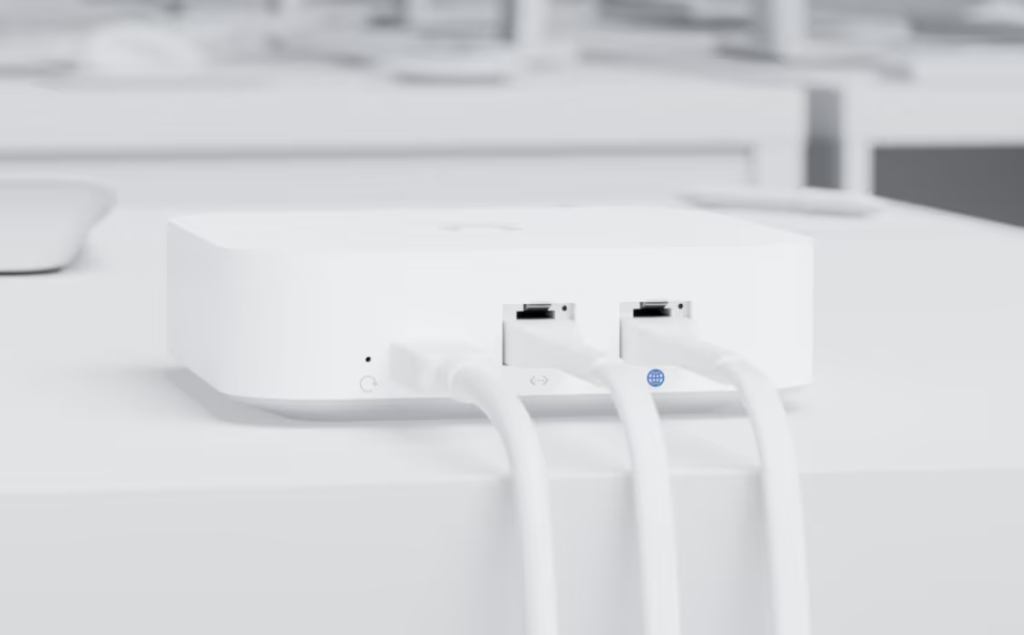

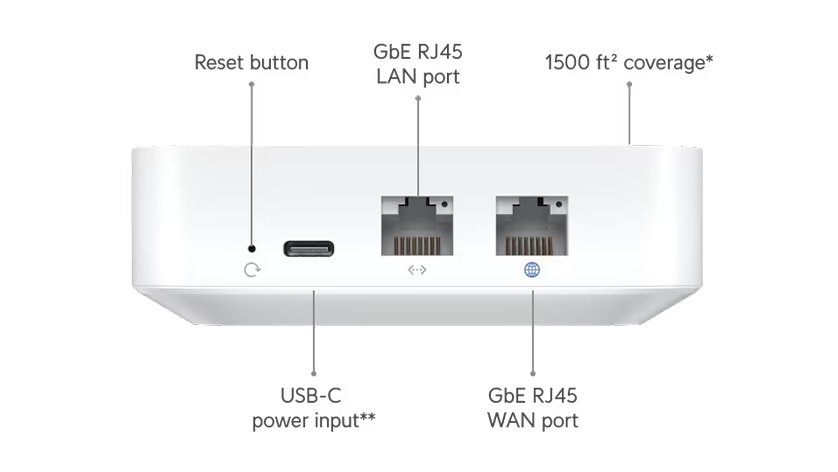

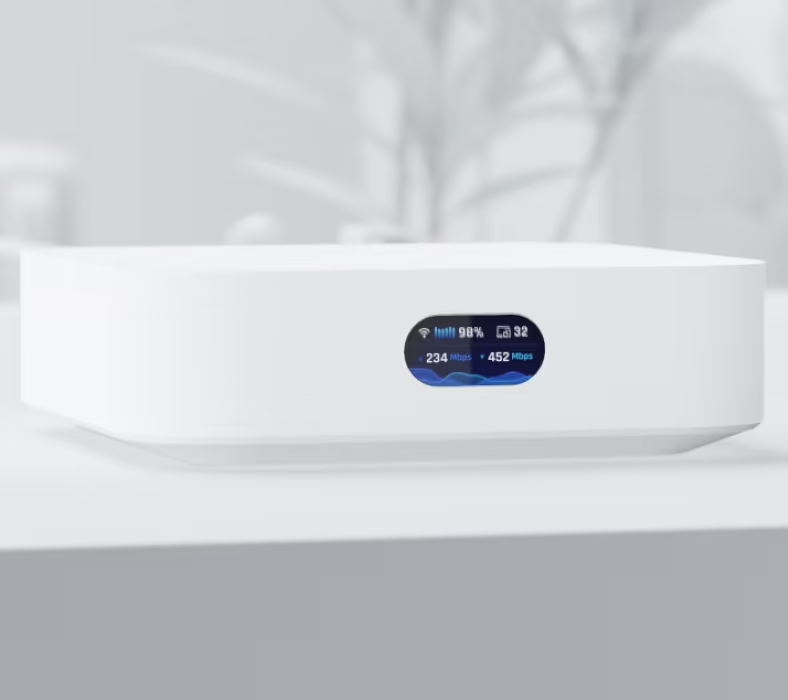

In terms of design, the UniFi Express boasts a compact form, measuring 98mm in length, width, and 30mm in height. It features a 0.96″ display on the front, showing vital information such as transfer speeds and Wi-Fi range. The back of the device includes a 1Gbit/s WAN port and a 1Gbit/s LAN port for connecting additional devices. It is powered via a USB-C connection.
Gateway UniFi Express UX Datasheet
| Mechanical | |
|---|---|
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2″) |
| Weight | 302 g (10.7 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Networking interface | (1) GbE RJ45 WAN port (1) GbE RJ45 LAN port |
| Management interface | Ethernet Bluetooth |
| Power method | USB type C (5V DC/3A) |
| Max. power consumption | 10W |
| Max. WiFi TX power 2.4 GHz 5 GHz | 22 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz | 573.5 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz | 4 dBi 5.15 dBi |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| LCM display | 0.96″ status display |
| Button | Factory reset |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 60+ |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
