UniFi Bridge
- UniFi Bridge Building-to-Building Bridge (x2)
- Ball joint mount (x2)
- Lock ring (x2)
- Metal strap (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
Managed with the UniFi Network application: Version 5.12.0 and late
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Building-to-Building Bridge
- 60 GHz PtP link using 802.11ad with 5 GHz radio for backup. Ideal for high-throughput connectivity with a range of up to 500 m.
- 1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m
- UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

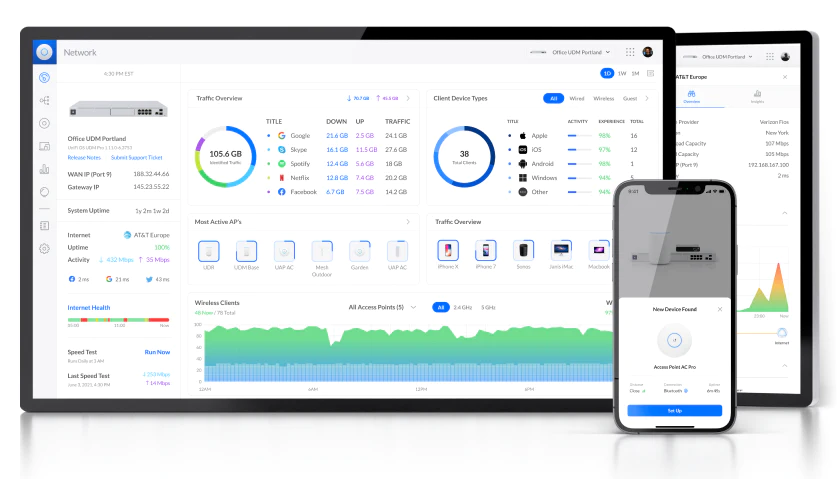

Adopt the UBB in Minutes with Your UniFi Network Application and
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
| Mechanical | |
|---|---|
| Dimensions | Ø140 x 90 mm (Ø5.51 x 3.54″) |
| Weight | 376 g (13.3 oz) |
| Enclosure material | UV-resistant polycarbonate |
| Mounting | Pole-mount (Kit included) Wall-mount (Not included) |
| Wind loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE+ Passive PoE (48V) |
| Power supply | UniFi PoE switch 48V, 0.32A Gigabit PoE adapter (Included) |
| Max power consumption | 11W |
| ESD/EMP protection | ± 24kV Contact/Air |
| Antenna Gain 2.4 GHz (BLE) 5 GHz 60 GHz | 2 dBi 10 dBi 17.2 dBi |
| GPS | Yes |
| Max. TX power 5GHz 60GHz | 25 dBm 32 – 36.5dBm |
| 60 GHz elevation beamwidth | 30° |
| 60 GHz azimuthal coverage | ±60° |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 – 5875 57,000 – 66,000 |
| US/CA | U-NII-1: 5150 – 5250 U-NII-3: 5725 – 5850 57,000 – 66,000 |
| Bluetooth (MHz) | |
| Worldwide | 2400 – 2483.5 |
