UniFi BeaconHD
UniFi BeaconHD with 802.11ac Wave 2 access point that plugs into an AC wall outlet to quickly extend wireless coverage and improve throughput
- UniFi BeaconHD 802.11ac Wave 2 WiFi technology
- Establishes bidirectional uplinks to nearby UniFi access points
- 5 GHz (802.11ac, 4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
- Improves the radio rate of nearby WiFi devices
- Note: The UAP BeaconHD plugs into an AC wall outlet.
- Managed with the UniFi Network application: Version 5.11.11 and later
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Access Point UniFi BeaconHD

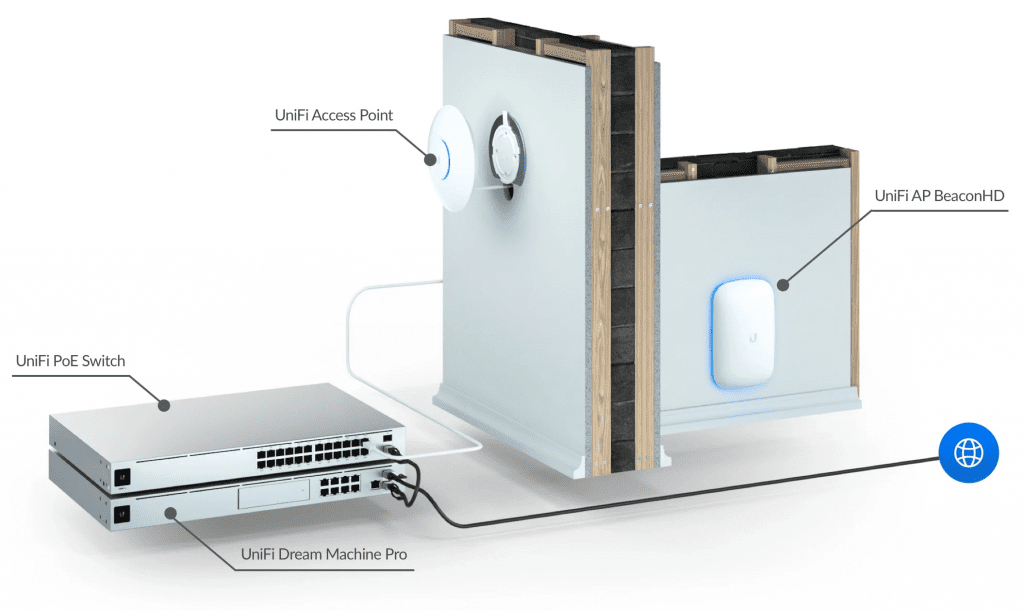

The Access Point BeaconHD (UAP BeaconHD) is a 802.11ac WiFi access point that utilizes Wave 2 technology and bidirectional uplink design to connect with and relay the signals of other nearby UniFi access points to extend and enhance wireless coverage throughout your home or office. The compact UAP BeaconHD plugs into any AC wall outlet and offers a 1.733 Gbps throughput rate over its 5 GHz (4×4 MU-MIMO) band while also improving the radio rates of nearby WiFi devices. The UAP BeaconHD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.

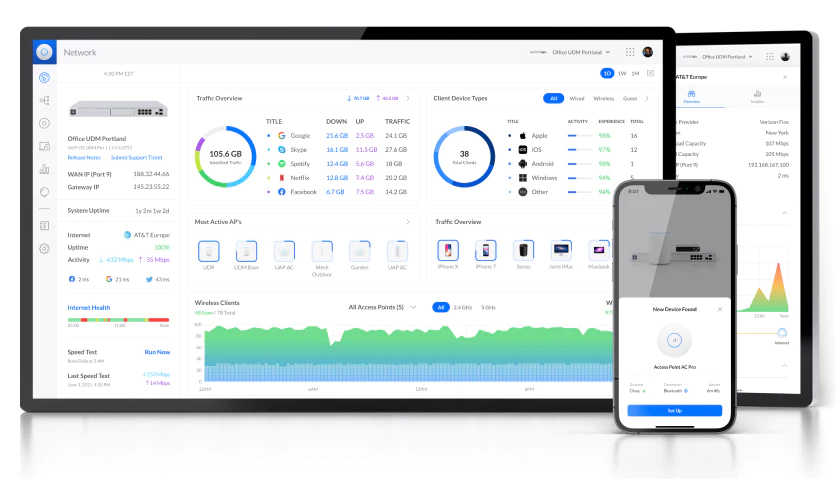

Adopt the UAP-BeaconHD in Minutes with Your UniFi Network Application and
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
| Mechanical | |
|---|---|
| Dimensions | 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3″) |
| Weight | 260 g (9.2 oz) |
| Hardware | |
| Management interface | Bluetooth |
| Power method | Universal AC input, 100—240V AC, 0.3A max., 50/60 Hz |
| Supported voltage range | 110—240V AC |
| Max. power consumption | 11.5W |
| Max. TX power 2.4 GHz 5 GHz | 24.8 dBm 30 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 4.5 dBi 5 dBi |
| Button | Factory reset |
| Operating temperature | -10 to 60° C (14 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Beam-forming | Supported |
| Concurrent clients | 300+ |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160) |
