UniFi AC SHD
UniFi AC SHD four-stream, 802.11ac Wave 2 access point with a dedicated network security radio
- 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
- 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
- Dedicated security radio for persistent network threat management
- Powered with PoE+*
- (2) GbE RJ45 ports
- (1) USB por
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Access Point AC SHD
The Access Point AC SHD (UAP AC SHD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2.5 Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (4×4 MIMO) bands. The UAP AC SHD is also equipped with a dedicated security radio that persistently surveys and removes threats from your network. This access point is powered with PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC SHD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.

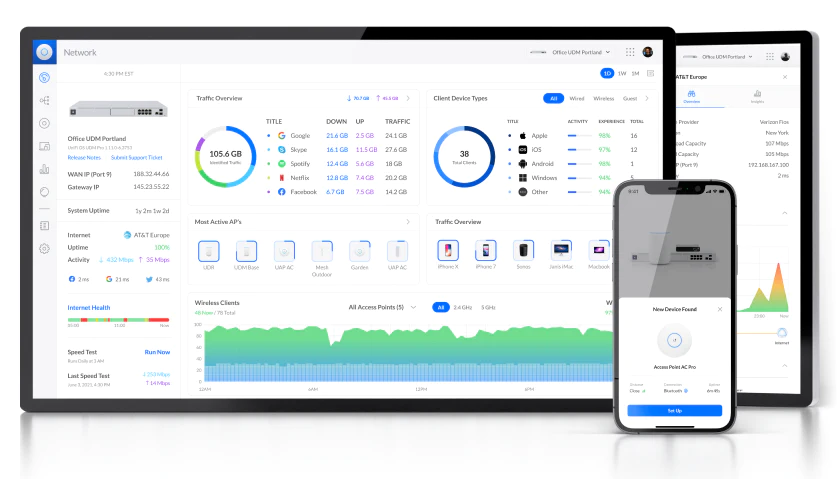

Adopt the UAP-AC-SHD in Minutes with Your UniFi Network Application and
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9″) |
| Weight | Without mount: 700 g (1.5 lb oz) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 20W |
| Max. TX power 2.4 GHz 5 GHz | 25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 800 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 6 dBi 6 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -10 to 70° C (14 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
