UniFi AC HD
UniFi AC HD with Dual-band, 802.11ac Wave 2 access point designed to support high-density networks and critical system applications
- 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
- 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
- Powered with PoE+*
- (2) GbE RJ45 ports
- (1) USB port
- Managed with the UniFi Network application
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Access Point AC HD
The Access Point AC HD (UAP AC HD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (4×4 MIMO) bands. The UAP AC HD also has a focused antenna pattern to enhance your network’s capacity and reduce interference from neighbouring access points. This access point is powered with PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.

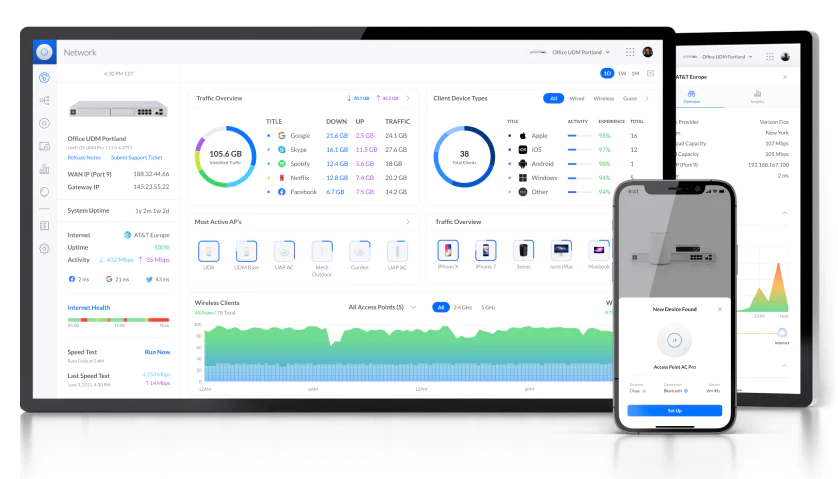

Adopt the UAP-AC-HD in Minutes with Your UniFi Network Application and
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9″) |
| Weight | Without mount: 700 g (1.5 lb oz) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | Gigabit PoE adapter 48V DC, 0.5A* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 17W |
| Max. TX power 2.4 GHz 5 GHz | 25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz | 800 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz | 3 dBi 4 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -10 to 70° C (14 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| WMM | Supported |
| Concurrent clients | 500+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
