RG-AP880-AR

Dimensions
(W × D × H)

230 mm × 230 mm × 51 mm

Weight

AC: 1.0 kg

Bracket: 0.1 kg

Installation

Ceiling/wall-mountable

Lock Option

Kensington lock and security screw

Radio Design

Quad-radio design, including one AI radio that can switch between the 2.4 GHz and 5 GHz frequency bands.

Up to 10 patial streams;

Radio1: 2.4 GHz: 2 spatial streams, 2 × 2 MIMO

Radio 2: 5 GHz: 2 spatial streams, 2 × 2 MU-MIMO

Radio 3: 5 GHz: 4 spatial streams, 4 × 4 MU-MIMO

Radio 4: 2.4 GHz/5 GHz: 2 spatial streams, 2 × 2 MU-MIMO

Operating Frequencies

IEEE 802.11b/g/n/ax: 2.4 GHz to 2.4835 GHz

IEEE 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.725 GHz to 5.850 GHz

 (Note: The operating band varies in different countries.)

Data Rate

Radio 1: 2.4 GHz, 575 Mbps

Radio 2: 5 GHz, 2.4 Gbps

Radio 3: 5 GHz, 4.8 Gbps

Radio 4: 2.4 GHz/5 GHz, 300 Mbps/867 Mbps

Maximum wireless rate of the AP:

2.4 GHz + 5 GHz + 5 GHz + 2.4 GHz, 8.075 Gbps

2.4 GHz + 5 GHz + 5 GHz + 5 GHz, 8.642 Gbps

Antenna Type

Built-in smart antenna

Antenna Gain

2.4 GHz: 3 dBi

5 GHz: 3 dBi

Maximum Transmit Power

20 dBm

(Note: The transmit power varies based on the regulations in different countries and regions.)

Power Adjustment

Configurable in increments of 1 dBm

Modulation

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Receiver Sensitivity

IEEE 802.11b: –96 dBm (1 Mbps), –93 dBm (5 Mbps), –89 dBm (11 Mbps)

IEEE 802.11a/g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)

IEEE 802.11n: –90 dBm@MCS0, –70 dBm@MCS7, –89 dBm@MCS8, –68 dBm@MCS15

IEEE 802.11ac: HT20: –88 dBm (MCS0), –63 dBm (MCS9)

IEEE 802.11ac: HT40: –85 dBm (MCS0), –60 dBm (MCS9)

IEEE 802.11ac: HT80: –82 dBm (MCS0), –57 dBm (MCS9)

IEEE 802.11ax: HE80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11)

IEEE 802.11ax: HE160: –79 dBm (MCS0), –53 dBm (MCS9), –50 dBm (MCS11)

Bluetooth

Bluetooth 5.1

USB Port

USB 3.0

Fixed Service Port

One 100/1000/2500/5000Base-T Ethernet port with auto-neogitiation, IEEE 802.3af/802.3at/802.3bt-compliant

One 5GE SFP port, compatible with 1GE and 2.5GE SFP modules

One 10/100/1000Base-T Ethernet port with auto-neogitiation, supplying power to IoT modules (48 V/12.95 W)

Fixed Management Port

One RJ45 console port

Status LED

One system status LED

Button

One reset button

Power Supply and Consumption

RG-AP880-AR

Input Power Requirements

DC input: 54 V/1.1 A

PoE/PoE+/PoE++ (IEEE 802.3af/at/bt-compliant)

Note:

If IEEE 802.3at-compliant PoE is adopted, the AP can be normally powered on, but AI Radio is disabled, and the downlink port and USB port cannot supply power to external devices.

Power Supply to External Device

Supported, supplying power to IoT modules through the PoE-capable Ethernet port

Maximum Power Consumption

40 W

Temperature

Operating temperature: –10°C to +50°C (14°F to 122°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

At a height between 3000 m (9842.52 ft.) to 5000 m (16404.20 ft.) above the sea level, every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 5%RH to 95%RH (non-condensing)

Storage humidity: 5%RH to 95%RH (non-condensing)

Safety Standard

GB 4943.1, IEC 62368-1

EMC Standard

EN300386, GB19286, GB17618

WLAN Functions

Maximum number of connected STAs: 1552

SSID hiding

Separate authentication mode, encryption mechanism, and VLAN attributes for each SSID

Remote Intelligent Perception Technology (RIPT)

Intelligent terminal recognition technology

Intelligent load balancing based on terminal quantity or traffic

STA limit

●    SSID-based STA limit

●    Radio card-based STA limit

Bandwidth limit: STA/SSID/AP-based rate limit

Fat/Fit mode switching:

●    When the device works in fit mode, it can be switched to fat mode via an AC.

●    When the device works in fat mode, it can be switched to fit mode through the local console port or Telnet mode.

Security

PSK and web authentication

Data encryption: WEP (64/128-bit), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3

WeChat-based authentication

QR code-based visitor authentication

SM-based authentication

MAB authentication

Data frame filtering: whitelist, static blacklist, dynamic blacklist

User isolation

Rogue AP detection and containment

Dynamic ACL assignment

Remote authentication dial in user service (RADIUS)

CPU Protect Policy (CPP)

Network Foundation Protection Policy (NFPP)

Routing Switching

IPv4 features: static IPv4 address and dynamic IPv4 address obtained via DHCP

Multicast-to-unicast conversion

PPPoE client

IPSec VPN

FTP ALG/DNS ALG

Management and Maintenance

Network management via Telnet or TFTP

Web-based management

Wireless positioning: RBIS

Wireless marketing: WMC/MCP

Fault detection and alarm

Information statistics and logs

RG-AP880-AR

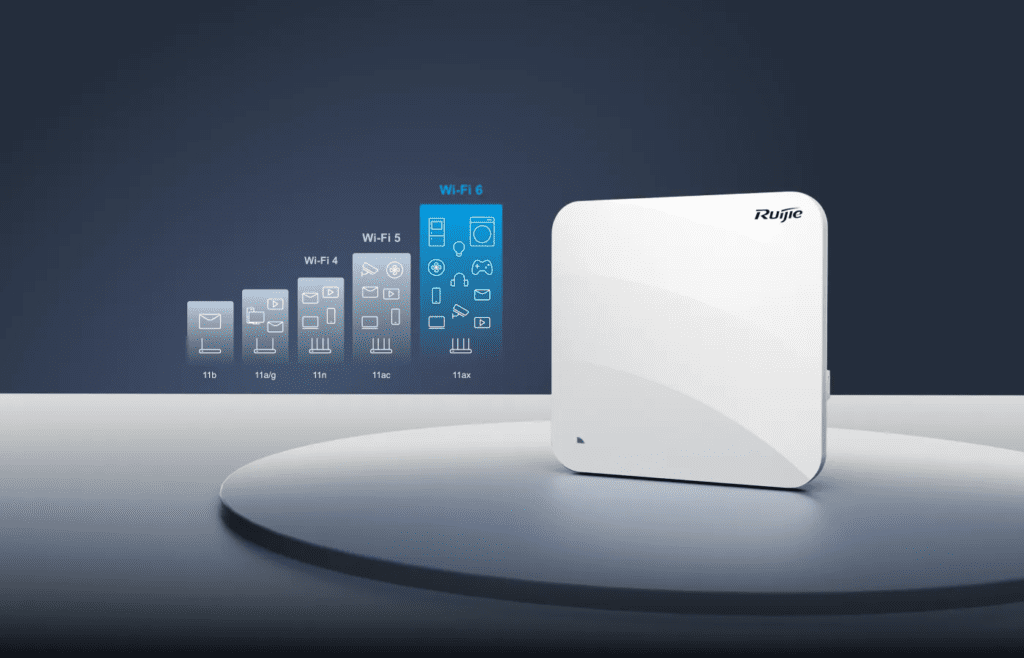

IEEE 802.11ax-compliant quad-radio wireless AP for indoor high-density scenarios. The device supports a maximum of 10 spatial streams and a maximum wireless rate of 8.642 Gbps. It can work in IEEE 802.11a/b/g/n/ac and IEEE 802.11ax modes, switch between fit mode and fat mode, and support IEEE 802.3bt/at/af-compliant PoE
