RG-AP840-I (V2)
- RG-AP840-I (V2) Wi-Fi 6 Dual-Radio 5375 Mbps Indoor AP
- Indoor scenarios in higher education, government, general education, finance, and business sectors

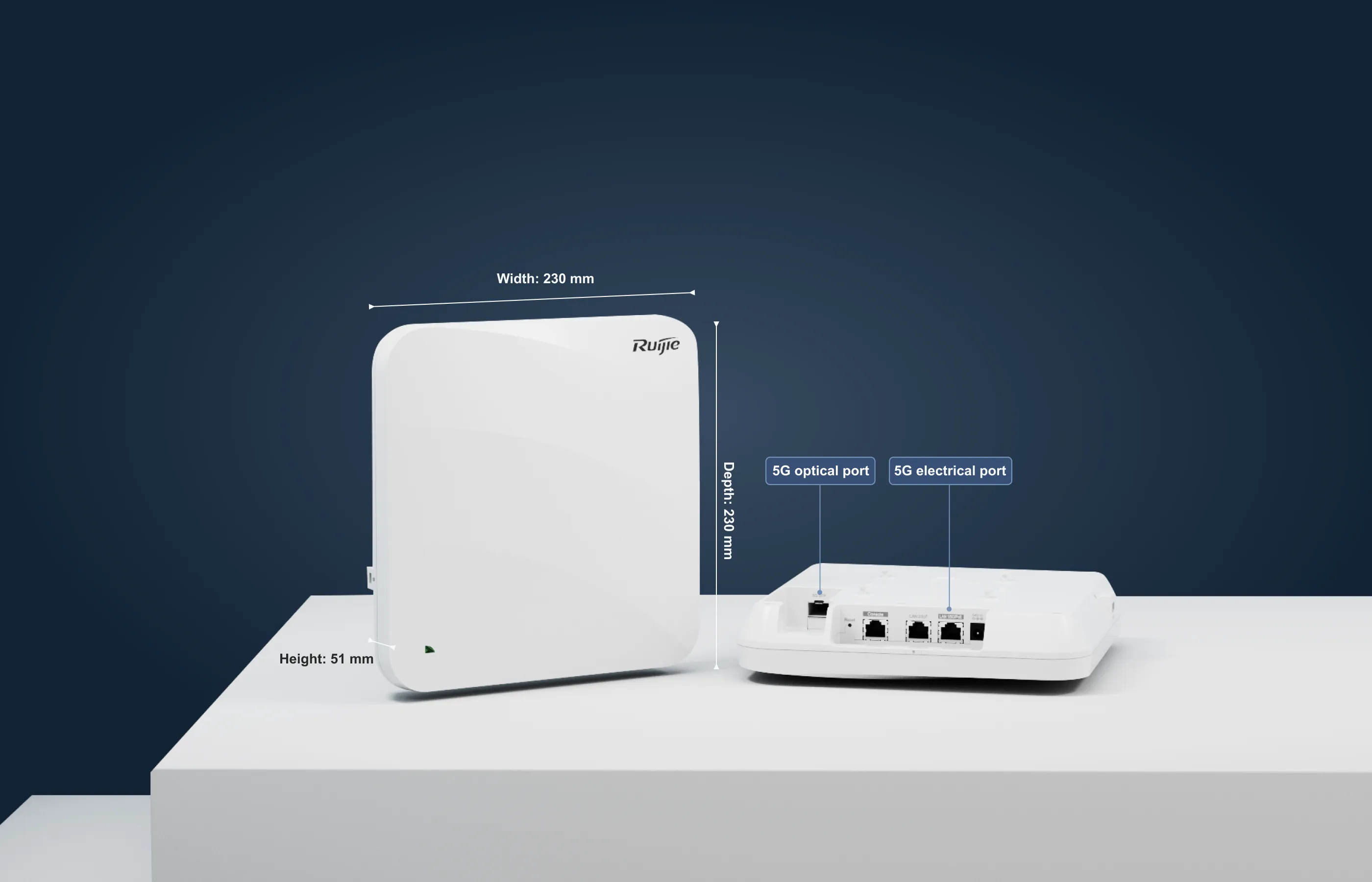

- 5G optical port and 5G electrical port for flexible networking
- Upgraded to Wi-Fi 6, a combined data rate of up to 5375 Mbps
- 160 MHz and 6 spatial streams for smoother wireless experiences
- Unified WIS cloud management, intelligent O&M
- 160 MHz and 6 Spatial Streams Delivering Smoother Wireless Experiences. Compared with traditional 80 MHz, 160 MHz allows larger traffic per unit time. With dual radios and 6 spatial streams, the AP has stronger data sending and receiving capability.
- Unified Cloud Management Intelligent Tuning and Easier O&M
- WIS Cloud Network enables network-wide configuration and tuning, removing the need of onsite commissioning. It also supports O&M on the mobile app Wi-Fi Moho. With early warning of network faults, wireless networks can be monitored anytime and anywhere.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Ruijie Wi-Fi 6 Series Enhanced Indoor Settled AP RG-AP840-I(V2)
Ruijie Wi-Fi 6 Series Enhanced Indoor Settled AP RG-AP840-I(V2)
Dimensions and Weight | RG-AP840-I(V2) |
Dimensions (W × D × H) | 230 mm × 230 mm × 51 mm |
Weight | Main unit: 1.0kg Mounting bracket: 0.1kg |
Installation | Ceiling, wall-mountable |
Lock Option | Built-in lock and Kensington lock |
Radio Specifications | RG-AP840-I(V2) |
Radio Design | Dual-radio design supports switching between 2.4GHz and 5GHz band: Radio1: 2.4GHz: 2 streams, 2*2 MIMO Radio2: 5GHz: 4 streams, 4*4 MIMO |
Operating Radio | 802.11b/g/n/ax: 2.400G to 2.4835GHz 802.11a/n/ac/ax: 5.150GHz to 5.350GHz, 5.725GHz to 5.850GHz (Note: The operating band varies in different countries) |
Spatial Streams | Up to six spatial streams, with up to two in 2.4GHz and up to four in 5GHz |
Data Rate | Maximum wireless rate of the AP: 5.375Gbps Radio 1: 2.4GHz, 0.575Gbps Radio 2: 5GHz, 4.8Gbps |
Antenna Type | Built-in omnidirectional antennas |
Antenna Gain | 3dBi |
Maximum Transmit Power | 20dBm (Note: The actual transmit power may vary in different countries and regions according to the regulations.) |
Power Adjustment | 1dBm |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA |
Receive Sensitivity | 11b: -96dBm (1Mbps), -93dBm (5Mbps), -89 dBm (11Mbps) 11a/g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) 11n: -90dBm@MCS0, -70dBm@MCS7, -89 dBm @MCS8, -68dBm@MCS15 11ac: HT20: -88dBm (MCS0), -63dBm (MCS9) 11ac: HT40: -85dBm (MCS0), -60dBm (MCS9) 11ac: HT80: -82dBm (MCS0), -57dBm (MCS9) 11ax: HE80: -82dBm (MCS0), -57dBm (MCS9), -52dBm (MCS11) 11ax: HE160: -79dBm (MCS0), -53dBm (MCS9), -50dBm (MCS11) |
Interface Specifications | RG-AP840-I(V2) |
Bluetooth | Bluetooth 5.1 |
USB Port | USB 3.0 port |
Fixed Service Port | One 100M/1000M/2.5G/5G adaptive Ethernet copper port, supporting PoE One 5G SFP port, compatible with 1G and 2.5G SFP One 10M/100M/1000M adaptive copper port, supporting power supply to IoT units (48V/12.95W) |
Fixed Management Port | One RJ45 console port |
Status LED | One system status indicator |
Button | One reset button |
Power Supply and Power Consumption | RG-AP840-I(V2) |
Input Power Supply | DC input: 54 V/1.1 A PoE/PoE+/PoE++ (required to meet 802.3af/at/bt PoE standards) Note: ● In case of 802.3at PoE, the AP starts up normally. The downlink port and USB port cannot power external devices. ● In case of 802.3af PoE, the AP starts up normally. Both the two radios are available under one-stream mode, and the downlink port and USB port cannot power external devices. |
Power Supply to External Device | Supported |
Maximum Power Consumption | 40W |
Environment and Reliability | RG-AP840-I(V2) |
Temperature | Operating temperature: -10°C to +50°C Storage temperature: -40°C to +70°C (Note: in the altitude range of 3000m to 5000m, the maximum temperature decreases by 1°C for every 220m of altitude increase.) |
Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
Safety Standard | GB 4943.1, IEC 62368-1 |
EMC Standard | EN300386, GB19286, GB17618 |
Software Specifications | RG-AP840-I(V2) | |
WLAN | Maximum number of allowed concurrent STAs | 1024 |
SSID hiding | Supported | |
Separate authentication mode, encryption mechanism, and VLAN attributes for each SSID | Supported | |
Remote Intelligent Perception Technology (RIPT): supported Intelligent device recognition technology | Supported | |
Intelligent load balancing based on the number of STAs or traffic | Supported | |
STA limit | SSID-based STA limit Radio card-based STA limit | |
Bandwidth limit | STA/SSID/AP-based rate limit | |
Fat/Fit mode switching | When the AP works in fit mode, it can be switched to fat mode via an AC. When the AP works in fat mode, it can be switched to fit mode through the local control port or Telnet mode. | |
Security Features | PSK and Web authentication | Supported |
Data encryption | WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3 | |
WeChat-based authentication | Supported | |
QR code-based visitor authentication | Supported | |
SMS authentication | Supported | |
MAB authentication | Supported | |
Data frame filtering | Whitelist, static blacklist, dynamic blacklist | |
User isolation | Supported | |
Rogue AP detection and containment | Supported | |
Dynamic ACL assignment | Supported | |
RADIUS | Supported | |
CPU Protect Policy (CPP) | Supported | |
Network Foundation Protection Policy (NFPP) | Supported | |
Routing Switching | IPv4 address | static IPv4 address or dynamic IPv4 address obtained via DHCP |
Multicast-to-unicast conversion | Supported | |
PPPoE client | Supported | |
IPsec VPN | Supported | |
FTP ALG/DNS ALG | Supported | |
Management and Maintenance | Telnet and TFTP management | Supported |
Web management | Supported | |
Wireless positioning | RBIS | |
Wireless marketing | WMC/MCP | |
Fault detection and alarm | Supported | |
Information statistics and logs | Supported | |
| Model | Description | Remarks |
| RG-AP840-I(V2) | 802.11ax-compliant dual-radio AP. The device supports the simplified optical Ethernet solution by Ruijie Networks. It supports a maximum of six spatial streams and a maximum access rate of 5.375Gbps. It complies with the 802.11a/b/g/n/ac and 802.11ax modes, allows switching between fit mode and fat mode, and supports 802.3bt/at/af PoE. The access point requires one wireless controller license. | Required |
