RG-AP820-I
- RG-AP820-I Maximum ROI (Lifetime free cloud management & WIS optimization service)
- HE160 Supported for Higher Throughput with Latest Wi-Fi 6 Chipsets
- Hybrid Management (Cloud / Controller / Standalone)
- Automated Radio Optimization by Artificial Intelligence
- 3-Year Hardware Warranty
- Ruijie RG-AP820-I supports maximum of 2.97Gbps wireless throughput when 160MHz bandwidth in 5G radio mode adopted (HE160). It fully complies with Wi-Fi 6 features and guarantees minimal signal interference.
- Ruijie RG-AP820-I is a cost-effective entry level wireless access point with Wi-Fi 6 dual-radio, dual-band design. It not only has the simplicity and flexibility for small and medium sized enterprise, but the features, functionality, and performance quality to scale up to large-enterprise network deployments.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978RG-AP820-I Ruijie AX3000 Wi-Fi 6 Indoor AP
AX3000 Wi-Fi 6 Multi-Gigabit Indoor Access Point RG-AP820-I is an 802.11ax-compliant enhanced wireless Access Point (AP) released by Ruijie Networks for scenarios in the higher education, government, general education, finance, and business sectors, and RG-AP820-I has an SFP port for the Simplified Optical Ethernet solution.
The RG-AP820-I complies with the 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n protocols. It adopts the hardware-independent dual-radio design and can provide a maximum access rate of 2.976 Gbps, which breaks through the bottleneck in wireless performance.
Important factors such as the wireless network security, radio control, mobile access, quality of service (QoS), seamless roaming, and expansion of the Internet of Things (IoT) module are fully taken into account for this product. Therefore, this device can be used in combination with Ruijie Wireless Controllers (ACs) and RG-WIS to implement STA data forwarding, security, access control, and IoT application extension.
This product supports local power supply and power over Ethernet (PoE), which can be selected based on on-site power supply conditions. In addition, this AP can be mounted on the wall or on the ceiling, making the AP especially applicable to scenarios including offices, classrooms and corridors.
Dimensions and Weight | RG-AP820-I |
Dimensions (W × D × H) | 220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.) |
Weight | Main unit: 0.6 kg (1.32 lbs) Mounting bracket: 0.2 kg (0.44 lbs) |
Installation Mode | Ceiling/Wall mounting |
Anti-Theft Lock | Built-in lock and Kensington lock |
Radio Specifications | RG-AP820-I |
RF Design | Dual-radio design, one 2.4 GHz radio and one 5 GHz radio Radio1: 2.4 GHz, 2 streams: 2*2 Radio2: 5 GHz, 2 streams: 2*2 |
Operating Bands | Radio1: 802.11b/g/n/ax, 2.400 GHz to 2.483 GHz Radio2: 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz 802.11a/n/ac/ax, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz (Note: The operating band varies in different countries) |
Date Rate | Radio1: 2.4 GHz, 574 Mbps Radio2: 5 GHz, 2.402 Gbps Combined: 2.976 Gbps |
Antenna | Built-in smart antennas |
Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 3 dBi |
Maximum Transmit Power | 20 dBm (Note: The actual transmit power may vary in different countries and regions according to the regulations.) |
Adjustable Power | 1 dBm |
Modulation | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA |
Receive Sensitivity | 11b: -96 dBm (1 Mbps), -93dBm (5 Mbps), -89 dBm (11 Mbps) 11a/g: -91 dBm (6 Mbps), -85 dBm (24 Mbps), -80 dBm (36 Mbps), -74 dBm (54 Mbps) 11n: -90 dBm@MCS0, -70 dBm@MCS7, -89 dBm @MCS8, -68 dBm@MCS15 11ac: HT20: -88 dBm (MCS0), -63 dBm (MCS9) 11ac: HT40: -85 dBm (MCS0), -60 dBm (MCS9) 11ac: HT80: -82 dBm (MCS0), -57 dBm (MCS9) 11ax: HE80: -82 dBm (MCS0), -57 dBm (MCS9), -52 dBm (MCS11) 11ax: HE160: -77 dBm (MCS0), -50 dBm(MCS11) |
Interface Specifications | RG-AP820-I |
Bluetooth | Bluetooth 5.1 |
Service Ports | One 10/100/1000Base-T adaptive Ethernet copper port, PoE-compliant One 2.5GE SFP port, Compatible with GE SFP transceiver |
Management Port | One RJ45 console port |
GPS Positioning | Not supported |
Status Indicator | One system status indicator |
Button | One reset button |
Power Supply and Power Consumption | RG-AP820-I |
Power Supply | Local power supply: DC 48 V/0.6 A (Note: the power adapter is an optional accessory) PoE power supply: 802.3af-compliant |
Maximum Power Consumption | 12.95 W |
Environment and Reliability | RG-AP820-I |
Temperature | Operating temperature: -10°C to 50°C (14°F to 122°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) (Note: In the altitude range of 3000 m (1.86 miles) to 5000 m (3.11 miles), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft) of altitude increase.) |
Humidity | Operating humidity: 5%RH to 95%RH (non-condensing) Storage humidity: 5%RH to 95%RH (non-condensing) |
Safety Standard | GB 4943.1-2011, IEC 62368-1 |
EMC Standard | EN 300386, GB/T 19286-2015，GB/T 17618-2015 |
Software Specifications | RG-AP820-I | |
WLAN | Maximum number of allowed concurrent STAs | 512* |
SSID hiding | Supported | |
Separate authentication mode, encryption mechanism, and VLAN attributes for each SSID | Supported | |
Remote Intelligent Perception Technology (RIPT) | Supported | |
Intelligent STA recognition technology | Supported | |
Intelligent load balancing based on the number of STAs or traffic | Supported | |
STA limit | SSID-based STA limit Radio-based STA limit | |
Bandwidth limit | STA/SSID/AP-based rate limit | |
Fat/Fit mode switching | When the AP works in fit mode, it can be switched to fat mode via an AC. When the AP works in fat mode, it can be switched to fit mode through the local control port or Telnet mode. | |
Security Features | PSK and Web authentication | Supported |
PPSK/GPSK authentication | Supported | |
PEAP authentication | Supported | |
Data encryption | WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3 | |
MAB authentication | Supported | |
BYOD Solution (Auto 802.1X authentication) | Supported | |
EAP-SIM Authentication | Supported | |
Data frame filtering | Whitelist, static blacklist, dynamic blacklist | |
User isolation | Supported | |
Rogue AP detection and containment | Supported | |
Dynamic ACL assignment | Supported | |
RADIUS | Supported | |
CPU Protection Policy (CPP) | Supported | |
Network Foundation Protection Policy (NFPP) | Supported | |
Routing Switching | IPv4 address | static IPv4 address or dynamic IPv4 address obtained via DHCP |
Multicast-to-unicast conversion | Supported | |
PPPoE client | Supported | |
IPsec VPN | Supported | |
FTP ALG/DNS ALG | Supported | |
Management and Maintenance | Telnet and TFTP management | Supported |
Web management | Supported | |
Wireless marketing | WMC/MCP | |
Fault detection and alarm | Supported | |
Information statistics and logs | Supported | |
Model | Description |
RG-AP820-I | 802.11ax-compliant dual-radio AP. It supports a maximum of four spatial streams and a maximum access rate of 2.976 Gbps. It complies with the 802.11a/b/g/n/ac and 802.11ax modes, allows switching between fit mode and fat mode, and supports 802.3af PoE and power supply by a local DC power adapter. |
This AP is applicable to densely populated areas with simple building structure, no special obstructions, and a large capacity demand. Such areas include meeting rooms, libraries, classrooms, bars, and leisure centers. This AP can be flexibly deployed based on the environment.

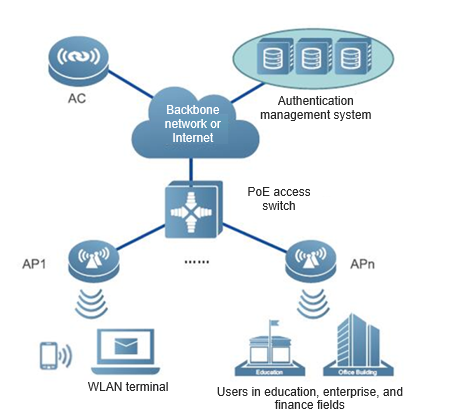

The figure below shows the typical network topology of the RG-AP820-I.
