RG-AP810-L
- RG-AP810-L Wi-Fi 6 Dual-Radio 1775 Mbps Indoor Access Point
- Recommended for indoor scenarios covering hotels, businesses, and governments
- Next-gen Wi-Fi 6 technology, high concurrency, ultra-fast speed
- Intelligent roaming with 802.11k/v/r protocols, smooth roaming experience
- PoE and DC power supply, flexible deployment

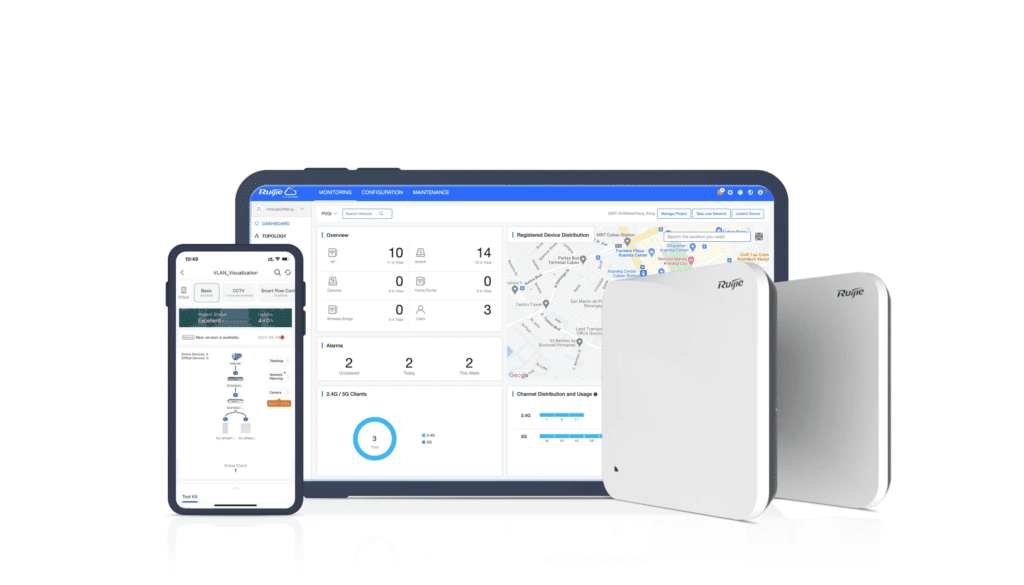

- Ruijie cloud management, intelligent optimization
- 1775 Mbps High Speed with Wi-Fi 6
- Intelligent roaming with 802.11k/v/r protocols, enabling clients to seamlessly access APs with stronger signals, and achieving low roaming delay and zero stalling during roaming.
- With PoE in, a single network cable can transmit both data and power without external power supply. With a 48V DC power supply, there’s no need for PoE switches, reducing networking costs.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978
Dimensions and Weight | RG-AP810-L |
Unit dimensions (W x D x H) | 220 mm x 220 mm x 49 mm (8.7 in x 8.7 in x 2.0 in) |
Shipping dimensions (W x D x H) | 507 mm x 319 mm x 278 mm (20.0 in x 12.6 in x 11.0 in) |
Unit weight | Device: 0.6 kg (1.33 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
Shipping weight | 1.04 kg (2.29 lbs) |
Mounting | Wall/Ceiling-mount (A mounting bracket is delivered with the main unit) |
Lock option | Kensington lock and securing latch |
Wi-Fi Radio | RG-AP810-L |
Radio design | Dual-radio Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
Operating frequencies | Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Country-specific restrictions apply. |
Data rates | Combined peak data rate: 1.775 Gbps 2.4 GHz radio, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz radio, 1.2Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to 2SS HE80 802.11ax client devices (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24 ,36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
Max. antenna gain | 2.8 dBi in 2.4 GHz and 3.6 dBi in 5 GHz The downtilt angle for the maximum gain is roughly 30 degrees. With reference to the pattern of each antenna of the MIMO radios, the maximum gain of the effective per-antenna pattern is 2.3 dBi in 2.4 GHz and 2.7 dBi in 5 GHz. |
Max. transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. |
Power increment | Configurable based on requirement |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-AP810-L | ||
Frequency Band and Protocol | Data Rate | Max. Transmit Power per Transmit Chain | Max. Receive Sensitivity per Receive Chain |
2.4 GHz, 802.11b | 1 Mbps | 23 dBm | –91 dBm |
2 Mbps | 23 dBm | –91 dBm | |
5.5 Mbps | 23 dBm | –90 dBm | |
11 Mbps | 23 dBm | –87 dBm | |
2.4 GHz, 802.11g | 6 Mbps | 23 dBm | –89 dBm |
24 Mbps | 22 dBm | –82 dBm | |
36 Mbps | 22 dBm | –78 dBm | |
54 Mbps | 20 dBm | –72 dBm | |
2.4 GHz, 802.11n (HT20) | MCS0 | 23 dBm | –85 dBm |
MCS7 | 19 dBm | –67 dBm | |
2.4 GHz, 802.11n (HT40) | MCS0 | 23 dBm | –82 dBm |
MCS7 | 19 dBm | –64 dBm | |
2.4 GHz, 802.11ax (HE20) | MCS0 | 23 dBm | –85 dBm |
MCS11 | 15 dBm | –58 dBm | |
2.4 GHz, 802.11ax (HE40) | MCS0 | 23 dBm | –82 dBm |
MCS11 | 15 dBm | –54 dBm | |
5 GHz, 802.11a | 6 Mbps | 23 dBm | –89 dBm |
24 Mbps | 22 dBm | –82 dBm | |
36 Mbps | 22 dBm | –78 dBm | |
54 Mbps | 20 dBm | –72 dBm | |
5 GHz, 802.11n (HT20) | MCS0 | 23 dBm | –85 dBm |
MCS7 | 19 dBm | –67 dBm | |
5 GHz, 802.11n (HT40) | MCS0 | 23 dBm | –82 dBm |
MCS7 | 19 dBm | –64 dBm | |
5 GHz, 802.11ac (VHT20) | MCS0 | 23 dBm | –85 dBm |
MCS9 | 18 dBm | –60 dBm | |
5 GHz, 802.11ac (VHT40) | MCS0 | 23 dBm | –82 dBm |
MCS9 | 18 dBm | –57 dBm | |
5 GHz, 802.11ac (VHT80) | MCS0 | 23 dBm | –79 dBm |
MCS9 | 18 dBm | –53 dBm | |
5 GHz, 802.11ax (HE20) | MCS0 | 23 dBm | –85 dBm |
MCS11 | 16 dBm | –58 dBm | |
5 GHz, 802.11ax (HE40) | MCS0 | 23 dBm | –82 dBm |
MCS11 | 16 dBm | –54 dBm | |
5 GHz, 802.11ax (HE80) | MCS0 | 23 dBm | –79 dBm |
MCS11 | 16 dBm | –52 dBm | |
Bluetooth Radio | RG-AP810-L |
Bluetooth | Bluetooth 5.1 |
Antenna type | 1 x onboard built-in omnidirectional antenna |
Max. antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees |
Max. transmit power | 17 dBm (GFSK) 14 dBm (π/4-DQPSK, 8-DPSK) |
Receive sensitivity | –95.5 dBm (DH5) –95 dBm (π/4-DQPSK) –87.5 dBm (8-DPSK) |
Ports | RG-AP810-L |
Fixed service port | Uplink: 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation ● Compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE |
Fixed management Port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Power Supply and Consumption | RG-AP810-L |
Input power supply | The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++). Note: ● If both DC power and PoE are available, DC power is preferred. |
Power consumption | Max power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W |
Environment and Reliability | RG-AP810-L |
Temperature | Operating temperature: –10°C to +50°C (14°F to 122°F) Storage Temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
Humidity | Operating humidity: 5% to 95% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
Environment standard | Storage and shipment environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Certifications and Regulatory Compliance | RG-AP810-L |
Regulatory compliance | GB 4943.1, GB/T 17618, GB/T 19286 CE Marked, EN 300386, EN 301 489, EN 50155, EN 50121, IEC/EN 62368-1 (replacing IEC/EN 60950-1), FCC Part 15E RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU |
Certifications | Wi-Fi Alliance: ● 2.4 GHz and 5 GHz Spectrum Capabilities ● Wi-Fi CERTIFIED a, b, g, n, ac, ax (6) ● WPA2™-Enterprise 2018-04 ● WPA2™-Personal 2021-01 ● WPA3™-Enterprise 2020-02 ● WPA3™-Personal 2020-12 ● WPA™-Enterprise ● WPA™-Personal ● WMM®, Wi-Fi Agile Multiband™ |
*For more country-specific regulatory information and approvals, contact your local sale agency.
Applicable Software Version | RG-AP810-L |
Applicable software version | RGOS11 |
WLAN | RG-AP810-L |
Max. number of associated STAs | 256 (up to 128 STAs per radio) |
Max. number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
STA management | SSID hiding Band steering Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming |
Security and Authentication | RG-AP810-L |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK, PPSK, web, 802.1X, PEAP, WPA, WPA2, and WPA3 authentication Data encryption: WEP (64/128-bit), WPA-TKIP, WPA-PSK, WPA2-AES, WPA3 |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | WIDS (Wireless Intrusion Detection System) User isolation Rogue AP detection and containment |
ACL | Dynamic ACL assignment ● ACL assignment based on time spans ● ACL assignment (complete entry) based on MAC addresses ● Execution of pre-configured ACLs (entry index) based on MAC addresses |
CPP | Supported |
NFPP | Supported |
Routing and Switching | RG-AP810-L |
IP service | Static IPv4 address and DHCP-assigned IPv4 address DHCP Snooping, Option 82, DHCP Server, DHCP Client |
Multicast | Multicast-to-unicast conversion |
IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping IPv6 DHCP Client |
IP routing | IPv4/IPv6 static routing |
VPN | PPPoE Client IPsec VPN, up to five IPsec tunnels |
Management | RG-AP810-L |
Network management | SNMP v1/v2c/v3 Syslog Debugging |
Network management platform | Web-based management (Eweb) Ruijie Cloud |
User access management | Console, SSH, and Telnet-based management FTP Client and TFTP Client |
Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
Model | Description |
RG-AP810-L | Wi-Fi 6 (802.11ax) dual-radio indoor wireless access point Up to four spatial streams Data rate of up to 1.775 Gbps 1 x 10/100/1000Base-T uplink port, supporting PoE and DC power supply Bundled with Ruijie Cloud Service lifetime license. Note: ● The PoE injector is sold separately, which could be purchased from Ruijie. ● The DC power adapter should be purchased from a third-party vendor separately if needed. |
RG-E-120(GE) | 1-port PoE injector (1000BASE-T, IEEE 802.3af-compliant) |
