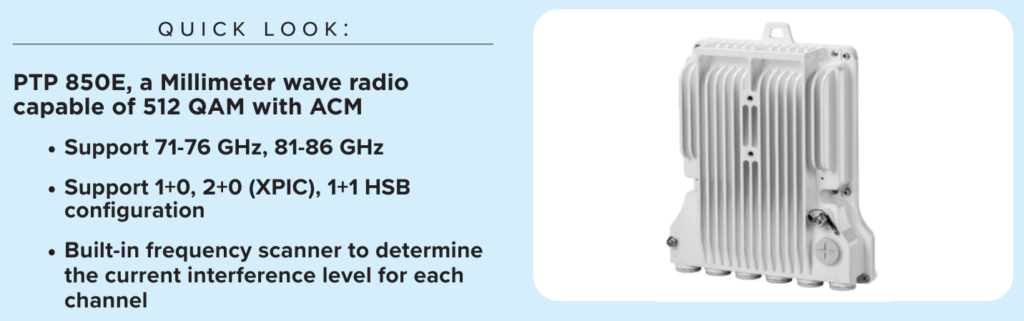

Cambium PTP 850E Millimeter Wave Radio
PTP 850E E-band Radio, an ultrahigh capacity, all-outdoor Ethernet backhaul operating in the E-band (71‒86 GHz). PTP 850E supports 250, 500, 1000, and 2000 MHz channels with BPSK to 512 QAM and delivers up to 10 Gbps capacity in 1+0 configuration. PTP 850E can also be used in multiband configuration with PTP 820C, PTP 820S, or third-party microwave radios to provide robust links of up to 10 Gbps.
C800085B001A Datasheet
| RADIO | |
| Radio Specs | 71-76 GHz, 81-86 GHz 1+0, 2+0 (XPIC)* Multiband with PTP 820C Radio Features |
| Radio Features | BPSK to 512 QAM with hitless ACM Adaptive Coding Modulation and Bandwidth (ACMB) ATPC* Adaptive Bandwidth Notification (ABN) |
| ETHERNET | |
| Ethernet Interfaces | Port 1: DC port Port 2: RJ45, 1 GE/Management/PoE Port 3: SFP cage, 1/ 2.5 GE Multiband Port |
| Ethernet Features | MTU – 9612 Bytes 4K VLANs VLAN add/remove/translate Y.1731 Ethernet OAM Adaptive Bandwidth Notification (ABN), also known as EOAM |
| TECHNICAL SPECIFICATIONS | |
| Mechanical Specs | Dimensions (Direct Mount): 322mm(H), 227/270mm(W), 86mm(D), 5.5kg Dimensions (43dBi integrated Antenna): 341mm(H), 270/276mm(W), 103mm(D), 7kg Pole Diameter Range (for Remote Mount Installation): 8.89 cm – 11.43 cm |
| Environmental Spec | -33°C to +55°C (-45°C to +60°C extended) -27°Fto +131°F (-49°Fto +140°F extended) |
| Power Input Specifications | Standard Input: -48 VDC IDU DC Input range: -40.5 to -60 VDC Power Redundancy option by using both a DC power input and a passive PoE injector simultaneously |
