PTP 450i

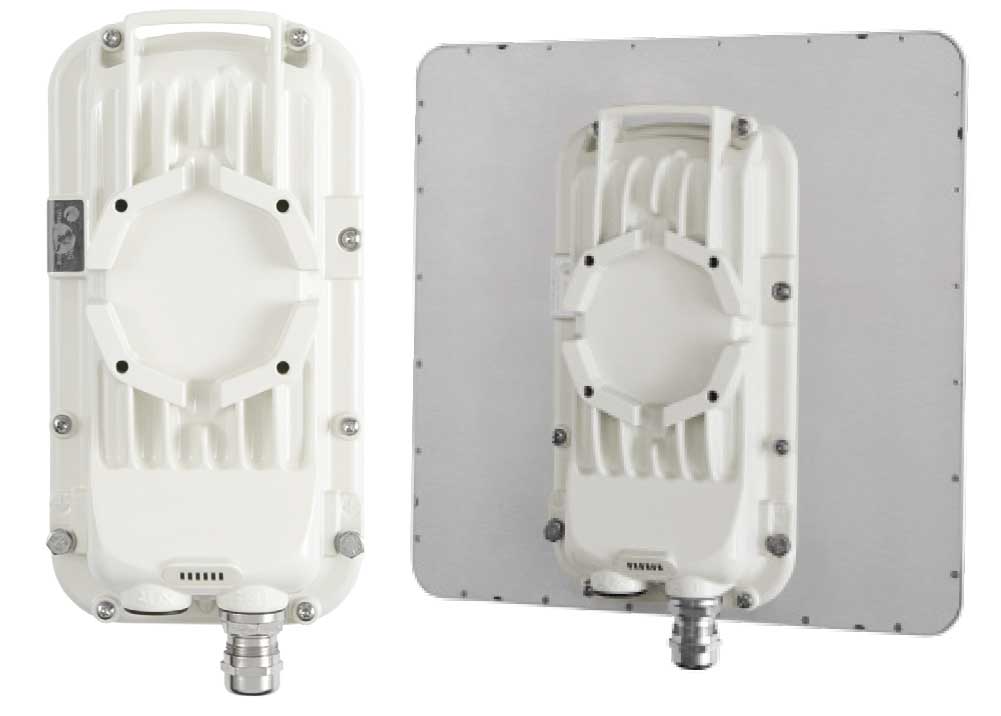

- PTP 450i with 5GHz End, Connectorized ODU
- PTP450i 5GHz End, ODU with Integrated High Gain Antenna (C050045B004B)
- Ultra-wide band radios: 5 GHz or 3 GHz
- Rugged metal enclosure
- 2×2 OFDM MIMO radio capable of up to 300 Mbps per sector
- Support 3Ghz with C030045B001A and Antenna C030045B002A
- 3 GHz: Customizable to 50 KHz (3300 – 3900 MHz)
- 5 GHz: Configurable on 2.5 MHz increments (4900 – 5925 MHz)
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Cambium PTP 450i Fixed Wireless Backhaul
The ultra-wide band PTP 450i Integrated features dynamic interference filtering, IP-66/67 enclosure, and multifunction AUX port. The PTP 450i boasts triple the power and range of a 450 product, along with ruggedization to withstand industrial and public safety environments. Available as PMP or PTP.
ULTRA-WIDE BAND RADIOS
Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
RUGGED METAL ENCLOSURE
Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/ HAZLOC certified models available for hazardous deployments.
DYNAMIC INTERFERENCE FILTERING
Provides industryleading noise isolation for improved performance.
UPDATED FPGA AND SOC ARCHITECTURE
Triples the processing power compared to PMP 450.
MULTIFUNCTION AUX PORT
Allows for greater flexibility for deployment by adding a camera or other PoE directly.
INCREASE THROUGHPUT
Now capable of up to 300 Mbps per sector in a 40 MHz channel.
PTP 450i Datasheet
| Spectrum | ||
| Channel Spacing | 3 GHz: Customizable to 50 KHz | 5 GHz: Configurable on 2.5 MHz increments |
| Frequency Range | 3 GHz: 3300 – 3900 MHz | 5 GHz: 4900 – 5925 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| Interface | ||
| MAC (Media Access Control) Layer | Cambium Networks proprietary | |
| Physical Layer | 2×2 MIMO OFDM | |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) | |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP | |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM | |
| MTU | 1700 bytes | |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID | |
| Security | ||
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) | |
| Performance | ||
| Maximum Deployment Range | Up to 200 kilometers (124 miles) depending on configuration | |
| Latency | 3 – 5 ms, typical | |
| GPS Synchronization | Yes, via Autosync (UGPS, CMM4 or CMM5) | |
| Quality of Service | Diffserve QoS | |
| Physical | ||
| Antenna Connection | 50 ohm, N-Type (Connectorized version only) | |
| Surge Suppression (LPU fitted) | EN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A | |
| Mean Time Between Failure | >40 Years | |
| Dust and Water Ingress Protection Rating | IP67, IP66 | |
| Temperature / Humidity | -40°C to +75°C (-40°F to +167°F), 0-100% condensing | |
| Weight | Connectorized Approx. 2.0 kg (4.5 lbs) Integrated Approx. 2.5 kg (5.5 lbs) | |
| Wind Survival | 322 km/h (200 mi/h) | |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 | |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 | |
| External Icing | NEMA 250-2003 Section 5.6 | |
| Dimensions (HxWxD) | Connectorized 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”) Integrated 31.0 x 31.0 x 6.4 cm (12” x 12” x 2.5”) | |
| Power Consumption | 15 W typical, 18 W max, Using Aux port PoE for another device will increase power draw | |
| Input Voltage | 48-59 V DC, 802.3at compliant | |
| Mounting | Wall or Pole mount with Cambium Networks Model # N000045L002A | |
