Protect Viewport
- Protect Viewport easy-to-use hub for viewing Protect camera feeds on an HDMI display

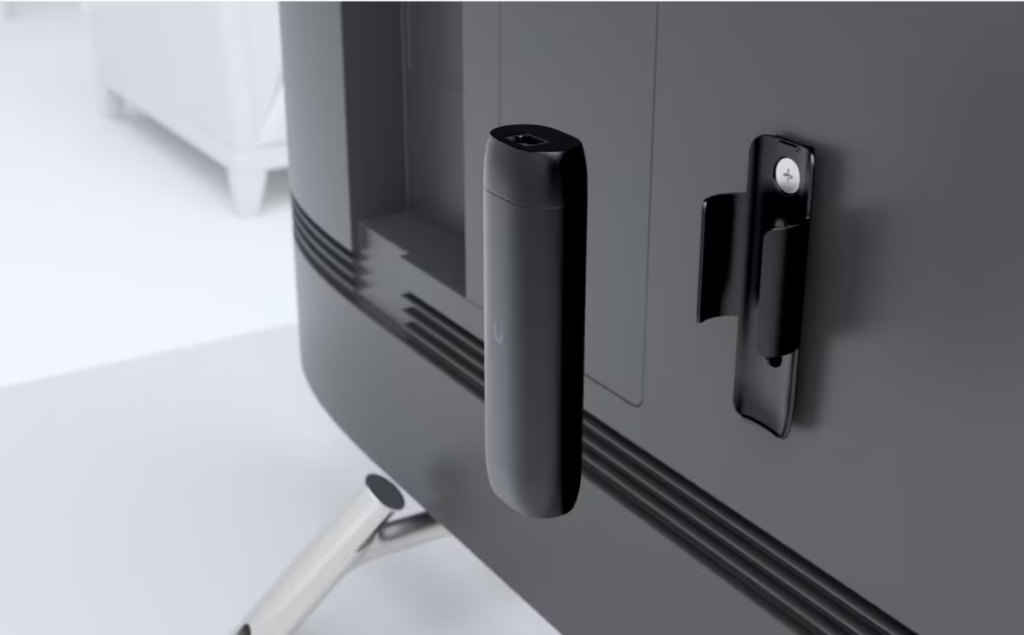

- Flexible mounting
- 16-stream matrix view support
- Connect and power using PoE
- HDMI out to TV or another video device
- Ubiquiti Networks UniFi Protect HDMI Live View Appliance
- UFP-VIEWPORT is Black
- W125700335 (Appliance UFP VIEWPORT, Black)
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Ubiquiti Protect Viewport HDMI Live View

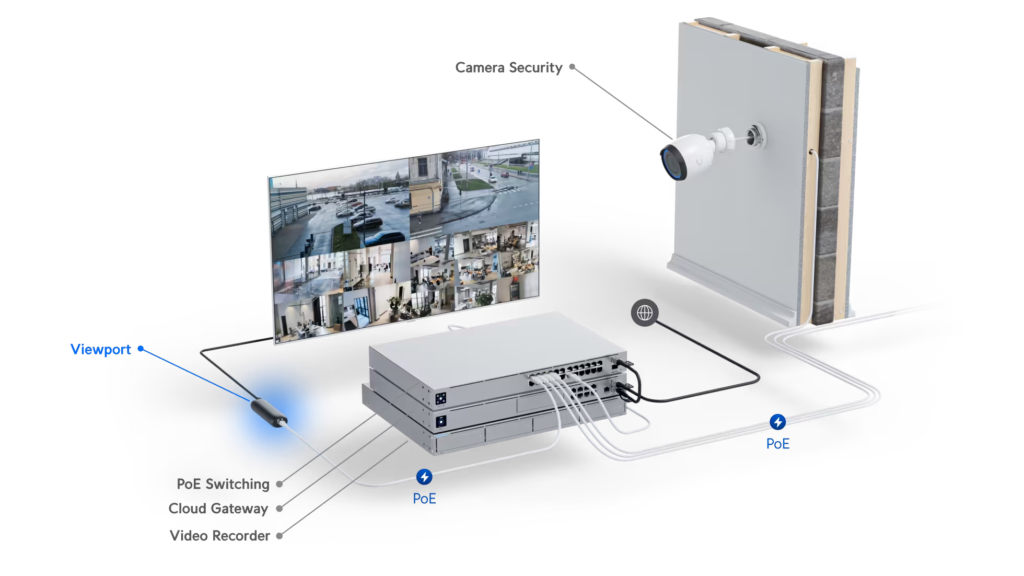

The UniFi® Protect ViewPort allows you to view your UniFi Protect camera feeds on a n HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort – UFP-VIEWPORT offer s 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
UniFi Protect ViewPort PoE Datasheet
Technical Specifications
Build Features
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 157 x 52 x 37 mm (6.18 x 2.05 x 1.46″) |
| Weight | Without mount: 230 g (8.11 oz) With TV mount: 252 g (8.89 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Hardware | |
| Processor | Octa-core ARM® |
| Memory | 4 GB low power DDR4X |
| Networking interface | GbE RJ45 port |
| Power method | PoE |
| Max. power consumption | 9.5W |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| Bluetooth | 5.0 |
| Antennas | Bluetooth |
| Antenna gain | 2 dB |
| Button | Factory-reset |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 20 to 80% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Build Features
