Professional 24 PoE

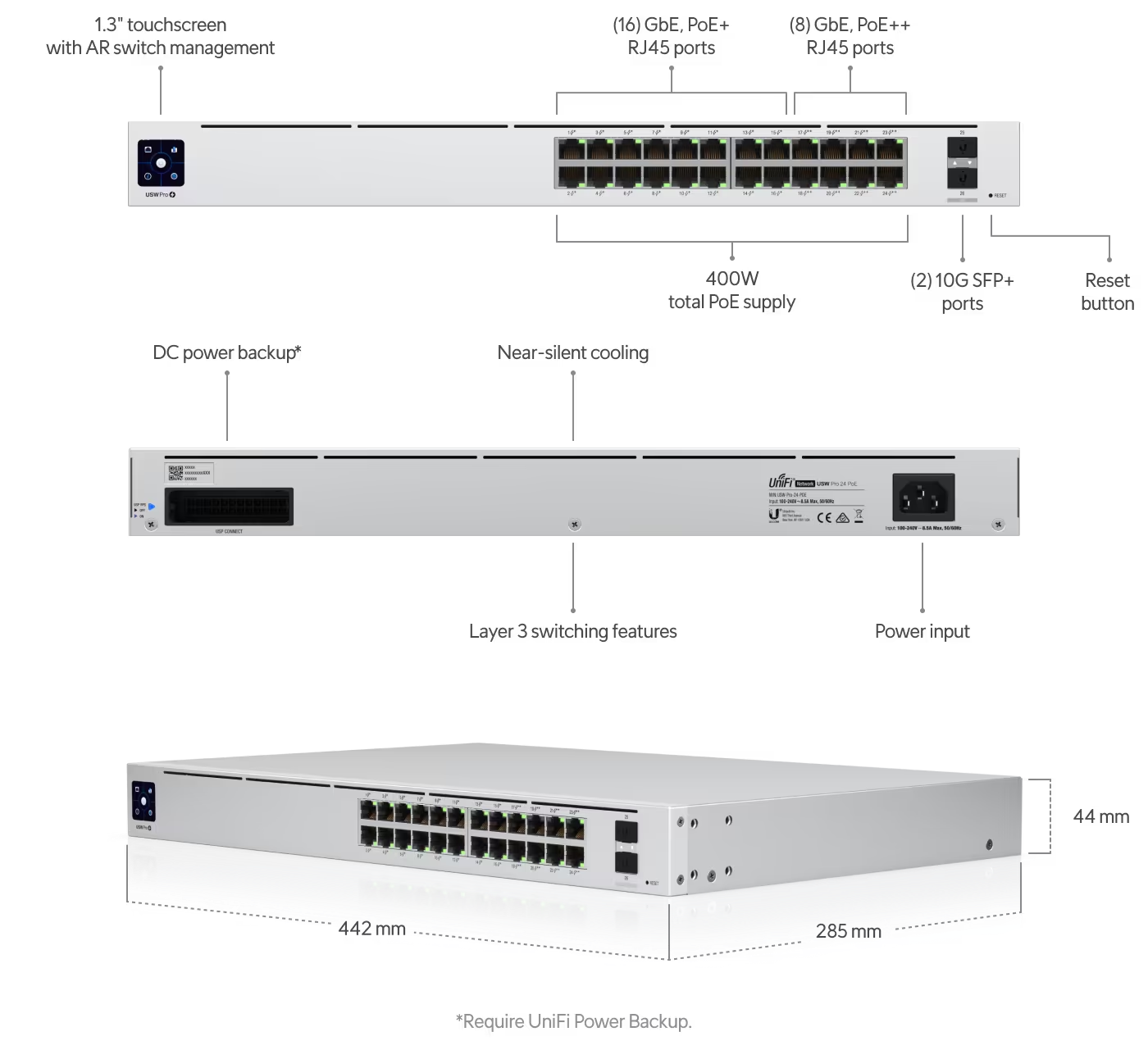

- Professional 24 PoE a 24-port, Layer 3 switch capable of high-power PoE++ output
- (16) GbE PoE+, (8) GbE PoE++ ports
- (2) 10G SFP+ ports
- 400W total PoE availability
- DC power backup-ready
- Layer 3 switching
- Near-silent cooling
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978UBiQuiTi UniFi Pro PoE 24 Port Gigabit Managed PoE Network Switch with SFP+

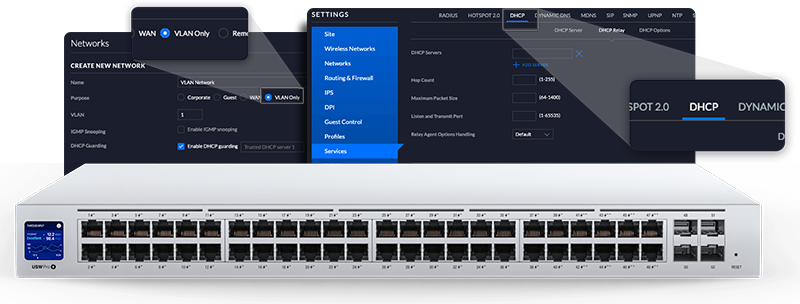

Professional 24 PoE – UniFi Switch Pro 24 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (16) 802.3at (PoE+) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

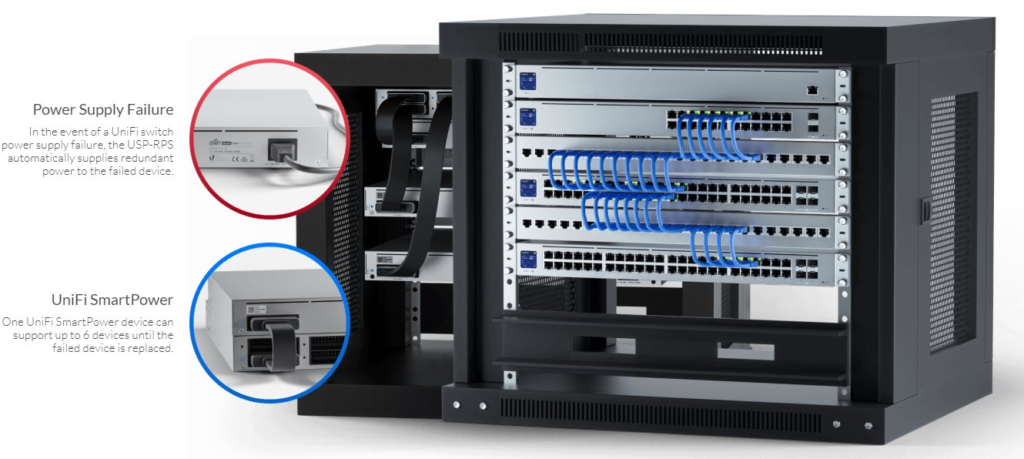

The UniFi Switch Pro 24 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.The UniFi Switch USW-Pro-24-POE (400W) is the ideal access layer switch for any UniFi solution it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy.
UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
USW-Pro-24-POE (400W) Datasheet
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7″) |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| PoE interface | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎 |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port by PSE | PoE+: 32W PoE++: 64W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.10.5 and later |
