IF042A
- IF042A – P4.2 LED Signage that combines brilliant picture quality and flexible design options in any environment
- Best-in-class picture quality with advanced image refinement technology
- Support for HDR picture quality up to 8K for immersive viewing experience
- Effortless and flexible installations regardless of space constraints
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978

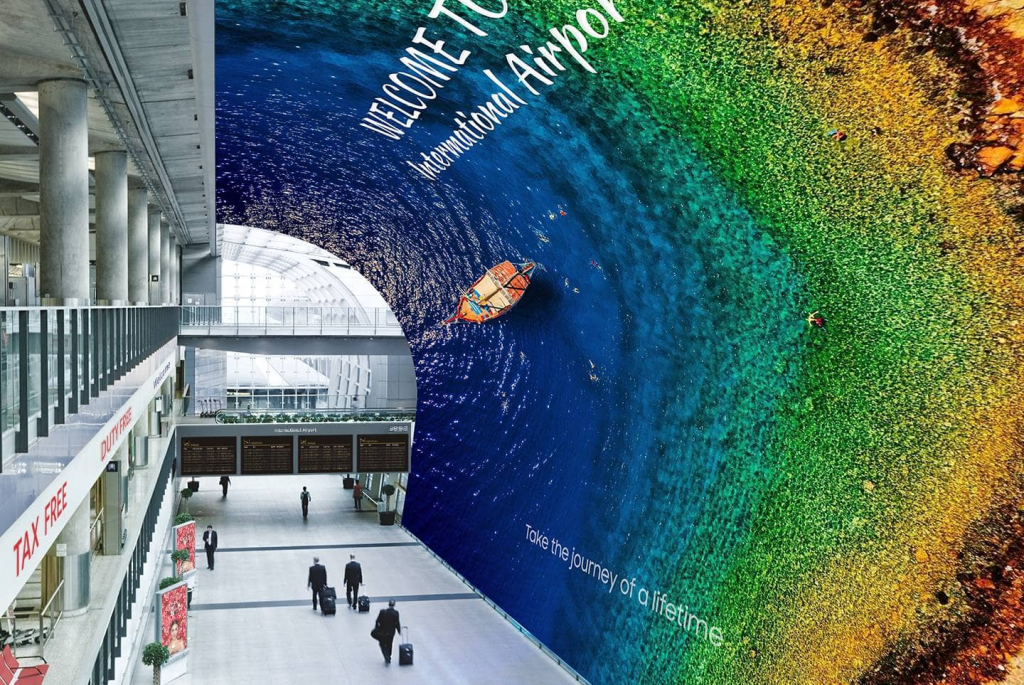

Completely captivating IF042A Fully flexible
LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung’s IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.
Best-in-class LED picture quality
Drawing on Samsung’s industry leadership experience and years of innovation in visual display technology, the displays produce images with vivid color expression, reduced noise and a full range of grays and blacks.

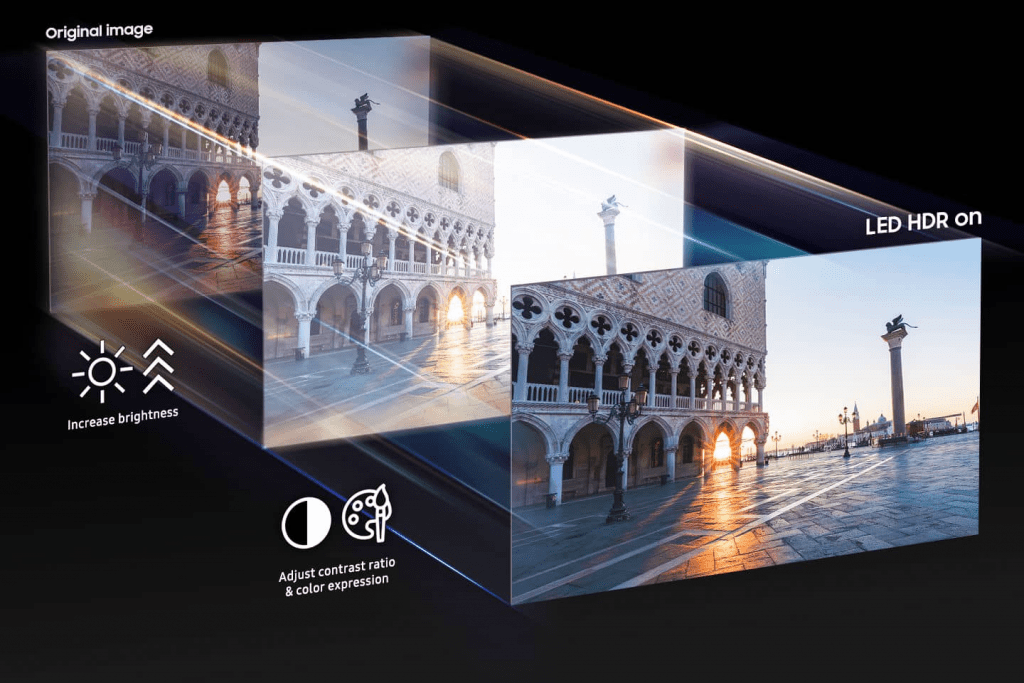

Clearly refined visuals
LED HDR turns any content into HDR-level without requiring special metadata. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum brightness levels while avoiding glare, and Color Mapping ensures an accurate color presentation.
Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is. The IFA series supports HDR10+ which optimizes brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended.

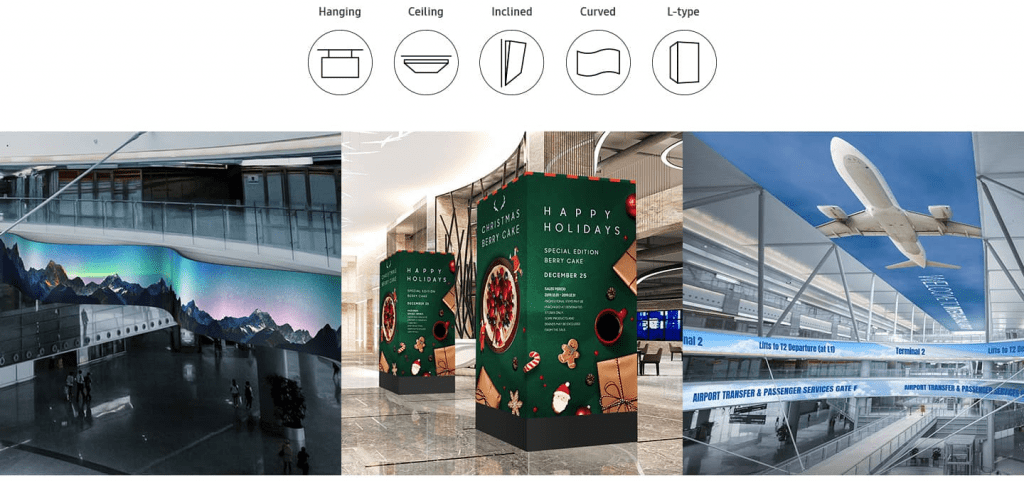

Flexible installation for any location
IFA series enables a variety of installation options to meet any environmental specifications. With support of hanging, ceiling, curved, inclined and inner and outer L-shaped installations, businesses can have complete control to create the ideal display for their space.
P4.2 LED Signage that combines brilliant picture quality and flexible design options in any environment Datasheet
Physical Parameter
- Pixel Pitch:
4.2 mm - Dimensions: (㎜, LxHxD, per cabinet):
806.4×453.6×37.8 mm
- Pixel Configuration:
1 red, 1 green, 1 blue - Diagonal (inch, DiagonalxD, per cabinet):
36.4×1.5 inch
- Configuration (LxH, per cabinet):
192×108 pixels - No. of Modules (WxH, per cabinet):
4 x 3
- Diode Type:
Surface Mount Device (SMD) - Weight (per cabinet/per ㎡):
11.7 kg / 32.0 kg
Optical Parameter
- Brightness(1)
1,700 nit / 1,200 nit - Viewing angle – Vertical
160°
- Contrast Ratio(2)
10,000 : 1 - Bit Depth
16 bit (Internal processing 18bit)
- HDR:
LED HDR / HDR10+ support / AI Picture - Color Temperature – Default
6,500K ± 500K (Floating bin)
- Viewing angle – Horizontal
160° - Color temperature – Adjustable
2,800K ~ 10,000K (using S-Box)
Electrical Parameter
- Video Rate
50/60 Hz - Heat generation – Max(BTU/m², BTU/cabinet)
1,980 (BTU/m²) / 717 (BTU/Cabinet)
- Cabinet – Input Power Range
100~240 VAC, 50/60 Hz - Heat generation – Typical(BTU/m², BTU/cabinet)
660 (BTU/m²) / 239 (BTU/Cabinet)
- Power consumption – Max
580 (W/m²) / 210 (W/Cabinet) - Refresh rate(3)
11,520 Hz
- Power consumption – Typical
193 (W/m²) / 70 (W/Cabinet)
Operation Conditions
- Power Redundancy:
Yes - LED Lifetime:
100,000 hours to half brightness
- Working Temperature / Humidity
0°C~+40°C / 10%~80%RH
- Storage Temperature / Humidity:
-20°C~+45°C / 5%~95%RH
- IP Rating:
IP20
Connectivity
- Controller
SNOW-AAE,SNOW-1810U
- Connectivity
※ HDBT is used for connecting only BT/Wifi module
Certification
- Safety
62368-1, 60950-1
- EMC
Class B
- Eye-protection
TUV LBL (Low Blue Light)
- Fire-protection
EN13501-1 Class B (TBD)
Service
- Service
Front
Package
- Box Dimension (WxDxH)
927 x 592 x 161 mm
- Package Weight (per cabinet)
15.5 kg
