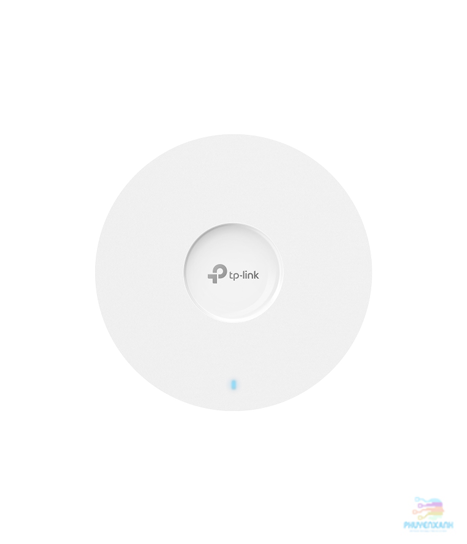

EAP683 LR
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
AX6000 Ceiling Mount WiFi 6 Access Point
Seamless Integration into Omada EAP683 LR SDN
Datasheet EAP683 LR
| Giao diện | 1× 2.5 Gigabit PoE+ Port |
|---|---|
| Nút | Reset |
| Bộ cấp nguồn | • 802.3at PoE • 12 V / 2 A DC Note：Power adapter is not included. |
| Điện năng tiêu thụ | • EU: 20.43W • US: 23.69W |
| Kích thước ( R x D x C ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Ăng ten | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |
| Lắp | Ceiling /Wall Mounting (Kits included) |
| Coverage | 185㎡(2000ft²)*** |
|---|---|
| Concurrent Clients | 510+** |
| Chuẩn Wi-Fi | IEEE 802.11ax/ac/n/g/b/a |
| Băng tần | 2.4 GHz and 5 GHz |
| Tốc độ tín hiệu | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Tính năng Wi-Fi | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (4*4 MU-MIMO DL&UL) • MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO] • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Bảo mật Wi-Fi | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Công suất truyền tải | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Quản lý kiểm soát truy cập MAC | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Quản lý dựa trên Web | HTTP/HTTPS |
| Quản lý L3 | Yes |
| Quản lý nhiều trang Web | Yes |
| Quản lý VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Chứng chỉ | CE,FCC,RoHS |
|---|---|
| Sản phẩm bao gồm | • EAP683 LR • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Môi trường | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
- †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
- ‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz, compared to 80 MHz for general WiFi 6 APs.
- §Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /vn/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
- *Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /vn/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
- **The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
- ***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
- △Use of Omada Cloud-Based Controller may incur device license fees.
