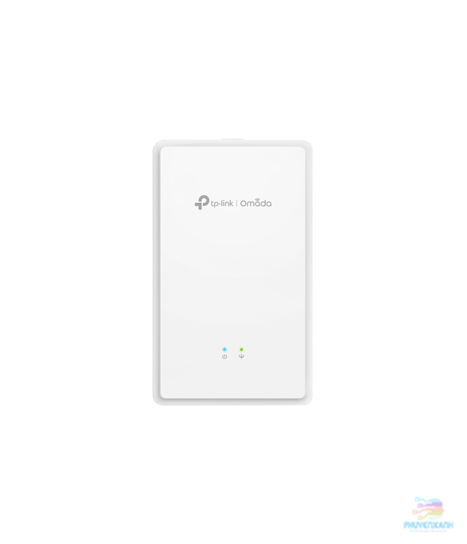

EAP615GP-Wall - AX1800 Wi-Fi 6 Wall Plate GPON Access Point
Complete Omada Optical Networking Solution
EAP615GP-Wall – The Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
Datasheet EAP615GP-Wall
| Giao diện | • 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports |
|---|---|
| GPON Interface | • Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km |
| Nút | • Reset • LED |
| Bộ cấp nguồn | 100–240V~ 50/60Hz, 0.5A |
| Điện năng tiêu thụ | 12.2W |
| Khối lượng | 320g |
| Kích thước ( R x D x C ) | 5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm) |
| Antenna hỗ trợ | Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi |
| Lắp Đặt | Wall Mounting (Kits included) |
| Coverage | 50㎡(600ft²)** |
|---|---|
| Concurrent Clients | 120+* |
| Chuẩn Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax |
| Băng tần | 2.4 GHz and 5 GHz |
| Tốc độ tín hiệu | • 5 GHz: 1201 Mbps† • 2.4 GHz: 574 Mbps |
| Tính năng Wi-Fi | • 2×2 (2.4G & 5G) MU-MIMO‡ • HE80 (80 MHz Bandwidth)‡ • OFDMA‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP |
| Bảo mật Wi-Fi | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Công suất truyền tải | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <24 dBm(5 GHz, band3, EIRP) • FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz) |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Quản lý kiểm soát truy cập MAC | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Quản lý dựa trên Web | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Chứng chỉ | CE, FCC, RoHS, IC |
|---|---|
| Sản phẩm bao gồm | • EAP615GP-Wall • Wall Mounting Kit • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Môi trường | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
- †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
- ‡Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.
- §Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
- △This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.
- ^Certain TP-Link OLT models supporting Omada SDN are available, and Omada OLT devices are being developed.
- #Mesh support requires firmware version 1.0.6 or later.
- *The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
- **Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
