Name: Omada Networks EAP603GP-Desktop - GPON AX1800
Brand: Omada Networks
SKU: AX1800

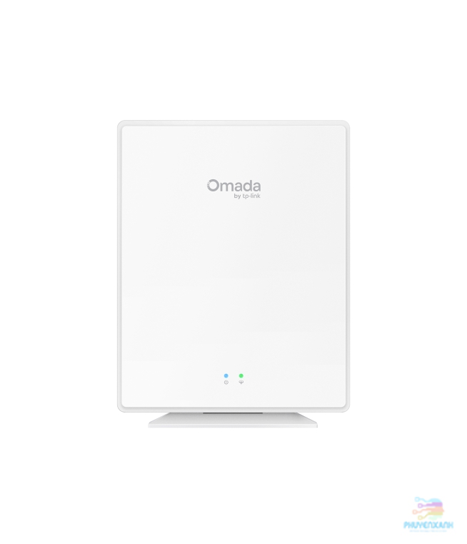

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point

Giao diện	• 1x GPON Port • 1x FXS Port • 4x Gigabit Ethernet Ports
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Nút	• Reset • LED
Bộ cấp nguồn	12V/1.5A DC
Điện năng tiêu thụ	15.5 W
Khối lượng	437g
Kích thước ( R x D x C )	6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Ăng ten	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 4.5 dBi
Lắp	Desktop / Wall mouting (Kits included)

Coverage	140㎡(1500ft²)^**
Concurrent Clients	120+^*
Chuẩn Wi-Fi	IEEE 802.11 a/b/g/n/ac/ax
Băng tần	2.4 GHz and 5 GHz
Tốc độ tín hiệu	• 5 GHz: 1201 Mbps^† • 2.4 GHz: 574 Mbps
Tính năng Wi-Fi	• 2×2 (2.4G & 5G) MU-MIMO^‡ • HE80 (80 MHz Bandwidth)^‡ • OFDMA^‡ • Seamless Roaming ^§ • Mesh^§ • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Bảo mật Wi-Fi	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Công suất truyền tải	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <27 dBm(5 GHz, band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Quản lý kiểm soát truy cập MAC	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Quản lý dựa trên Web	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.

Chứng chỉ	CE, FCC, RoHS, IC
Sản phẩm bao gồm	• EAP603GP-Desktop • Desktop/Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Môi trường	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
^‡Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.
^§Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
^△This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.
^{^}Certain TP-Link OLT models supporting Omada SDN are available, and Omada OLT devices are being developed.
^*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
^**Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
