EAP223 (EU) V2
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter is not included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×

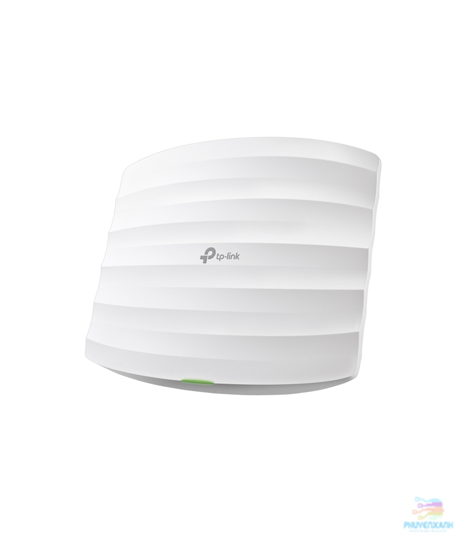

EAP223 (EU) V2 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Superior Wi-Fi Speeds with MU-MIMO Technology: Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
- Omada SDN—Smarter Cloud Solution for Business Networking: Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
- Hassle-Free Centralized Cloud Management: 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
- Secure Guest Network with SMS Authentication: The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and boost your business.
- Multiple PoE Options for Easy Installation: EAP223 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
- Easy Management with the Omada App: Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Datasheet EAP223 (EU) V2
| Giao diện | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
|---|---|
| Khóa bảo mật vật lý | Yes |
| Nút | Reset |
| Bộ cấp nguồn | • 802.3af PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included) |
| Điện năng tiêu thụ | 12.6 W |
| Kích thước ( R x D x C ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Ăng ten | 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi |
| Lắp | Ceiling /Wall Mounting (Kits included) |
| Coverage | 115㎡(1250 ft²)§ |
|---|---|
| Concurrent Clients | 220+** |
| Chuẩn Wi-Fi | IEEE 802.11ac/n/g/b/a |
| Băng tần | 2.4 GHz and 5 GHz |
| Tốc độ tín hiệu | • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps |
| Tính năng Wi-Fi | • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming(802.11k/v/r)* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Bảo mật Wi-Fi | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support |
| Công suất truyền tải | • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz) |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Quản lý kiểm soát truy cập MAC | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Quản lý dựa trên Web | HTTP/HTTPS |
| Quản lý L3 | Yes |
| Quản lý nhiều trang Web | Yes |
| Quản lý VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Chứng chỉ | CE, FCC, RoHS |
|---|---|
| Sản phẩm bao gồm | • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Môi trường | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
- †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
- ‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
- *Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
- **The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
- §Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
