DMDP-500

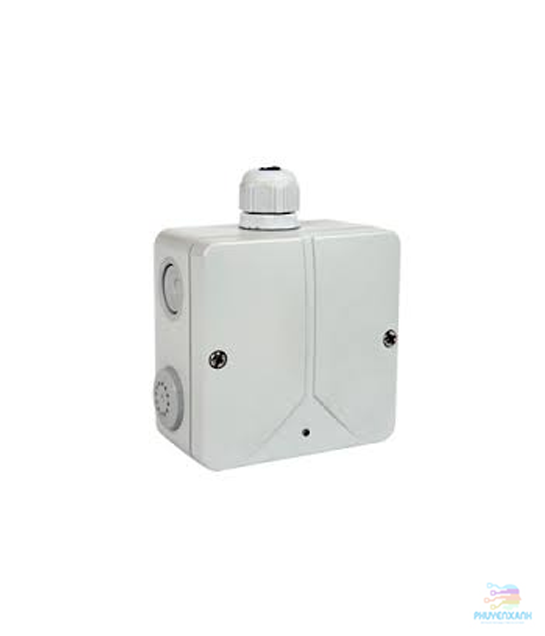

- DMDP-500 Compact carbon monoxide detector
- Compact carbon monoxide detector with electrochemical cell. Antivandal protection (wall fastening, shock resistance, protection against water).
- Connection to 2 wires without polarity. Diagnostic LED. Resolution: 1 ppm.
- Certificate UNE 23300: 1984. Dimensions: 93 x 93 x 55 mm. Ten years life time.
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Detnov DMDP-500 Carbon Monoxide Detector
- DETNOV’s 500 series of detectors form part of the CMD-500 CO detection system. These have been developed and certifi ed according to UNE 23300:1984 regulation and the Spanish Technical Building Code [Código Técnico de Edifi cación]
- The DMDP-500 CO detector has been developed using the latest technological advances. Their novel design makes this range ideal for any type of installation and especially for those where functionality and a high protection index is needed.
- The electrochemical cell and the algorithms used to detect the concentration of CO enable the DMDP-500 to provide high reliability and precision in CO detection. The DMD-500 has 1 ppm resolution and the detector’s response time is less than 10 seconds.
- CO detectors are insensitive to polarity and are connected to the CMD-500 carbon monoxide control panels through two wires. Any wiring topology is supported to adapt the system to the installation’s requirements. The connection line can support up to 32 CO detectors with a maximum length of 2 km.
- The DMDP-500 CO detector is designed to be used in places where CO detection points must be placed on the wall, and in places where a high protection index is needed.
Car parks or other places where concentrations of CO can accumulate and a high protection index is required
- UNE 23300:1984 approved
- Certifi cate number LOM 08MOGA3532
- Two-wire connection without polarity
- Electrochemical cell
- 1 pm resolution
- 10 second response time
- 200 m2 protected area (limited by regulation)
DMDP-500 Datasheet
