cnPilot r195P
- cnPilot r195P support Dual-radio, 802.11ac (5 GHz/2.4 GHz)
- Five Gigabit Ethernet ports
- High-gain duplex antennas for extended range
- TR-069, TR-098, TR-0104, TR-0106, TR-0143
- r195P features 30 V power out, ATA ports
- r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Cambium cnPilot r195P Wi-Fi Router For Residential and Small Business, 802.11ac Dual-Radio, 2x2

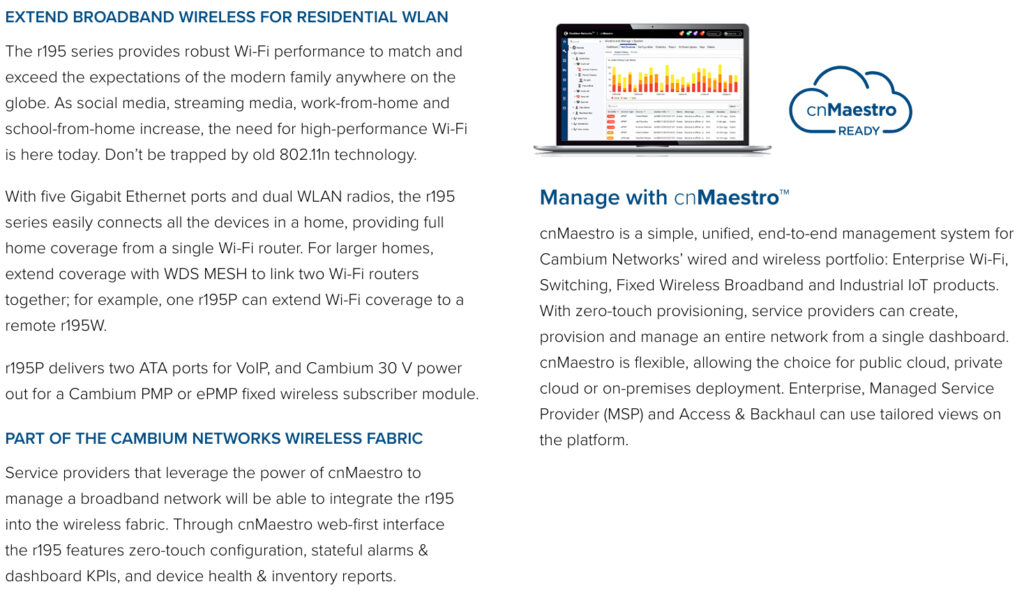

Extend Broadband Wireless For Residential WLAN
The r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and
school-from-home increase, the need for high-performance Wi-Fi is here today. Don’t be trapped by old 802.11n technology.
Part of the Cambium Networks Wireless Fabric
Service providers that leverage the power of cnMaestro to manage a broadband network will be able to integrate the r195
into the wireless fabric. Through cnMaestro web-first interface the r195 features zero-touch configuration, stateful alarms & dashboard KPIs, and device health & inventory reports.
PL-R195WUSA-US Datasheet
| Wi-Fi Protocols | VHT MCS rates, 16/64/256-QAM, 20/40/80 MHz AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, IEEE 802.11 a/ac/b/d/e/g/h/i/n |
|---|---|
| Other Network Protocols | DHCP/PPPoE, HTTP Server for Web Management, TFTP/HTTP for Auto Provisioning, DHCP Option Codes for SIP (RFC3361), DNS/DNS SRV (RFC1706 and RFC 2782), IEEE802.1Q VLAN, 802.1P, DSCP, IGMPv2 snooping, PPTP/L2TP VPN |
| FCC | Ch 1-11, 36-48, 149-165 |
|---|---|
| ISED | Ch 1-11, 36-48, 149-165 |
| ETS | Ch 1-13, 32-48 |
| ROW | (Individual country limits may apply) Ch 1-14, 36-48, 149-165 |
| Max PHY Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Ports | Five x IEEE 100/100/1000 Mbps Ethernet Auto Sensing USB 2.0 |
| Voice | yes, 2 ATA ports via RJ11 |
| Power | 12 VDC, 3 A, power out on WAN port, 30 VDC 2.1 mm x 5.5 mm CP, DC barrel connector Localized power supply included |
| Antenna | 2.4 GHz: 5 dBi 5 GHz: 5 dBi Omni |
| Max EIRP | 2.4 GHz: 27 dBm 5 GHz: 20 dBm |
| Dimensions | 200 mm x 140 mm x 50 mm (7.87 in x 5.51 in x 1.97 in) |
| Weight | 900 g (1.98 lbs) |
| LEDs | Power, WLAN, Port status LEDs |
| Ambient Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Storage Temperature | -20ºC to 70ºC (-4ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| Certifications (Compliance) | FCC, IC, CE, EN 60601-1-2, EN 60950-1 WEEE & RoHS |
| WLAN | 64 clients, 8 SSIDs |
|---|---|
| Management Features | Firmware Upgrade, Web Management Interface, Local and Remote Syslog (RFC3164), Auto Provisioning, Time Synchronization, Multi User Level |
| Management Protocols | TR-069, TR-098, TR-0104, TR-0106, TR-0143 cnMaestro Cloud or on-premises VM, SNTP, SNMPv2, Telnet |
| Authentication SSID Security | WEP, WPA-PSK (TKIP), WPA2-PSK (TKIP), WPA2-PSK (AES), Open, Mixed mode |
| Subscriber QoS | WMM, DSCP, 802.1p |
| Network | NAT router or Bridge mode, DDNS, MAC address cloning, wired speed NAT Router, DHCP Server and Client, IP conflict detection, Port forwarding |
| Security | DMZ, Rate Limiting, Passthrough, Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS) |
| IP Signaling | SIP V2 (RFC3261/3262/3263/3264) |
|---|---|
| Voice CODEC | G.711 (A-law, µ-law), G.722,G.723, G.729 |
| FAX over IP | Real Time FAX over IP via T.38 T.30 Fax with G.711 |
| Voice Features | Adaptive jitter buffer management Voice activity detection Comfort noise generation Echo cancellation Interactive voice response |
| Call Features | 3-way conference Call hold, call forwarding, call transfer, call waiting Speed dial, Hotline, Dial plan Caller ID, Black list, Call log |
cnPilot™ r195 Series Wi-Fi Router
PL-R195WUSA-US r195W US type A P/S, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WEUA-EU r195W EU type C P/S, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WNPA-RW r195W No line cord, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WUKA-EU r195W UK type G P/S, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WINA-RW r195W India type D P/S, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WANA-RW r195W AUS/NZ type I P/S, 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195WARA-RW r195W Argentina type I P/S 802.11n/AC Dual Band 2×2 WLAN access point
PL-R195PUSA-US r195P US type A P/S, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PEUA-EU r195P EU type C P/S, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PNPA-RW r195P No line cord, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PUKA-EU r195P UK type G P/S, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PINA-RW r195P India type D P/S, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PANA-RW r195P AUS/NZ type I P/S, 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
PL-R195PARA-RW r195P Argentina type I P/S 802.11n/AC Dual Band 2×2 WLAN access point, ATA, 30 V power out
