cnPilot e600
- cnPilot e600 Wi-Fi 5 Indoor Access Point
- PL-E600X00A-RW support 802.11 a/b/g/n/ac Wave 2
- 2.4 GHz 2×2 & 5 GHz 4×4
- 2 x Gigabit Ethernet
- Standalone, Cloud managed cnMaestro

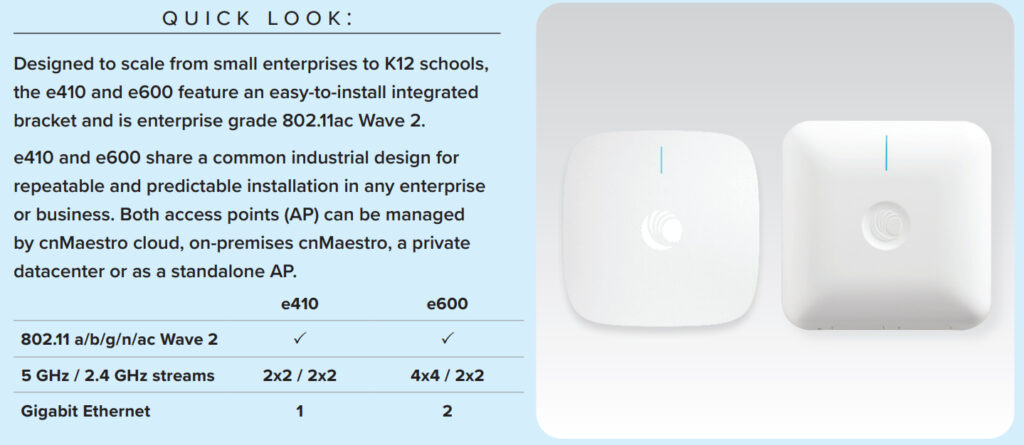

- Designed to scale from small enterprises to K12 schools, the e600 feature an easy-to-install integrated bracket and is enterprise grade 802.11ac Wave 2
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Cambium cnPilot e600 Wi-Fi 5 Indoor Access Point
Stay on top of the latest standards with the high-powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 e600 access point with a 4×4 antenna array
PL-E600X00A-RW Datasheet
| Radios | • 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 4×4 • 1 x 2.4 GHz (802.11 b/g/n), 2X2 • SU-MIMO / MU-MIMO: 4 streams |
| Wi-Fi | • 802.11 a/b/g/n/ac |
| SSID Security | • WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate | • 2.4 GHz: 400 Mbps • 5 GHz: 1733 Mbps |
| Ethernet | • One IEEE Gigabit Ethernet auto sensing |
| USB Ports | • 1 USB 2.0 port |
| Antenna | • Internal omni-directional • 2.4 GHz: 5.28 dBi • 5 GHz: 6.11 dBi |
| Max EIRP | • 2.4 GHz: 29.28 dBm • 5 GHz: 34.11 dBm (EIRP limited by country regulations) |
| WLAN | • 512 clients, 32 SSIDs (16 per radio) • WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF |
| Power | • 802.3af or 802.3at powered device • Typical load: 12 W, Max: 22 W • 2.1 mm 12 VDC barrel connector |
| Mounting | • Desktop, Wall, cieling tile mount – included T-bar mount 14 mm x 24 mm x 38 mm • Ceiling Tile mount included • Kensington lock slot |
| Dimensions | • 180 mm x 180 mm x 42mm |
| Weight | • 400 g |
| LEDs | • Single Tri-color LED (amber, blue, green) |
| Ambient Operation Temperature | • 0ºC to 50ºC |
| Storage Temperature | • -40ºC to 70ºC |
| Humidity | • 95% RH non-condensing |
| MTBF | • 1m hours |
| Certifications | • Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC62368, UL2043 |
