CMD-501
- CMD-501 Carbon monoxide control panel of 1 zone expandable up to 3 zones
- UNE 23300:1984 approved
- LOM 08MOGA3532 certificate
- Modular and expandable system
- Concentration indication per zone
- 2 extraction relay outputs per zone
- 1 alarm relay output per zone
- Up to 32 detectors per zone
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×
Detnov CMD-501 Carbon monoxide control panels
- The CMD-501 carbon monoxide detection system has been designed for use in car parks where CO can accumulate. This system is certified according to the UNE 23300:1984 regulation, which fulfils the requirements of Spanish Royal Decree 2367/1985 and the Spanish Technical Building Code [Código Técnico de Edificación].
- The range of CMD-501 carbon monoxide control panels is made up of 3 models: 1, 2 and 3 zones are available to cover all the requirements of small and large installations.
- Each module includes a display showing the CO concentration of the zones. Each of them can control the air renewal group manually or automatically. The automatic control lets you work in an advanced mode in which the overall system’s power consumption is reduced. In order to obtain this reduction, the module performs algorithms to minimize the air renewal output activations by taking the individual measurement of each detector in the zone.
- Each zone module lets you connect up to 32 DMD-500 or DMDP-500 carbon monoxide detectors. The connection to the module is done through 2 wires, the detectors may be distributed along 2,000 meters in length and each detector covers 200 m2; this value is defi ned as the maximum surface in current legislation.
- The CMD-501 system can control a speed regulator through the optional TRMD-500 card. The speed regulator control is focused on minimizing the power consumption of the overall system, and also reduces the noise level of the air renewal group.

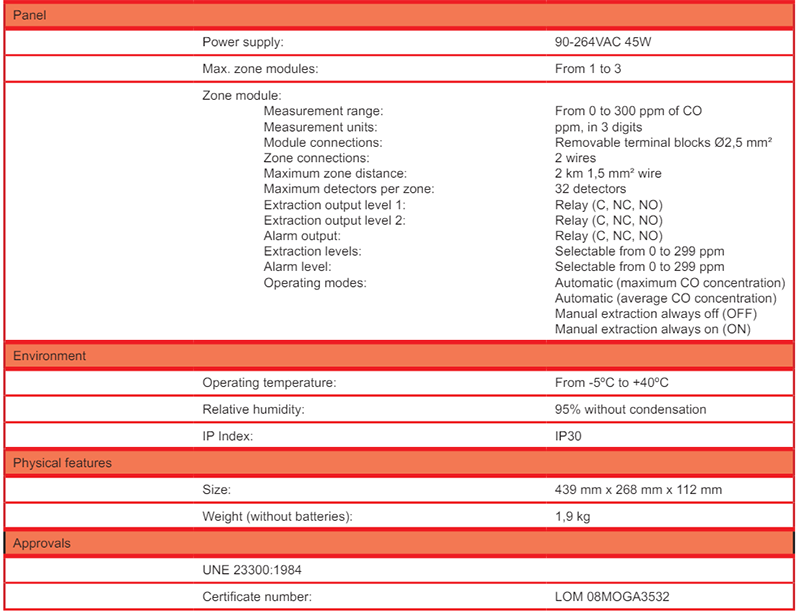

CMD-501 Datasheet
- UNE 23300:1984 approved
- LOM 08MOGA3532 certificate
- Modular and expandable system
- 1, 2 and 3 zones per panel
- Concentration indication per zone
- 2 extraction relay outputs per zone
- 1 alarm relay output per zone
- Up to 32 detectors per zone
- Two-wire connection without polarity
- Operating mode for low power consumption
- Control option per speed regulator
- Multi-language keyboard
Applications for CMD-501
Its main application is to activate ventilation systems in car parks or garages, either in a community of neighbors or in large areas.
If you breathe, even in moderate amounts, carbon monoxide can cause death from poisoning in a few minutes, as it sistitutes to oxygen in the blood’s hemoglobin.
The air renewal in those spaces where there is a high concentration of combustion vehicles is essential to detect the concentration of carbon monoxide in order not to have an intoxication with this gas.
