CAP300
- Hardware wireless controller enable administrators to easily manage hundreds of CAPs
- Support Power over Ethernet (802.af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- FAT/FIT mode switchable provides a range of network possibilities
Ms Nhan:
- Kinh Doanh
Mr Minh: - Kinh Doanh
Mr Luân: - Kinh Doanh
WhatsApp: - Tư Vấn Giải Pháp
Facebook: - Hỗ Trợ Đơn Hàng
Sales Engineer: - 0989 544 978
Hotline: 0933 719 613
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978×

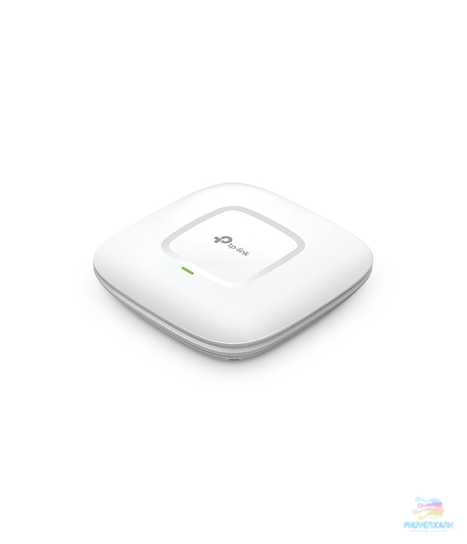

CAP300 with 300Mbps Wireless N Ceiling Mount Access Point
The businesses of today are demanding ever greater flexibility and security from their wireless networks to keep up in a world where things move fast. TP-Link’s new Auranet CAP series delivers that and more. CAP access points work together with Auranet Wireless Controllers to provide scalable solutions with exceptional Wi-Fi performance and easy deployment.
Datasheet CAP300
| Giao diện | Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE） |
|---|---|
| Khóa bảo mật vật lý | Kensington Lock Slot |
| Nút | Reset, FIT/FAT |
| Bộ cấp nguồn | PoE or external 9VDC/0.6A power supply |
| Điện năng tiêu thụ | 5W |
| Chuẩn Wi-Fi | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Kích thước ( R x D x C ) | 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) |
| Ăng ten | Internal 2* 3dBi Omni |
| Lắp | Ceiling /Wall Mounting (Kits included) |
| Watch Dog | Yes |
| Chuẩn Wi-Fi | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Băng tần | 2.4-2.4835GHz |
| Tốc độ tín hiệu | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Công suất truyền tải | CE: <20dBm FCC: <26dBm |
| Tính năng Wi-Fi | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
|---|---|
| Bảo mật Wi-Fi | Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Tính năng Wi-Fi | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
|---|
| Tính năng Wi-Fi | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) WMM Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Load Balance |
|---|---|
| Bảo mật Wi-Fi | Captive Portal Authentication Access Control Mac Address Authentication Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Chứng chỉ | CE, FCC, RoHS |
|---|---|
| Sản phẩm bao gồm | 300Mbps Wireless N Ceiling Mount Access Point CAP300 Power Adapter Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Môi trường | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
