AltaiGate 210
• Best value in price/performance – Support up to 200 APs and 4,000 client devices at an affordable cost
• Ease of Use – Web-based configuration interface allows Wi-Fi network to be set up quickly; Altai Super WiFi APs can discover the AltaiGate automatically.
• Smart Access Services – Smart access features like hotspot, guest access, social media login such as Facebook and Google allow quick setup for secured access or easy monetization of hotspot services.
• Intelligent network security – Easily integrate with any enterprise authentication infrastructure already in place.
• Advanced RF management – Advanced RF management features including rogue AP detection, auto channel, and TX
power control.
• Flexible deployment – Support centralized and distributed forwarding architectures for flexible deployment.
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978AltaiGate 210 Smart WLAN Controller
With a central processor that employs up to four cores, each with two threads, the AltaiGate 210 is like having a total of 8 virtual CPUs. Its powerful hardware allows it to manage up to 200 Altai Super WiFi access points and 4,000 client devices from a single location.
Ease of use is the main design goal of AltaiGate 210. An entire Wi-Fi network can be set up quickly via its web-based configuration interface; furthermore, it can be deployed within any Layer 2/3 network. Altai Super WiFi access points then automatically connects to the AltaiGate. As a result, Wi-Fi network deployment can be done in a truly plug-and-play manner.

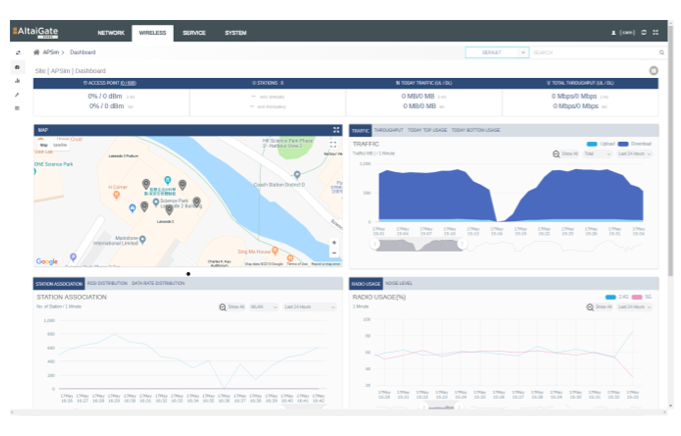

Once up and running, the AltaiGate 210 automatically manages the Wi-Fi network. Configuration changes can be applied to multiple APs or the entire network. Moreover, a customizable dashboard provides a comprehensive network snapshot and allows IT staffs to trouble-shoot any problems easily.

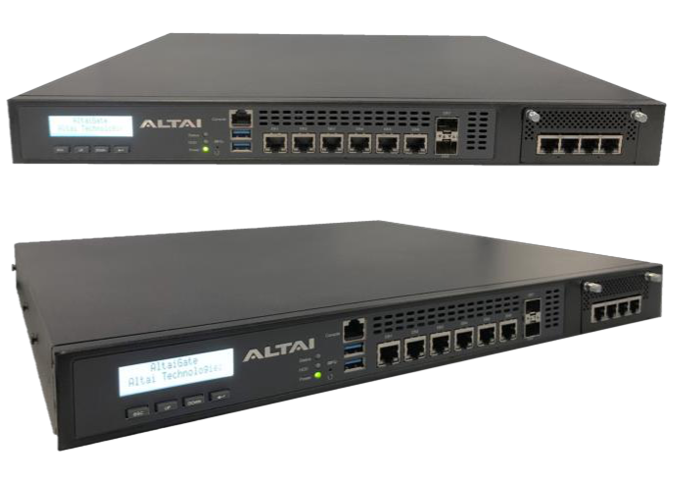

Service Controller AltaiGate 210
The AltaiGate 210 supports enterprise-grade 802.1x with any backend authentication databases such as RADIUS. Secure access services are provided via hotspot and guest networking services, role-based user policies, and per-user rate-limiting.

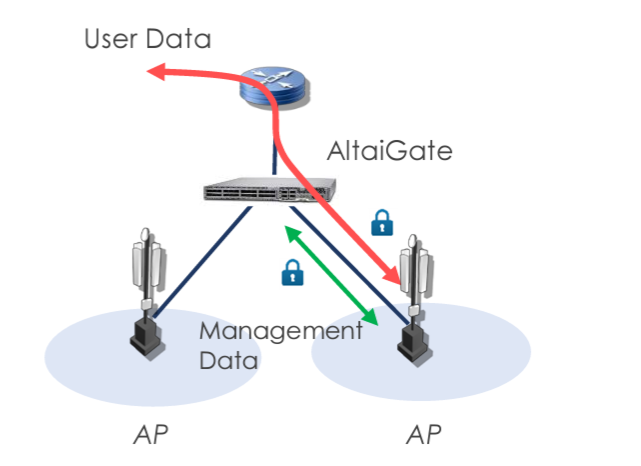

Both centralized and distributed forwarding architectures are supported by AltaiGate 210.
Key Features and Benefits
• Best value in price/performance Support up to 200 APs and 4,000 client devices at an affordable cost.
• Ease of Use Web-based configuration interface allows Wi-Fi network to be set up quickly; Altai Super WiFi APs discover the AltaiGate automatically.
• Smart Access Services Smart access features such as hotspot, guest access, social media login such as Facebook and Google allows quick setup for secured private network access or easy monetization of hotspot services.
• Intelligent network security Support enterprisegrade 802.1x with any backend authentication databases such as RADIUS and Active Directory.
• Advanced RF management Support advanced RF management features such as rogue AP detection, auto channel, and TX power control.
• Flexible deployment Support centralized and distributed forwarding architectures maximizes deployment flexibility.
AltaiGate 210 Datasheet
Physical Specifications
• Dimensions 1RU: 438 mm (W) x 422 mm (D) x 44 mm (H)
• Weight 9.0 kg
• Power 250W AC Power Supply or 300W 1+1 Redundant AC Power Supply
• Network Interface 4 x 1GbE ports (data) 1 x 1GbE port (management) 1 x 1GbE port (high availability)
• Op. Temperature 0 ºC to 40ºC
• Storage Temperature -20 ºC to 70ºC
• Humidity 5 to 90%
Capacity
• Managed APs 200 (Max.)
• WLANs 1,000 (Max.)
• Concurrent Clients 4,000 (Max.)
Network Architecture
• Centralized Supported
• Local Breakout Supported
Networking
• IP IPv4 and IPv6 dual-stack*
• Routing OSPF*
• VLAN 802.1q Dynamic VLAN*
• DHCP Server Supported
• Redundancy 1 + 1 with auto-synchronization
AP Management
• Interface Web CLI SNMP v2, v3*
• AP Provisioning Batch provisioning Configuration checking Auto software upgrade
• Historical Report Supported
• RF Management Auto channel selection* Auto power control* Interference detection* Client load balancing*
Access Services
• Hotspot Hotspot 2.0* WISPr*
• Captive Portal Guest Login Social Login (Facebook and Google) User Sign-Up Prepaid / Subscription Login
• CoA Supported*
• Monthly User Report Supported*
Quality of Service
• 802.11e/WMM Supported
• Traffic Prioritization TOS-based VLAN-based
• Bandwidth Control Per user Per WLAN
Security
• Standards WPA WPA2 802.11i
• Encryption WEP TKIP AES
• Authentication 802.1x MAC address-based
• User Database Internal External: RADIUS, Active Directory
• User Access Control L2 (MAC address-based) L3/4 (IP and protocol-based) L2 client isolation
• WIPS Rogue AP detection* DoS attack prevention* AP spoofing detection* Ad hoc detection* Password guessing protection*
Wireless Standards
• IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11r, 802.11k, 802.11v, 802.11d, 802.11e, 802.11u*
Certification
• CE / FCC / Others
• RoHS2 Compliance
Product Ordering Information
AltaiGate 210 (Part No.: SD.GA-0210-00)
• AltaiGate 210 with 1+1 Redundant AC power supply, licensed for up to 50 Altai access points (with AP license upgrade, can support up to 200 APs)
