Altai 2.4Ghz 15dBi Sector 120º Antenna
Altai 2.4Ghz 15dBi Sector 120º Antenna For A2 and C1xn Access of Altai Technologies have been designed specifically to maximize the signal quality and performance in the professional Altai 2.4Ghz 15dBi Sector 120º Antenna to accomplish the best WiFi connectivity with the high reception sensitivity. Are made of with the most resistant materials y best quality to support any outdoor installation.
Zalo:
- Kinh Doanh OnlineWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Electrical Specifications
• Frequency Range 2.4 – 2.5 GHz
• Gain 15 dBi
• Polarization Dual Slant ±45°
• Horizontal Beamwidth 120º (-6 dB), 85º (-3 dB)
• Vertical Beamwidth 11º (-6 dB), 8º (-3 dB)
• Side Lobes Level -10 dB (Max.)
• VSWR 2 (Max.)
• Front-to-back Ratio -25 dB (Max.)
• Isolation 20 dB (Min.)
• Impedance 50 Ω
• Lightning Protection DC Ground
Environmental and Mechanical Specifications
• Temperature -40 °C to +80 °C
• Humidity 95% at 55°C
• Wind Loading Up to 216 km/h (134 mph)
• Radome Color Gray
• Radome Material ABS, UV Resistant
• Weight 2.3 kg
• Dimensions 806 x 122 x 57 mm
• Connector 2 x N-female
• Mechanical Downtilt +22/-17° (Max.)

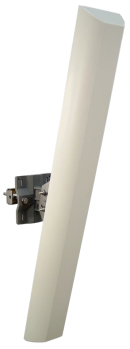

2.4 GHz 15 dBi Sector Antenna For A2 and C1xn Access
Product Ordering Information
• 2.4 GHz 15 dBi Sector Antenna (Part No.: SD.AN-2S15-00) Contact Us
