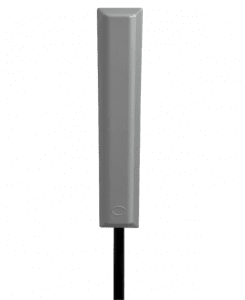

Altai 2.4Ghz 15dBi Sector 100º Antenna
Altai 2.4Ghz 15dBi Sector 100º Antenna of Altai Technologies have been designed specifically to maximize the signal quality and performance in the professional Altai 2.4Ghz 15dBi Sector 100º Antenna to accomplish the best WiFi connectivity with the high reception sensitivity. Are made of with the most resistant materials y best quality to support any outdoor installation.
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Electrical Specifications
• Frequency Range 2.4 – 2.5 GHz
• Gain 15 dBi
• Polarization Dual Linear (V and H)
• Horizontal Beamwidth 100º (-6 dB)
• Vertical Beamwidth 9º (-3 dB)
• VSWR 2 (Max.)
• Front-to-back Ratio -23 dB (Max.)
• Isolation 25 dB (Min.)
• Impedance 50 Ω
• Lightning Protection DC Ground
Environmental and Mechanical Specifications
• Temperature -40 °C to +60 °C
• Humidity 5 – 95% (Non-Condensing)
• Wind Loading Up to 216 km/h (134 mph)
• Radome Color Gray
• Radome Material ABS, UV Resistant
• Weight 2.5 kg
• Dimensions 700 x 140 x 50 mm
• Connector 2 x RP-SMA
• Mechanical Downtilt +10/-3° (Max.)
Product Ordering Information
2.4 GHz 15 dBi Sector Antenna (Part No.: SD.AN-2S15-01)
• C1xn+ Mounting Bracket
• 2 x RF Cable
• Pole Mount Accessories
Contact Us
• Email: luan@phuyenxanh.vn

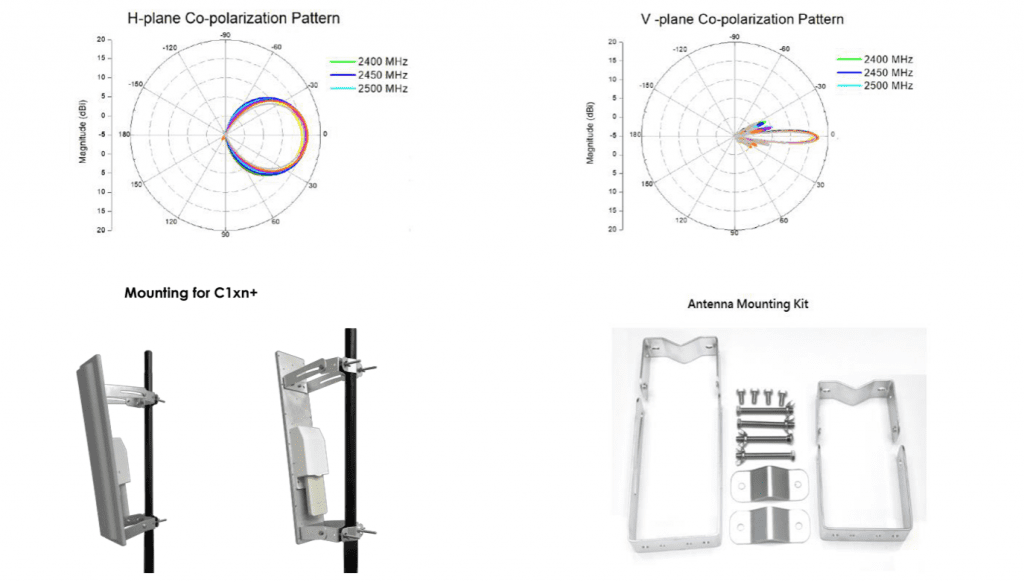

Mounting Scenario
