A8n (ac)
• 8 antenna ports for 4 dual-slant sector antennas, providing flexible 90° to 360° coverage
• 8×8 MIMO combined with Altai’s proprietary smart antenna technology for the best available uniform large-area coverage
• The multiple antennas of A8n series can be configured to provide coverage that is optimized for area, pattern and elevation
• Provides up to 3 times the range and 10 times the area of coverage as compared to standard access points
• 50 cm co-location with 3G/4G cell sites on a single-pole
• Up to 300 Mbps (access) plus 867 Mbps (access/backhaul for ac model) /300 Mbps (access/backhaul for n model) capacity per base station
• Extended reach, with up to a 30 km backhauling range
• Fast and simple installation using a single-pole mount for radios and antennas
• Altai’s AirFi technology for higher capacity and efficiency per WiFi channel
- Kinh Doanh
Mr Minh:
- Kinh Doanh
Mr Luân:
- Kinh DoanhWhatsApp:
- Tư Vấn Giải PhápFacebook:
- Hỗ Trợ Đơn HàngSales Engineer:
- 0989 544 978Altai A8n (ac) Super WiFi Base Station - 802.11ac Flexible Large Area Outdoor Wi-Fi

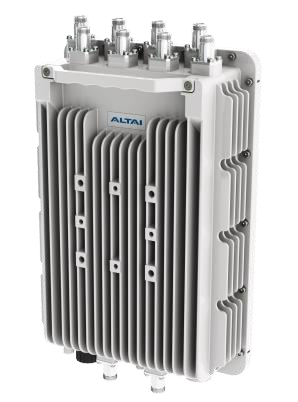

Altai A8n (ac) Super WiFi Base Station
The world’s leading 802.11n WiFi outdoor access point optimized for maximum coverage and highest throughput from a minimum number of installation sites. It is the A8n model with the 5 GHz radio upgraded to 802.11a/n/ac standards.
The A8n (ac) is a multi-radio base station utilizing 8×8 MIMO smart antenna technologies and a patented signal processing algorithm to provide the industry’s best coverage per base station, especially in non-line-of sight (NLOS) environments. The multiple antennas of the A8n (ac) can be configured to provide coverage that is optimized for area, pattern and elevation. The multi-beam antennas of the A8n (ac) is designed to provide up to 3 times the range and 10 times the per site coverage as standard access point. Accordingly, up to 90% fewer installation sites for the same coverage area.
Super Long Range High Throughput Coverage
| Max. LOS CPE | 3 km (2.4 GHz) 2 km (5 GHz) |
| Max. LOS Smartphones | 1 km (2.4 GHz) 900 m (5 GHz) |
| Max. LOS Backhaul | 30 km (5 GHz) |
| Max. Data Rate | 300 + 867 Mbps |
Altai A8n for Wireless Broadband
The Altai A8n (ac) can serve as last mile infrastructure for a wide range of wireless broadband access applications. It provides low deployment cost and fast provisioning of Wi-Fi systems with the greatest coverage and bandwidth per installed base station.
Altai A8n (ac) for Super 3G/4G Offload
The A8n (ac) Super WiFi Base Station can be deployed in conjunction with existing 3G networks to provide low cost high bandwidth mobile data offloading solution. The A8n can be co-located with existing 3G cell sites allowing immediate Wi-Fi provisioning at much lower acquisition and operating costs.
As an integral part of our Super WiFi network infrastructure, key benefits of the Altai A8n (ac) include:
- Extended coverage in a Non-Line-of-Sight (NLOS) environment which matches the foot print of most 3G/LTE deployments in dense urban environments
- High 11ac throughout capacity up to 1,167 Mbps data rate
- 4-sector x dual slant advanced Smart Antenna Technology provides flexible 70 to 360-degree and large vertical beamwidth coverage with minimal holes in dense urban environments
- Multi-radio 8×8:2 MIMO platform maximizing both uplink/downlink performance and access redundancy
- 2.4 GHz and 5 GHz dual band concurrent access
- Backhaul redundancy and access link safe mode
- Adaptive interference control mitigates the influence from surrounding interfering sources
- Standard 802.11b/g/n access and 802.11a/n/ac access/ backhaul
- Giga Ethernet or integrated 802.11a/n/ac wireless backhaul
- Remote configuration through the Altai Wireless Management System (AWMS) or AltaiCare network management solution
Altai A8n ac Datasheet
Wireless Interfaces
802.11b/g/n (8×8:2) Radio
• Operating Mode: Access Point
• Standard: IEEE 802.11b/g/n
• Operating Frequency: 2.400 – 2.484 GHz (Ch 1-13)
• Transmit Power: 27 dBm (Max.); 5 – 24 dBm (Per Chain) in 1 dB step
• Receiver Sensitivity (Typical):
802.11b 11 Mbps -90 dBm; 1 Mbps -95 dBm 802.11g 54 Mbps -80 dBm; 6 Mbps -93 dBm 802.11n HT20 -94 dBm; HT40 -89 dBm
• Connect up to 8 Antennas
• Interference Mitigation
802.11a/n/ac (2×2:2) Radio
• Operating Mode: AP/Bridge/Repeater
• Standard: IEEE 802.11a/n/ac
• Operating Frequency: 5.150 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz
• Transmit Power: 29 dBm (Max.) 26 dBm (Per Chain)
• Receiver Sensitivity (Typical):
802.11a 54 Mbps -79 dBm; 6 Mbps -92 dBm 802.11n HT20 -92 dBm; HT40 -89 dBm 802.11ac VHT20 -92 dBm; VHT40 -89 dBm VHT80 -87 dBm
For both 2.4 and 5 GHz
• 32 SSID (16 SSID per Radio)
• WMM, 802.11h, 802.11k, 802.11r, 802.11v, 802.11w
• Passpoint (Release 2)
• Fast Roaming
• Band Steering
• Dual Radio Redundancy
• 1+ N Redundancy
• Auto Channel Selection and TX Power Control
• Bandwidth Control Per SSID/Client
• Altai AirFi™ Throughput Optimization
Antennas
2.4 GHz Antenna
• External Antenna 14 dBi (Max.) Sector
• Frequency 2.4 – 2.5 GHz
• Polarization Dual Slant ±45°
• Horizontal Beamwidth 70° (-3 dB)
• Vertical Beamwidth 12° (-3 dB)
• Antenna Connector 8 x N-Female
5 GHz Antenna (Optional Accessories)
• External Antenna 20 dBi Panel/9 dBi Omni/ 16 dBi 100º Sector
• Antenna Connector 2 x N-Female
Networking
• Switch (Bridge) and Gateway Mode
• IPv4/IPv6 Dual-Stack
• NAT
• DHCP Client/Server
• PPPoE Client
• Soft-GRE
• VLAN
• Multicast Rate Filter/IGMP Snooping
Security
• Authentication – Open, Shared key, WPA/WPA-PSK, WPA2/WPA2PSK, WPA3*, 802.1x (EAP-PEAP/TLS/TTLS/SIM/AKA)
• Encryption – WEP, TKIP, AES
• Inter/Intra-SSID Client Isolation
• MAC-based Access Control (White/Black List)
• RADIUS/Active directory
• Dynamic VLAN Assignment
• Firewall
• WIDS/WIPS
• Broadcast/Multicast/Unicast Flooding Control
Management
• Management Platforms: AltaiGate, AltaiCare, AtlaiCare Appliance
• Web User Interface
• Command Line Interface (SSH)
• Remote Factory Reset
• Trusted Management IP List
• SNMP v1/v2c/v3
• MIB2/IF-MIB/Altai Enterprise MIB
• Syslog • Spectral Analysis*
• KPI Monitoring*
• Client OS and Hostname Detection
Physical Specifications
• Dimension: 360 x 234 x 80 mm (Chassis)
• Weight: 4 kg (Unit Weight) 6.5 kg (Gross Weight)
• Mounting Pole or Wall-mounted
• Network Interface: 10/100/1000 Mbps Ethernet Port
Power
• Power Supply: 56V Passive PoE PD
• Power Consumption: 30 W (Typical)/65 W (Max.)
Environmental Specifications
• Operating Temperature: -40 °C to +60 °C (Ambient)
• Storage Temperature: -40 °C to +85 °C
• Humidity: Up to 95% (Non-Condensing)
• Lightning Protection EN 61000-4-5
• Wind Loading Up to 216 km/h (134 mph)
• Weatherproof IP67 Compliant
Certifications
• FCC/CE/Others*
• RoHS Compliance
Product Ordering Information
A8n(ac) (Part No.: SD.A8-NAC0-00)
Standard Package
• A8n (ac) Super WiFi Base Station (Model No.: WA8011NAC-X)
• Mounting Kit
Antennas:
• Smart Antennas and RF Cables
Optional Accessories
• 56 VDC Passive PoE Injector
